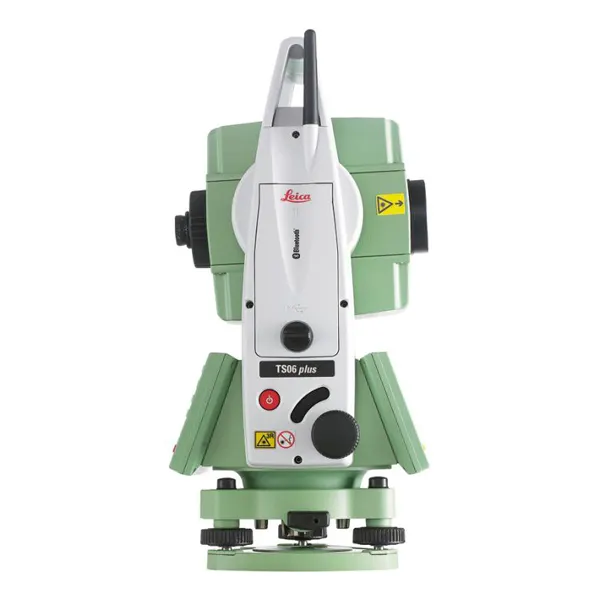

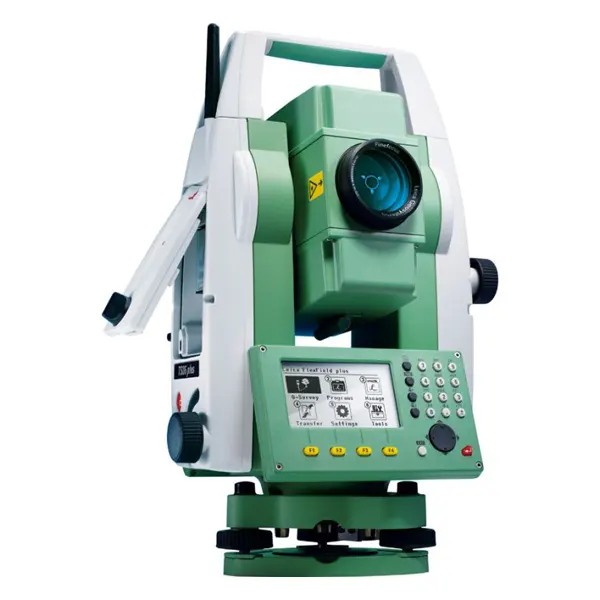

Leica FlexLine TS06 Plus Total Station
$2,900
In Stock
- Manufacturer: Leica
- Model: FlexLine TS06 Plus Total Station
- Included: Leica TS06 Plus Total Station, Leica GKL311 Battery Charger w/ AC Adapter, Leica Charging Cable, Leica GMP111-0 Prism, Leica Rain Cover, QTY. 4 Extension Rods, Leica FlexLine Plus Quick Guide, Polishing Cloth, DC Car Charger, QTY. 2 Battery Packs, Lens Hood Protector, Hard Carrying Case, Charger GKL311, Leica Data Cable, Lens cover +Rain cover, Manual, Tribrach , Li-Ion rechargeable battery
Description
Leica FlexLine TS06 Plus Total Station delivers measurements that are extremely precise from a selection of Electronic Distance Measurements (EDM) options. Leica FlexLine TS06 Plus Total Station designed for applications of medium accuracy it comes with the easy setup with a laser plummet and guided process at start-up. The ergonomic key layout and large display provides error-free data input and makes operation simple.
Leica FlexLine TS06 Plus Total Station include a built-in easy to use an alphanumerical keyboard for fast entry of numbers, special characters, and numbers. This not only increases speed and productivity but also minimizes errors.
Leica FlexLine TS06 Plus Total Station Communication Side Cover allows for connections to any data collector via a cable-free Bluetooth connection. It is ideally used with Leica Viva CS10 or Leica CS15 using SmartWorks software.
Leica FlexLine TS06 Plus Total Station Features:
- USB Stick
- Wireless Bluetooth
- Electronic Guide Light
- FlexField plus
- Useful tools
- PinPoint EDM
- Alpha-numerical keyboard
- Large high- resolution display
- Arctic version
- mySecurity
Leica FlexLine TS06 Plus Total Station Included:
- Leica TS06 Plus Total Station
- Leica GKL311 Battery Charger w/ AC Adapter
- Leica Charging Cable
- Leica GMP111-0 Prism
- Leica Rain Cover
- QTY. 4 Extension Rods
- Leica FlexLine Plus Quick Guide
- Polishing Cloth
- DC Car Charger
- QTY. 2 Battery Packs
- Lens Hood Protector
- Hard Carrying Case
- Charger GKL311
- Leica Data Cable
- Lens cover +Rain cover
- Manual
- Tribrach
- Li-Ion rechargeable battery
You may also be interested in Leica FlexLine TS09 plus Total Station
Leica FlexLine TS06 Plus Total Station Specifications:
| Angle
Measurement (Hz, V) |
|
| Accuracy (Standard deviation
ISO-17123-3) |
5” (1.5 mgon) |
| Method | Absolute, continuous, diametrical |
| Display resolution | 0.1” / 0.1 mgon / 0.01 mil |
| Compensation | Quadruple axis compensation
(Setting On, Off) |
| Compensator Setting accuracy | 0.5”, 1”, 1.5” |
| Distance
Measurement with Reflector |
|
| Range Round prism GPR1 | 3’500 m |
| Range Reflective tape (60 mm x
60 mm) |
250 m |
| Accuracy / Measurement time
(Standard deviation ISO-17123-4) |
Standard: 1.5 mm+2 ppm / typ.
2.4 s, Fast: 3 mm+2 ppm / typ. 0.8 s, Tracking: 3 mm+2 ppm / typ. <0.15 s |
| Distance
Measurement without Reflector |
|
| Range (90% reflective)
FlexPointPinPoint – Power PinPoint – Ultra |
30 m
> 400 m (optional) > 1000 m (optional) |
| Accuracy / Measurement time
(Standard deviation ISO-17123-4) |
2 mm+2 ppm2 / typ. 3 s |
| Laser dot size | At 30 m: approx. 7 mm x 10 mm,
At 50 m: approx. 8 mm x 20 mm |
| Data
storage / Communication |
|
| Extended Internal memory | Max.: 100’000 fixpoints, Max.:
60’000 measurements |
| USB memory stick | 1 Gigabyte, Transfer time 1’000
points/second (optional) |
| Interfaces | Serial (Baudrate 1’200 to
115’200) USB Type A and mini B, Bluetooth® Wireless (optional) |
| Data formats | GSI / DXF / LandXML / CSV / user
definable ASCII formats |
| Electronic
Guide Light |
|
| Working Range
(average atmospheric conditions) Positioning accuracy |
5 m – 150 m (optional)
5 cm at 100 m (optional) |
| General | |
| Telescope | |
| Magnification | 30 x |
| Resolving power | 3” |
| Field of view | 1° 30’ (1.66 gon) / 2.7 m at 100
m |
| Focusing range | 1.7 m to infinity |
| Reticle | Illuminated, 5 brightness levels |
| Keyboard
and Display |
|
| Display | Graphics, 160 x 280 pixels,
illuminated, 5 brightness levels |
| Keyboard | Alpha-numerical keyboard
Second keyboard (optional) |
| Operating
System |
|
| Windows CE | 5.0 Core |
| Laserplummet | |
| Type | Laser point, illuminated, 5
brightness levels |
| Centering accuracy | 1.5 mm at 1.5 m Instrument height |
| Battery | |
| Type | Lithium-Ion |
| Operating time | approx. 20 hours |
| Weight | |
| Total station including GEB211
and tribrach |
5.1 kg |
| Environmental | |
| Temperature range (operation) | -20° C to +50° C (-4° F to +122°
F)Arctic Version -35° C to 50° C (-31° F to +122° F) (optional) |
| Dust & splash proof (IEC
60529) |
IP55 |
| Humidity | 95%, non condensing |
