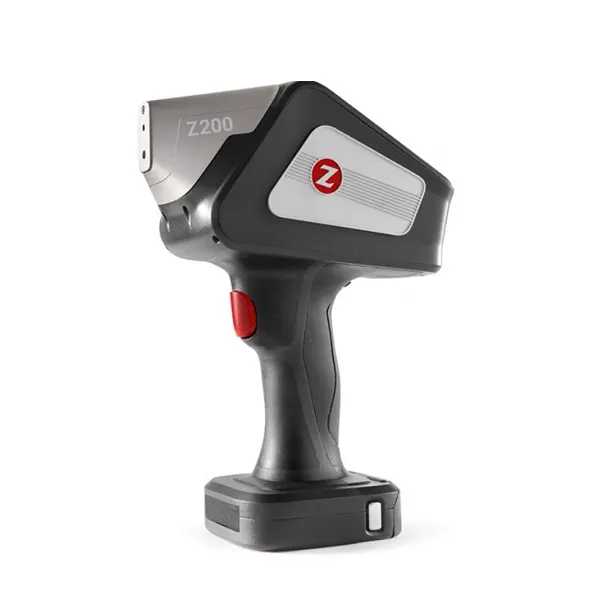

Sciaps Z-200 C+ LIBS Analyzer
$4,100
In Stock
- Manufacturer: Sciaps
- Model: Z-200 C+
- Included: Hard Transport Case, 2 Lithium Ion Batteries, Smart Charging System, Cartridges, Data Cable
Description
Sciaps Z-200 C+ LIBS Analyzer is a dedicated analyzer for alloy analysis including carbon content. It analyzes carbon content in stainless, down to 0.007 percent, for dependable separation of L and H grades. The C+ also analyzes carbon steels, including carbon equivalents (CE) for weldability.
The Z-200 C+ Sciaps LIBS Analyzer is available in two versions. Comes with iron-base calibrations including carbon. It includes both iron and stainless bases and carbon. The additional bases may be added at time of purchase or any later date. Following in the tradition of our defy-obsolescence principle, any Z-200 or Z-200 C may be upgraded to the Z-200 C+ Libs Analyzer at any time for the price difference.
Sciaps Z-200 C+ LIBS Analyzer Features:
- Non destructive Testing (NDT)
- PMI ( Positif Material Identification)
- FAC (Flow Accelerated Corrosion)
- Corrosion
- Sulfidation
- Residual and Traces Elements
Sciaps Z-200 C+ LIBS Analyzer Included:
- Hard Transport Case
- 2 Lithium Ion Batteries
- Smart Charging System
- Cartridges
- Data Cable
Sciaps Z-200 C+ LIBS Analyzer Specifications:
| Weight | 4 lbs with battery |
| Dimensions | 8.25″ x 11.5″ x 4.5″ |

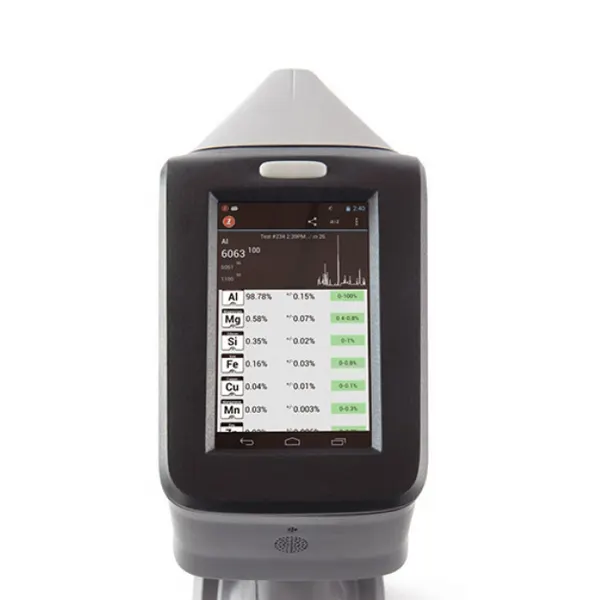

| Display | 5″ color touchscreen Smartphone type display – PowerVR SGX540 3D graphic |
| Sample viewing | On-board camera/video for viewing sample before, during analysis, laser spot finder to show where laser strikes sample. |
| Auto-focus | Z-direction stage, computer controlled for manually or automatically adjusting laser focus location on sample. Essential for liquids analysis. |
| Comms/Data Transfer | Wifi, Bluetooth, USB. Connectivity to most devices, including SciAps Profile Builder PC software. |
| Available Apps | Alloy, Geochem (Mining), Empirical, Environmental Apps. New Apps are added regularly please check with company or website. |
| Excitation Source | 5-6 mJ/pulse, 50 Hz repetition rate, 1064 nm laser source |
| Processing Electronics | ARM Cortex -A9 dual-core / 1.2 GHz Memory: 1 GB DDR2 RAM, 1 GB NAND |
| Spectral Data Acquisition | Spectral data collected in either ungated or gated operation, with user settable gate delays |
| Sciaps Z-200 C+ LIBS Analyzer Laser Raster | On-board XY stage for rastering laser to discrete locations for targeted analysis or averaging. Raster pattern up to 16 x 16 grid, 256 locations. |
| Calibration Check | Internal shutter is also 316 stainless for totally automated calibration and wavelength scale validation. |
| Power | On board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power. |
| Drift Correction | Only needed for higher accuracy analysis (argon purge). Automated drift correction using factory provided or user provided reference materials. |
| Grade library (alloy) | 500+ grades, multiple libraries supported, grades may be added on analyzer or via PC software package (ProfileBuilder). |
| Data Storage | Results Storage: 8 GB SD |
| Sciaps Z-200 C+ LIBS Analyzer Security | Password protected usage (user level) and internal settings (admin). |
| Regulatory | CE, RoHS, USFDA registered. Class 3b laser. Sample sensor on-board, allows for operation under Class 1 conditions, subject to local LSO approval. CE, RoHS, USFDA registered. |
