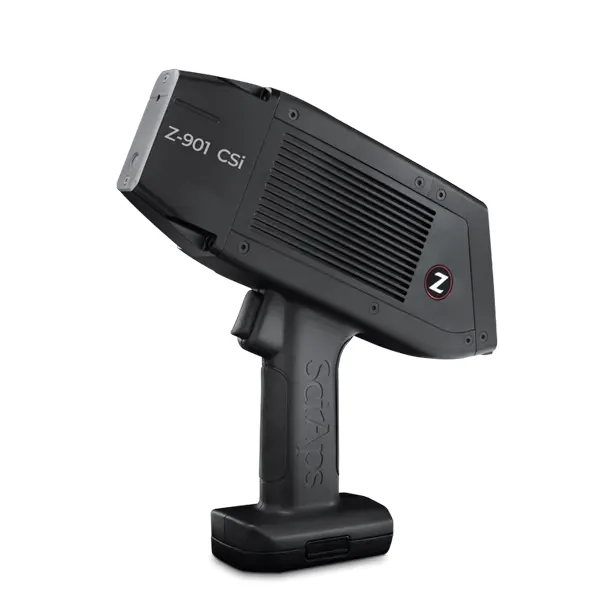

Sciaps Z-901 CSi LIBS Analyzer
$4,600
In Stock
- Manufacturer: Sciaps
- Model: Z-901 CSi
- Included: Z-901 CSi Analyzer Unit, On-board Argon System, Dual Cameras, Software & Processing, Opti-Purge System, Calibration Standards
USB for data transfer and cloud data management, Batteries, Charger, Protective carrying case
Description
Sciaps Z-901 CSi LIBS Analyzer is designed specifically for measuring carbon (C) and silicon (Si) in steels and stainless steels. It is the smallest and lightest analyzer of its kind, offering a portable, cost-effective solution for Positive Material Identification (PMI), NDT, and carbon equivalent (CE) calculations, particularly when complementing existing XRF tools.
The CSi is the perfect tool for operators who own XRF and need the occasional carbon measurement. It delivers fast, reliable carbon results to complement XRF tests, at a lower cost than the full LIBS system for carbon plus alloys. And SciAps cloud-driven data merging and report generation bring it all together in one report.
Sciaps Z-901 CSi LIBS Analyzer Features
- Carbon & Silicon Specialization: Engineered specifically to measure Carbon and Silicon, making it ideal for verifying L- and H-grade stainless steels.
- Argon Purge System: Utilizes user-replaceable argon canisters to provide the necessary atmosphere for high-precision carbon analysis.
- Performance & Portability: Weighs only 3.87 lbs (1.75 kg) with the battery.
- Optics: Features a 190-420 nm spectral range designed for crucial C and Si emission lines.
- User Interface & Data: Runs on Android with a 2.7-inch color touchscreen. Includes built-in Wi-Fi, Bluetooth, GPS, and USB-C for data management and report generation.
- Rugged Design: Features a narrow, tapered snout for testing difficult-to-access locations like welds.
- Safety: Equipped with a laser safety sample sensor that allows for Class 1 operation (subject to local LSO approval).
- Hardware: Powered by an ARM Quad Cortex-A53 1.2GHz processor with 2GB LPDDR3 and 16GB eMMC storage.
Sciaps Z-901 CSi LIBS Analyzer – What is Included
- Sciaps Z-901 CSi Analyzer Unit
- On-board Argon System
- Dual Cameras
- Software & Processing
- Opti-Purge System
- Calibration Standards
- USB for data transfer and cloud data management.
- Batteries
- Charger
- Protective carrying case
Sciaps Z-901 CSi LIBS Analyzer Application
| Model | Range (nm) | Best Application |
| Z-901
|
200 – 420
|
General alloy testing for scrap sorting, PMI/NDT or quality assurance. Does not measure carbon. |
| Sciaps Z-901 CSi LIBS Analyzer
|
190 – 260
|
Analyzes carbon and silicon only. The perfect complement to your XRF. |
| Z-901 Li
|
380 – 680
|
Purpose built for lithium in soils, ores and rocks. |
Sciaps Z-901 CSi LIBS Analyzer Specifications
| Weight | 4.35 lbs. (1.97 kg) with battery
|
| Dimensions | 10.75 x 2.875 x 8.625 inches
|
| Display | 2.7-inch high-brightness color touchscreen, readable in all conditions. Rear-facing display for easy results viewing.
|
| Sciaps Z-901 CSi LIBS Analyzer Power | On board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.
|
| Connectivity | Built on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C to connect to virtually any information management system.
|
| Sciaps Z-901 CSi LIBS Analyzer Security | Password protected. Multi-user support with configurable access.
|
| Regulatory | CE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions subject to local LSO approval.
|
| Processing Electronics
|
ARM Quad Cortex -A53 1.2GHz memory: 2 GB LPDDR3, 16 GB eMMC
|
| Data Storage
|
Results Storage: 32 GB SD
|
| Spectral range
|
190-420 nm
|
| Calibrations | Aluminum: Be, Mg, Al, Si, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, Zr, Pb, Bi, Ag, Sn
Titanium Base: Al, Ti, V, Cr, Fe, Cu, Zr, Nb, Mo, Sn LAS Base: C, Al, Si, Ti, V, Cr, Mn, Fe, Cu, Ni, Nb, Mo, Pb Stainless Steels: C, Al, Si, Ti, V, Cr, Mn, Ni, Fe, Ni, Cu, Nb, Mo, W Nickel Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W Copper Base: Be, Al, Si, Cr, Mn, Fe, Ni, Cu, Zn, Ag, Sn, Pb, Bi Cobalt Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W Specialty Bases: Mg, V, Cr, Mn, Co, Zn, Zr, Nb, Mo, Ag, Sn, Hf, Ta, W, Re, Pb, S
|
| Grade Library
|
500+ grades, multi-library support, libraries may be added or edited. |
