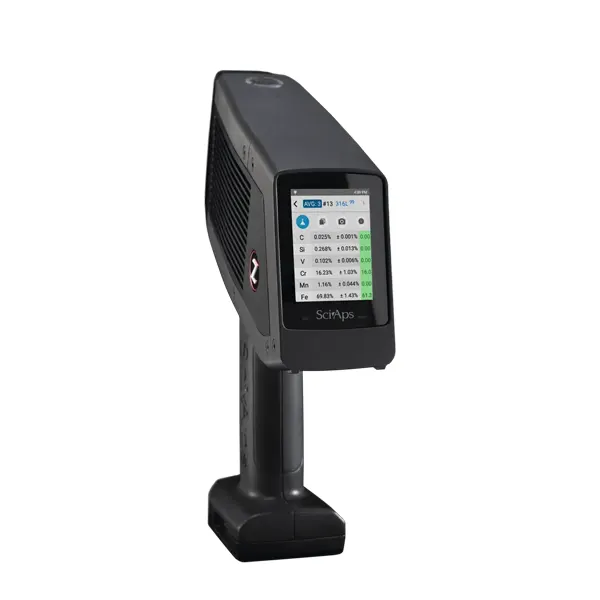

Sciaps Z-902+ LIBS Analyzer

Sciaps Z-902+ LIBS Analyzer features an all-new ergonomic design, a 0.5 lb. weight reduction down to about 3.5 lbs. (1.6 kg), improved heat dissipation, and completely updated software and processing electronics.

The Z-902+ can use on-board argon purge for high precision analysis or QuickSort for rapid material sorting or grade identification with air-burn. Depending on the element, the LIBS signal is 2x-10x higher when operating in argon purge versus air-burn.
‍
The analyzer uses two spectrometers to extend the wavelength range to 190 – 620 nm. The instrument is factory calibrated for a suite of 15-20 elements, depending on application. Or operators may use the accompanying Profile Builder software package to customize to specific elements, their own calibration standards, and spectral processing. The Sciaps Z-902+ can be set up to measure the emissions of any element. Common factory-calibrated Sciaps Z-902+ LIBS Analyzer applications include alloy and aluminum.

Sciaps Z-902+ LIBS Analyzer Features

• Alloy: Argon-purge for high precision and improved detection limits. Many customers use argon-purge to analyze and sell mill-ready aluminum scrap.‍
• QuickSort: Air-burn for rapid material sorting or grade identification.

Sciaps Z-902+ LIBS Analyzer – What is Included

• Sciaps Z-902+ LIBS Analyzer Unit
• Two (2) rechargeable Lithium-ion batteries
• Charger
• Carrying Case
• Calibration Standards
• USB-C cable
• Software

Sciaps Z-902+ LIBS Analyzer Specifications

• Weight & Dimensions: 4.35 lbs (1.97 kg) with battery; \(10.75\times 2.875\times 8.625\) inches.
• Spectrometer & Range: 190–420 nm. Utilizes a second, dedicated spectrometer specifically for superior resolution in the 190–230 nm range, crucial for carbon detection.
• Excitation Source: Laser-Induced Breakdown Spectroscopy (LIBS).
• Atmosphere: Proprietary Opti-Purge argon system for improved signal-to-noise ratio, enhancing performance in the UV range.
• Processor & Data: ARM Quad Cortex-A53 1.2 GHz, 2GB LPDDR3 RAM, 16GB eMMC storage.
• Interface: 2.7-inch high-brightness color touchscreen with a rear-facing display for ease of use.
• Connectivity: Wi-Fi, Bluetooth, and USB-C.
• Safety: Laser safety sensor allows Class 1 operation (subject to LSO approval).
• Camera: Integrated camera for sample imaging, plus a macro-camera for QR/barcode scanning.
