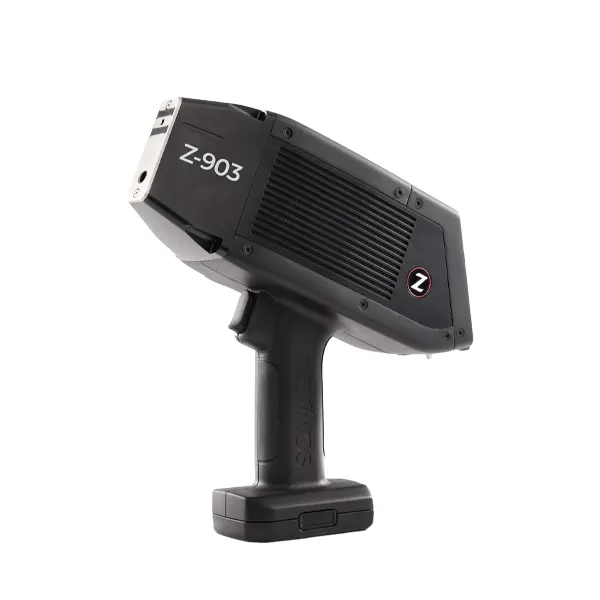

Sciaps Z-903 Carbon LIBS Analyzer
$5,900
In Stock
- Manufacturer: Sciaps
- Model: Z-903 Carbon
- Included: Z-903 Unit, Opti-Purge System, Software, Two (2) rechargeable Lithium-ion batteries, External battery charger and AC adapter, USB-C cable for data transfer, Hard carrying case, Calibration Standards
Description
Sciaps Z-903 Carbon LIBS Analyzer is designed to measure every element in the periodic table, including carbon in steels and alloys down to 70 ppm. It features an extended spectrometer range (190 nm – 950 nm) for analyzing light elements like Li, B, C, F, Na, and S.
The key to rock solid, in-field carbon analysis for alloys.
- Identification of stainless steels and low alloy steels, including carbon analysis down to 70 ppm and instant CE (carbon equivalents) calculations.
- Powerful laser, on-board argon purge and high resolution spectrometer are built for carbon.
- Narrow profile for accessing the tightest spaces, aerospace-grade aluminum body for improved performance in high ambient temperatures, and re-designed user-interface. The most usable platform on the market, at only 4.35 lbs. (1.97 kg).
Sciaps Z-903 Carbon LIBS Analyzer Features
- High-purity Argon and Purge: Argon purge is essential for quantitative analysis with LIBS and OES, and for carbon it’s critical.
- High Laser Pulse Energy and Frequency: The SciAps laser delivers 5-6 mJ/pulse on the sample, with a 50 Hz repetition rate.
- Laser Raster: Rastering is critical for accurate carbon tests with LIBS.
- Analysis Averaging: Multi-shot averaging and data rejection are critical to getting the best carbon tests.
- Micro-camera and LED Spotlight: Proper alignment is critical to getting good analysis.
- Argon: Cost of Operation: Argon costs just pennies per test, far less expensive than spark OES and much more convenient.
Sciaps Z-903 Carbon LIBS Analyzer – What is Included
- Sciaps Z-903 Carbon LIBS Analyzer Unit
- Opti-Purge System
- Software
- Two (2) rechargeable Lithium-ion batteries
- External battery charger and AC adapter
- USB-C cable for data transfer
- Hard carrying case
- Calibration Standards
Sciaps Z-903 Carbon LIBS Analyzer Specifications
| Weight
|
4.35 lbs. (1.97 kg) with battery
|
Dimensions
|
10.75 x 2.875 x 8.625 inches
|
Processing Electronics
|
ARM Quad Cortex -A53 1.2GHz memory: 2 GB LPDDR3, 16 GB eMMC
|
Sciaps Z-903 Carbon LIBS Analyzer Data Storage
|
Results Storage: 32 GB SD
|
Spectral Range
|
190 nm – 950 nm
|
Display
|
3.5-inch high-brightness color touchscreen, readable in all conditions. Rear-facing display for easy results viewing.
|
Drift Correction
|
On-board automated drift correction software with factory or user-provided reference materials.
|
Power
|
On board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.
|
Regulatory
|
CE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions subject to local LSO approval.
|
Sciaps Z-903 Carbon LIBS Analyzer Laser Raster |
On-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.
|
Connectivity |
Built on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C to connect to virtually any information management system.
|
Calibration Check |
Internal 316 stainless check standard for calibration verification and wavelength scale validation.
|
Grade Library |
500+ grades, multi-library support, libraries may be added or edited.
|
