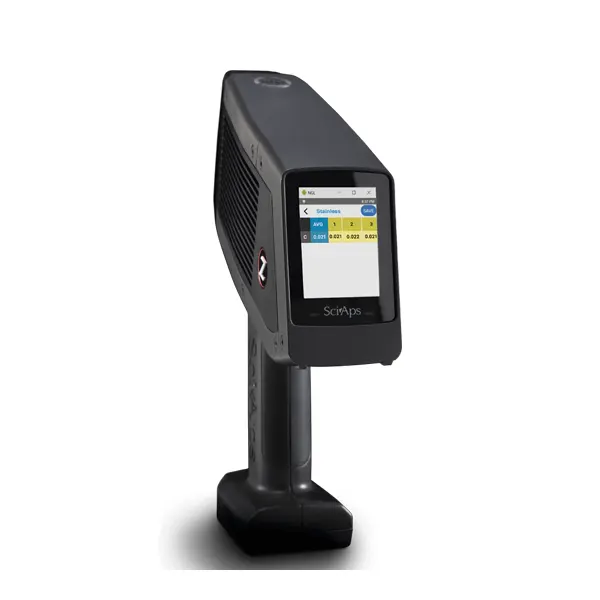

Sciaps Z-903 LIBS Analyzer

Sciaps Z-903 LIBS Analyzeraccomplishes what no other portable analyzer has done. It’s a handheld analyzer that measures every element in the periodic table of the elements – from H to U. It uses the same powerful laser as SciAps other Z-900 models, but with an extended spectrometer range from 190 nm out to 950 nm.

• The extended range allows emission lines from elements H, F, N, O, Br, Cl, Rb, Cs and S to be measured. These lines cannot be measured with the other Z-900 series analyzers.
• There are other benefits to the extended range. For example, it measures a more sensitive line for lithium near 675 nm to achieve limits of detection in the 2-5 ppm range.
• It also measures a more sensitive, and interference-free line for potassium (K). The more traditional potassium lines have heavy iron interference, whereas the line used by the Z-903 is free of such interference.

Sciaps Z-903 LIBS Analyzer Features

• Extended Spectral Range (190 nm – 950 nm): Allows for the detection of elements that often require specialized equipment, such as Hydrogen (H), Fluorine (F), Nitrogen (N), Oxygen (O), Bromine (Br), Chlorine (Cl), Rubidium (Rb), Cesium (Cs), and Sulfur (S).
• High Sensitivity for Specialized Elements: Optimized for lithium (Li) analysis (specifically near 675 nm) with detection limits in the 2-5 ppm range, as well as superior potassium (K) detection.
• Proprietary Opti-Purge: An on-board Argon purge environment significantly improves the signal-to-noise ratio, particularly for UV-range elements.
• Laser Rastering & Micro-Analysis: Features an on-board Y-stage for rastering the laser to different positions, enabling micro-analysis, heat mapping on rocks, and averaging multiple shots.
• Portability & Design: Weighs 4.35 lbs (1.97 kg) with the battery, equipped with a 3.5-inch high-brightness touchscreen and an internal camera for precise sample targeting.
• Sciaps Z-903 LIBS Analyzer Software & Connectivity: Runs on the Android platform with Wi-Fi, Bluetooth, and GPS, allowing for immediate data exporting, report generation, and integration with data management systems.
• Advanced Calibration: Includes factory-provided calibrations for Geochem (soils, ores) and allows users to create their own calibration curves using the included software.

Sciaps Z-903 LIBS Analyzer – What is Included

• Z-903 LIBS Analyzer unit
• Opti-Purge System
• Software
• Power & Accessories: Rechargeable Li-ion batteries (generally 6+ hours of operation) and a charger.
• Support & Training: Virtual/video training, along with technical and application support.

Sciaps Z-903 LIBS Analyzer Specifications
