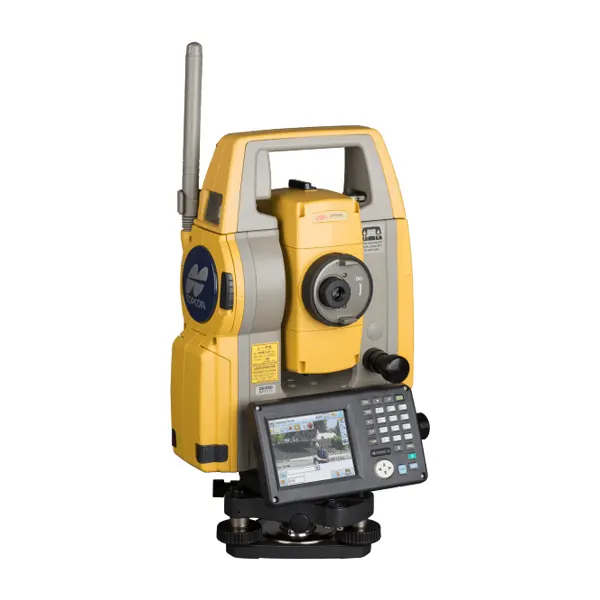

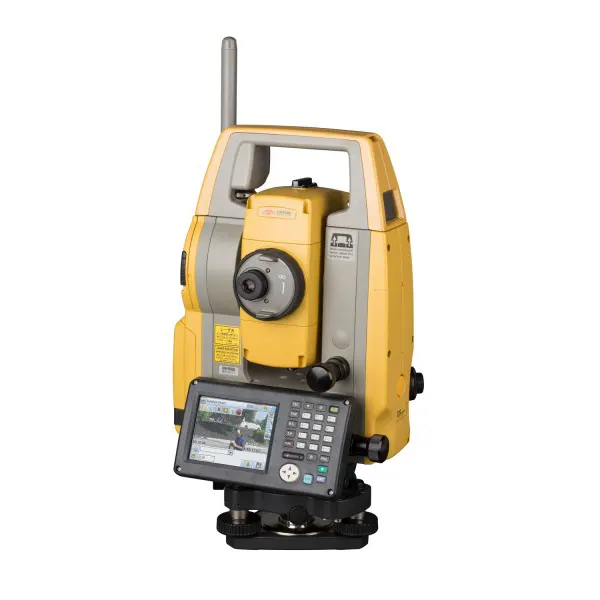

Topcon DS 200i Robotic Total Station

Topcon DS 200i Robotic Total Station is a professional video motorized total station for the construction professional that is looking for productivity enhancement from servo motors, with enriched video images that can capture measured positions.

It features on-board Magnet Software with an intuitive interface to assist with staking out complex structures.

Topcon DS 200i Robotic Total Station rugged, waterproof total station has the latest technology of TS-Shield advanced security and maintenance, and exclusive LongLinkTM communications that can be paired with an optional RC-5 Remote Control Unit for quick lock functionality or the HiPer SR GNSS for Hybrid Positioning.

Topcon DS 200i Robotic Total Station Features:

• Real-time video imaging with 5 megapixel camera
• Auto-tracking technology
• Hybrid Positioning™ ready
• Exclusive LongLink™ communications
• RC-5 quick lock
• Rugged, waterproof design

Topcon DS 200i Robotic Total Station Included:

• Topcon DS 200i Robotic Total Station
• Battery
• Adjusting pin
• Carrying strap
• Charger
• Power cable
• Stylus pen
• Lens cap
• Lens brush
• USB flash drive
• Carrying case
• User manual

Topcon DS 200i Robotic Total Station Specifications:

General

Display

Color Touch TFT, 240 x 320 QVGA Display, (Dual Display)

Face two: Touch screen

Keypad: 25 keys with illuminator

Battery Operation: Up to 5 hours

Dust/Water Protection: IP65

Wireless Connection: Bluetooth® Class 1

Operating Temperature: -4°F to +122°F, (-20°C to +50°C)

Telescope

Resolving Power: 2.5”

Magnification: 30x

Angle Measurement

Min. Res/Accuracy

DS-101 1”

DS-103 3”

DS-105 5”

Tile Angle Compensation

Compensation: Dual-axis compensator

Range: ±6’

Distance Measurement

Prism EDM Range: 6,000m

Prism EDM Accuracy: 1.5mm + 2ppm

Measuring Time

Fine: 0.9 sec

Rapid: 0.6 sec

Tracking: 0.4 sec

Communications

General*

LongLink™ rover communications

USB 2.0 Slot (Host + Slave)

RS-232C Serial
