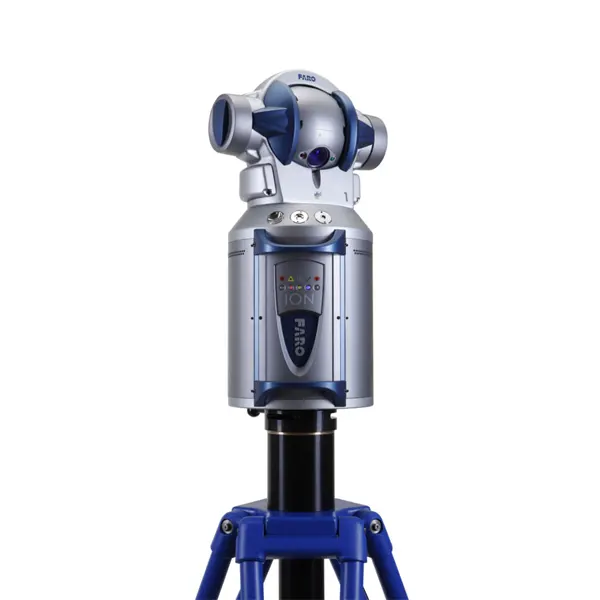

FARO ION Laser Tracker

FARO ION Laser Tracker is an extremely accurate, portable coordinate measuring machine that enables you to build products, optimize processes, and deliver solutions by measuring more quickly, simply and precisely than previously possible.

FARO ION Laser Tracker is the most accurate laser tracker available based on the most common types of measurement applications. FARO ION Laser Tracker also features a longer measurement range, lighter weight, and contains the fastest, most sophisticated distance measuring system: Agile Absolute Distance Meter (aADM).

FARO ION Laser Tracker Features:

• 0.049mm volumetric accuracy at 10m
• 110m diameter range
• Agile ADM instant beam acquisition
• As light as 17.7kg
• High performance, real-time dynamic measurements

FARO ION Laser Tracker Included:

• FARO Laser Tracker ION head with Absolute Distance Meter (ADM) and Precision Level Sensor
• FARO Laser Tracker ION Master Control Unit (MCU)
• MCU-to-tracker cable
• Remote air temperature sensor
• Cable cover
• Cross-wired ethernet cable
• Power cord (USA/Canada)
• Calibration Tripod with adaptor for a 1.5” SMR (SMR not included)
• Quick-release mandrel for standard 3.5” – 8 TPI ring
• Certificate of calibration
• Shipping case



You may also be interested in FARO Focus X 330 HDR Laser Scanner

FARO ION Laser Tracker Specifications:

Size

Laser Tracker Measuring Head    311(W) x 556(H) mm

Master Control Unit    282(L) x 158(D) x 214(H) mm

Weight

Laser Tracker Measuring Head     17.7 kg

Laser Tracker Measuring Head with IFM    19.5 kg

Range

Maximum working range

55 m with select targets

40 m Standard 1.5” & 7/8” SMRs

30 m Standard 1/2” SMR

Minimum working range    0m (0ft)

Horizontal envelope     /- 270°

Vertical envelope    125° ( 72.5° to -52.5°)

Environmental

Altitude    -700 to 2,450m (-2,297 to 8,038ft) with integrated weather station

Humidity    0 to 95% non-condensing

Operating temperature    -15°C to 50°C (5°F to 122°F)

Distance Measurement Performance

AgileADM

Resolution: 0.5μm (0.00002in)

Accuracy (MPE): 16μm 0.8μm/m (0.00063in 0.0000096in/ft)

Sample rate: 10,000/sec

R0 parameter (MPE): 16μm (0.0006in)

Interferometer

Resolution: 0.158μm (0.000006in

Accuracy (MPE): 4μm 0.8μm/m (0.00016in 0.0000096in/ft)

Maximum radial velocity: 4m/sec (13.1ft/sec)

R0 parameter (MPE): 16μm (0.00063in)

Angle Measurement Performance

Angular accuracy (MPE)    20μm 5μm/m (0.00079in 0.00006in/ft)

Precision level accuracy     /- 2 arcseconds

Maximum angular velocity    180°/sec

Probe Type

Diameter    1.5 in., 0.875 in., or 0.5 in.

Reflector Type    Spherically Mounted Retroreflector (SMR)

Sampling Strategy

Acquisition time    1 sec

Frequency    1000 points/sec
