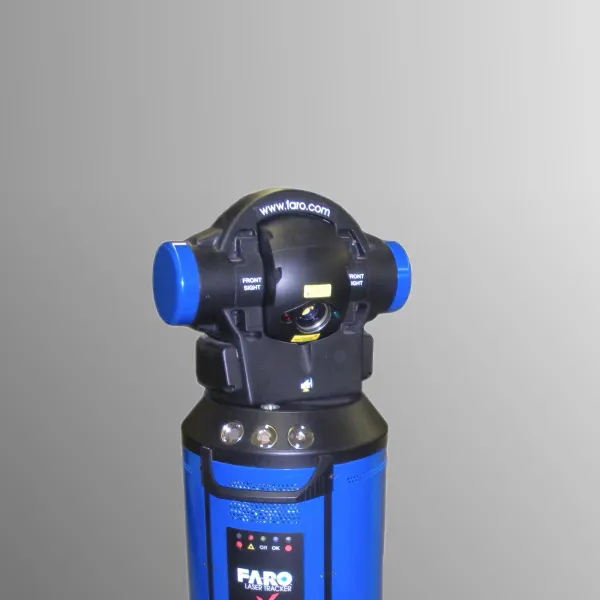

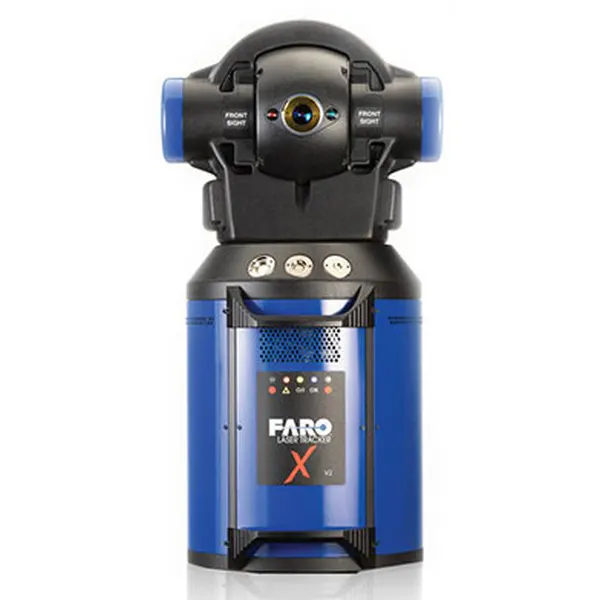

Faro Laser Tracker Xv2

Faro Laser Tracker Xv2 is a portable contact measurement system that uses laser technology to accurately measure large parts and machinery across a wide range of industrial applications.

Faro Laser Tracker Xv2 system measures 3D coordinates with its laser by following a mirrored spherical probe. Faro Laser Tracker Xv2  high-accuracy, angular encoders – along with XtremeADM (absolute distance measurement) — reports the 3D position of the probe in real-time.

Faro Laser Tracker Xv2 Features:

• Aerospace: Inspection, tool building & certification, automated assembly systems
• Automotive: Tool certification and repeatability, reverse engineering
• Tool & die: Master moulds, tool setup, composite tooling
• Heavy equipment: In-process/large part inspection, installation and alignment
• XtremeADM: Acquires the beam instantly with fast, high accuracy absolute distance measurement (ADM)
• SelfComp: Automatically compensates to quickly ensure high accuracy
• Full Featured Standard Equipment: Integrated precision level and weather station
• Smart Warm-Up: Newly expanded operating temperature, along with active thermal compensation make it ready for all environments
• Versatile Mounting Options: Mounts vertically, horizontally or upside down, providing versatility in tight or congested shop areas
• Spherically Mounted Retroreflectors: Certified precision probes

Faro Laser Tracker Xv2 Included:

• Tracker head
• MCU
• MCU to head cable
• Temp sensor
• CAT 6 crossover cable
• Power Cord
• Calibration Stand
• CAM 2 2018 Software and Dongle
• Heavy Shipping Cases
• Brunson folding stand and shipping case

You may also be interested in FARO Vantage Laser Tracker

Faro Laser Tracker Xv2 Specifications:

System Specifications

Head size: 280 x 554 mm (11 x 21.8 in)

Head weight: 20 kg (44 lbs)

Controller size: 160 x 180 x 280 mm (6 x 7 x 11 in)

Controller weight: 5 kg (12 lbs)

Range

Horizontal envelope: /- 270°

Vertical envelope: 75° to -50°

Minimum working range: 0m

Maximum working range: 70m (230-ft.) diameter

Environmental

Altitude: -700 to 2,450 meters

Humidity: 0 to 95% non-condensing

Operating Temperature: -15°C to 50°C (5°F to 122°F)

Laser Emission

633-635 nm Laser, 1 milliwatt max/cw.

Class II Laser Product

Distance Measurement Performance

Resolution: 0.5µm

Sample rate: 10,000 samples/sec

Accuracy: 10µm 0.4µm/m

R0 Parameter: 10µm

Angle Measurement Performance

Angular accuracy: 18µm 3µm/m

Maximum angular velocity :180°/sec

Optional Precision Level Accuracy: /- 2 arcseconds
