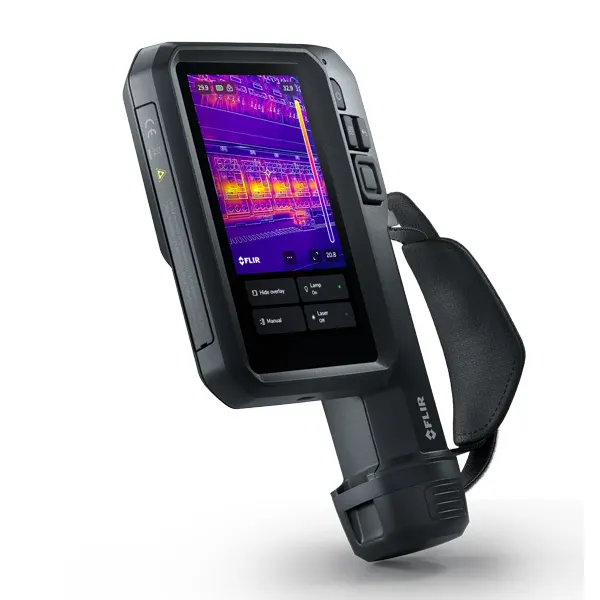

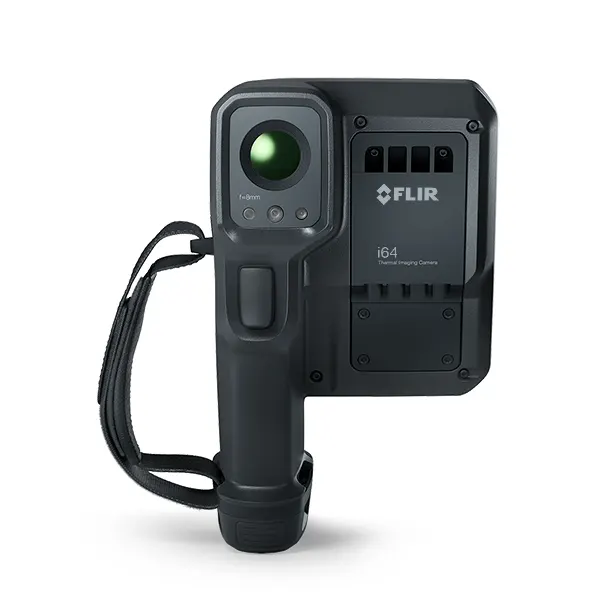

Flir i64 Thermal Imaging Camera

Flir i64 Thermal Imaging Camera brings the power of NFPA 70B-certified thermal inspections to every technician, no matter their experience level. Built on the new ACE operating system, it works just like a smartphone for thermography—powered by apps, connected to the cloud, and ready to scale across teams.

The Flir i64 Thermal Imaging Camera is equipped with high-resolution 480 × 640 thermal imaging, an intuitive 5” touchscreen, and rugged, glove-friendly design, the i64 provides sharper detail and greater diagnostic confidence, helping teams detect smaller faults earlier and improve overall asset reliability.

Flir i64 Thermal Imaging Camera Features

• Simplify and Speed Workflows
• Support Inexperienced Users
• Solve Documentation, Communication, and Decision Pains

Flir i64 Thermal Imaging Camera Contents of the Package

• Infrared camera with battery
• Extra battery
• Battery charger
• USB-C cable
• Printed documentation
• Hard transport case
• Wrist strap

Flir i64 Thermal Imaging Camera Specification

• Automatic Image Adjustment: Yes
• Color: Black
• Color Palettes: Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
• Digital Camera: 8 MP, Autofocus
• Digital Camera FOV: 50.5° × 64.5°
• Display resolution: 720 × 1280
• Display Type: 5 in. color LCD
• f-number: 1.4
• Field of view (FOV): 38° × 49°
• Focus: Fixed focus
• Image Frequency: 30 Hz
• Image Modes: MSX®, Thermal, Picture-in-Picture, Digital camera
• IR Resolution: 480 × 640
• Laser Alignment: Position of laser pointer automatically displayed on the infrared image
• Manual Image Adjustment: Yes
• Minimum Focus Distance: 0.5 m
• Spatial resolution (IFOV): 1.4 mrad
• Spectral Range: 7.5 to 13 µm
• Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
• Camera size: (L x W x H) 225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in)
• Camera weight incl battery: 0.8 kg (1.76 lb)
• Cellular: No
