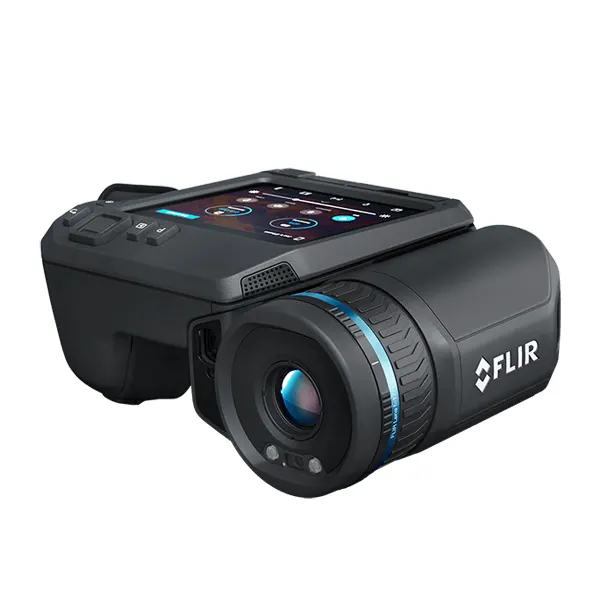

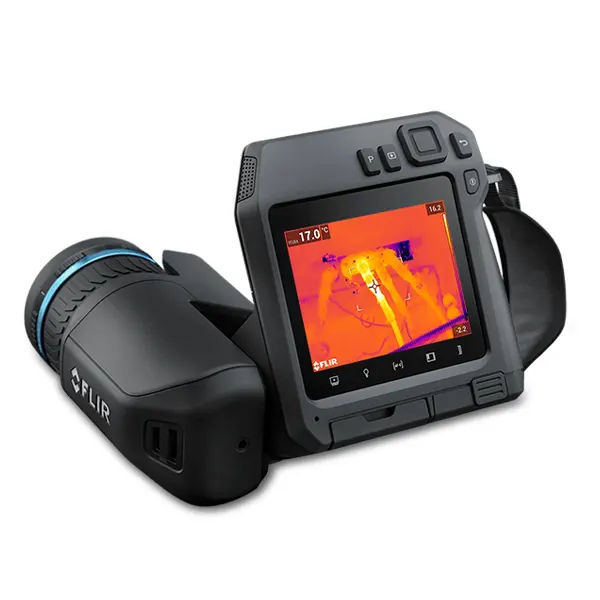

FLIR T530 Thermal Imaging Camera

FLIR T530 Thermal Imaging Camera has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180° rotating lens platform and a bright 4″ LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly.

With on-board Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro. Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. Pair the FLIR T530 Thermal Imaging Camera with a FLIR FlexView® dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens.

Flir T530 Thermal Imaging Camera Features

• Make Critical Decisions Quickly: Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.
• Flexible and Ergonomic: The FLIR T530 Thermal Imaging Camera’s optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.
• Intuitive User Interface: The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.

Flir T540 Thermal Imaging Camera Contents of the Package

• Infrared camera with lens
• 2 batteries
• Battery charger
• Hard transport case
• Lanyards
• Front lens cap
• Power supplies
• Printed documentation
• SD card (8 GB)
• Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
• License card: FLIR Thermal Studio Pro (3 month subscription)

Flir T540 Thermal Imaging Camera Specification

• Infrared camera with lens
• 2 batteries
• Battery charger
• Hard transport case
• Lanyards
• Front lens cap
• Power supplies
• Printed documentation
• SD card (8 GB)
• Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
• License card: FLIR Thermal Studio Pro (3 month subscription)

Flir T530 Thermal Imaging Camera Specification

• Camera software update: Using USB cable or SD card
• Color: Black
• Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
• Detector Type and Pitch: Uncooled microbolometer, 17 µm
• Digital Camera: 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use
• Digital Camera FOV: 53° × 41°
• Digital Zoom: 1–4× continuous
• Focus: Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
• Image Frequency: 30 Hz
• IR Resolution: 320 × 240 (76,800 pixels)
• Laser Alignment: Position is automatically displayed on the infrared image
• Lens: 24°, 14°, 42°, 80°, DFOV (24°, 14°), DFOV (42°, 24°)
• FLIR T530 Thermal Imaging Camera Lens Identification: Automatic
• Minimum Focus Distance: 0.15 m (0.49 ft.), 42° 0.15 m (0.49 ft.), 24° 1.0 m (3.28 ft.), 14° Macro mode 50 µm as option to 24° 0.10 m (3.9 in), 80°
• Minimum Focus Distance with MSX: 0.65 m (2.13 ft.), 42° 0.5 m (1.64 ft.), 24° 1.0 m (3.28 ft.), 14°
• Resolution: 320 × 240 pixels (VGA)
• Spatial resolution (IFOV): 2.41 mrad/pixel, 42° 1.31 mrad/pixel, 24° 0.75 mrad/pixel, 14° 5.2 mrad/pixel, 80°
• Spectral Range: 7.5 – 14.0 µm
• Thermal Sensitivity/NETD: <30 mK, 42° @ 30°C (86°F) <40 mK, 24° @ 30°C (86°F) <50 mK, 14° @ 30°C (86°F) <40 mK, 80° @ 30°C (86°F)
• UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Thermal Studio
• Visual Video Recording: H.264 to memory card
• FLIR T530 Thermal Imaging Camera Visual Video Streaming: Yes
• Laser Pointer: Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance
• Size (L x W x H): Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)
• Weight [battery included]: 1.4 kg (3.1 lb)
