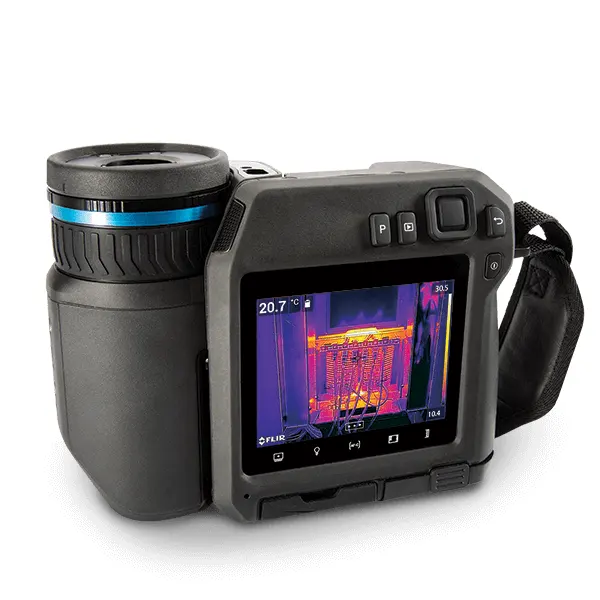

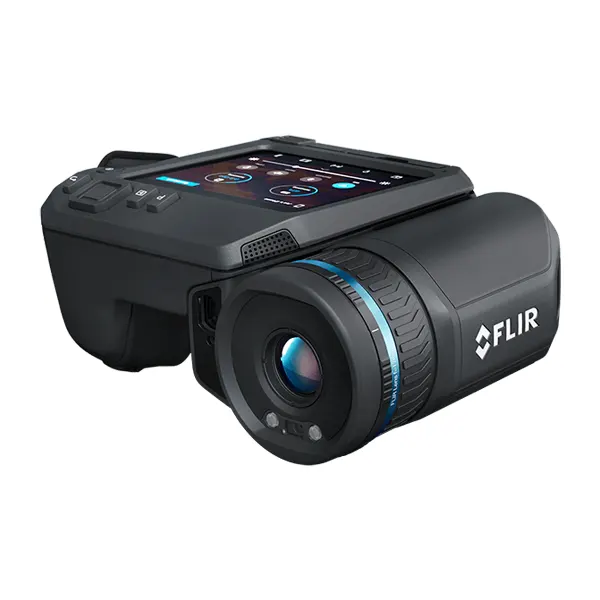

FLIR T560 Thermal Imaging Camera

FLIR T560 Thermal Imaging Camera is for troubleshoot hot spots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution. This 640 × 480 (307,200 pixel) thermal imaging camera has a bright 4″ LCD and a 180° rotating lens platform, so you can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you’ll record accurate temperature measurements every time.

Pair the FLIR T560 Thermal Imaging Camera with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens. With on-board FLIR Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro. Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

Flir T560 Thermal Imaging Camera Features

• Make Critical Decisions Quickly: Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.
• Flexible and Ergonomic: The T560’s optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.
• Improve Workflow Efficiencies: Plan inspections in FLIR Thermal Studio Pro and load into a FLIR T560 Thermal Imaging Camera with the FLIR Inspection Route camera option to streamline surveys and better manage critical data. Activate FLIR Ignite for automatic image uploads directly from the camera to the cloud for efficient and secure storage and sharing.

Flir T560 Thermal Imaging Camera Contents of the Package

• Infrared camera with lens
• 2 batteries
• Battery charger
• Hard transport case
• Lanyards
• Front lens cap
• Power supplies
• Printed documentation
• SD card (8 GB)
• Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
• License card: FLIR Thermal Studio Pro (3 month subscription)

Flir T560 Thermal Imaging Camera Specification

• Camera software update: Using USB cable or SD card
• Color: Black
• Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
• Detector Resolution: 640 × 480
• Detector Type and Pitch: Uncooled microbolometer, 12 µm
• Digital Camera: 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use
• Digital Camera FOV: 53° × 41°
• Digital Zoom: 1–8× continuous
• Focus: Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
• Frame Rate [Full Window]: 30 Hz
• Image Frequency: 30 Hz
• IR Resolution: 640 × 480 pixels
• Laser Alignment: Position is automatically displayed on the infrared image
• Lens: 24°, 14°, 42°, 80°, DFOV (24°, 14°), DFOV (42°, 24°)
• FLIR T560 Thermal Imaging Camera Lens Identification: Automatic
• Minimum Focus Distance: 0.15 m (0.49 ft.), 42° 0.15 m (0.49 ft.), 24° 1.0 m (3.28 ft.), 14° Macro mode 50 µm as option to 24° 0.10 m (3.9 in), 80°
• Minimum Focus Distance with MSX: 0.65 m (2.13 ft.), 42° 0.5 m (1.64 ft.), 24° 1.0 m (3.28 ft.), 14°
• Resolution: 640 × 480 pixels (VGA)
• Spatial resolution (IFOV): 1.20 mrad/pixel, 42° 0.66 mrad/pixel, 24° 0.38 mrad/pixel, 14° 2.6 mrad/pixel, 80°
• Spectral Range: 7.5 – 14.0 µm
• Thermal Sensitivity/NETD: <50 mK @ 30°C/86°F (14° lens), <40 mK @ 30°C/86°F (24° lens), <30 mK @ 30°C/86°F (42° lens), <50 mK @ 30°C (86°F)
• UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Tools
• Visual Video Recording: H.264 to memory card
• Visual Video Streaming: Yes
• Laser Pointer: Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance
• Size (L x W x H): Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)
• Weight [battery included]: 1.4 kg (3.1 lb)
