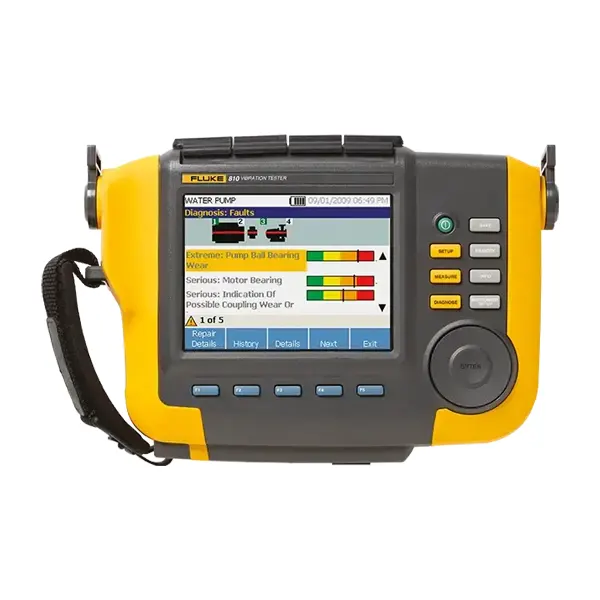

Fluke 810 Vibration Tester
$3,300
In Stock
- Manufacturer: Fluke
- Model: 810
- Included: Vibration Tester, Accelerometer, Accelerometer Magnet Mount, Accelerometer Mounting Pad Kit with Adhesive, Accelerometer Quick-Disconnect Cable, Laser Tachometer, Shoulder Strap, Adjustable Hand Strap, Viewer PC Software, Mini-USB to USB Cable, Carrying Case, Smart Battery Pack with Cable and Adapters, Training DVD, Getting Started Guide, Illustrated Quick Reference Guide, Users Manual CD-ROM
Description
Fluke 810 Vibration tester detects low-level vibration causes, evaluates them for their criticality, and gives repair recommendations directly on site.
Spectral diagrams and detailed diagnostic reports help to specify the measurements and to locate the root cause of failure correctly. The tri-axial accelerometer (sensor) measures vibration data in three different degrees of freedom at once. This saves time in data acquisition, without the data quality suffering.
The fault diagnosis is divided into four different fault severity levels so that the urgency of a repair can be easily recognized using Fluke 810 Vibration Tester. The data can also be analyzed on a PC via the Viewer PC software.
Fluke 810 Vibration Tester Features
- Overall vibration level for quick assessment of the machine condition
- Four different fault severity levels indicate the prioritization of the defect
- Repair recommendations are issued directly
- Several different machine types can be configured individually based on the rotational speed
- Time-saving tri-axial accelerometer
- Self-test function for optimizing the operating performance
- Highly accurate determination of the machine speed by laser tachometer
- Presentation of the measurement results in individual spectral diagrams for precise fault determination
- All measurement results, especially large amounts of data, can be viewed and analyzed in the Viewer PC software
Fluke 810 Vibration Tester Contents of the Package
- Fluke Vibration Tester
- Accelerometer
- Accelerometer Magnet Mount
- Accelerometer Mounting Pad Kit with Adhesive
- Accelerometer Quick-Disconnect Cable
- Laser Tachometer
- Shoulder Strap
- Adjustable Hand Strap
- Viewer PC Software
- Mini-USB to USB Cable
- Carrying Case
- Smart Battery Pack with Cable and Adapters
- Training DVD
- Getting Started Guide
- Illustrated Quick Reference Guide
- Users Manual CD-ROM
Fluke 810 Vibration Tester Specifications
| Fluke 810 Vibration Tester Diagnostic Specifications | |
| Standard Faults | Unbalance, looseness, misalignment and bearing failures |
| Analysis For | Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles |
| Machine Rotational Speed Range | 200 to 12,000 rpm |
| Diagnosis Details | Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra |
| Fluke 810 Vibration Tester Electrical Specifications | |
| Ranging | Automatic |
| A/D Converter | 4 channel, 24 bit |
| Usable Frequency Bandwidth | 5 Hz to 20 kHz |
| Digital Signal Processing Functions | Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging |
| Sampling Rate | 2.56 to 51.2 kHz |
| Dynamic Range | 128 dB |
| Signal to Noise Ratio | 100 dB |
| FFT Resolution | 800 lines |
| Spectral Windows | Hanning |
| Frequency Units | Hz, orders, cpm |
| Amplitude Units | in/sec, mm/sec, VdB |
| Non-Volatile Memory | SD micro memory card, 2 GB internal + user accessible slot for additional 2 GB storage |
| Fluke 810 Vibration Tester Environmental | |
| Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10 to 95% RH (non-condensing) |
| Agency Approvals | CHINA RoHS, CSA, CE, C TICK, WEEE |
| Electromagnetic Compatibility | EN 61326-1:2006, EN 61010:1:2001 2nd ed. |
| General Specifications | |
| Display | ¼ VGA, 320 × 240 Color (5.7″ diagonal) TFT LCD with LED backlight |

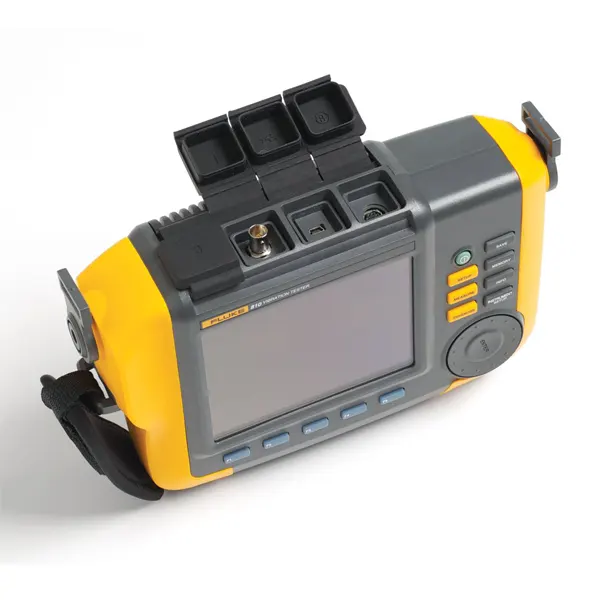

| Input/Output Connections | Triaxial sensor connection: 4 pin M12 connector Single axis sensor connection: BNC connector Tachometer connection: Mini DIN 6 pin connector PC connection: Mini ‘B’ USB (2.0) connector |
| Battery | Battery type: Lithium-ion, 14.8 V, 2.55 Ah Battery charging time: three hours Battery discharge time: eight hours (under normal conditions) |
| AC Adapter | Input voltage: 100 to 240 V AC Input frequency: 50/60 Hz |
| Operating System | WinCE 6.0 Core |
| Language Support | English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish |
| Dimensions | 7.3 x 2.76 x 10.52″ (18.56 x 7 x 26.72 cm) |
| Weight | 4.2 lbs (1.9 kg) with battery |
