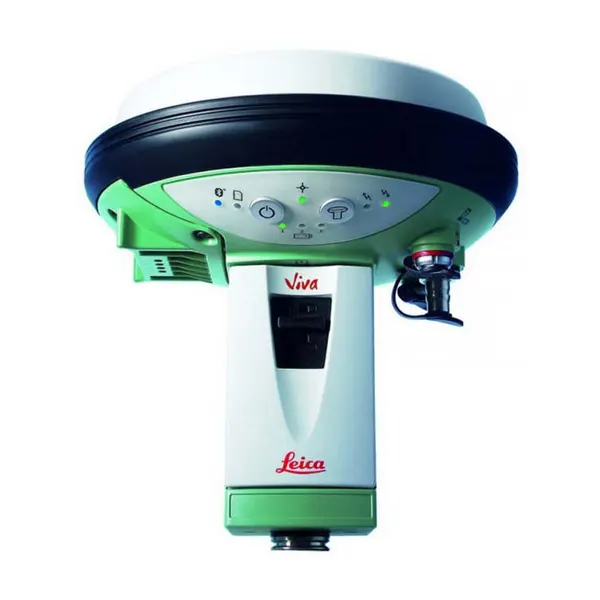

Leica Viva GS15 GNSS Smart Antenna
$3,200
In Stock
- Manufacturer: Leica
- Model: Viva GS15
- Included: Leica GS15 Base Receiver [ID- -L/T*], Leica GS15 Rover Receiver [ID- -L/T*], Leica CS15 Field Controller [ID- -L/T*], Battery Pack, Carrying Case
Description
Leica Viva GS15 GNSS Smart Antenna offers you the flexibility to choose which wireless communication device best meets your needs now and in the future.
Leica Viva GS15 are supported by intenna technology – a fully-integrated antenna concept. This smart antenna adjusts to any environment and delivers the most accurate results. Eliminate downtime and work as you want with the ability to switch out batteries without powering down.
Providing twice the operation time, the Leica Viva GS15 Leica GNSS Smart Antenna dual battery option, integrated antenna and exchangeable communication devices are the best elements for a completely versatile GNSS system.
The Leica Viva GS15 from Leica Captivate spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both.
Leica Viva GS15 GNSS Smart Antenna Features:
- IP67 Protection
- 1.34kg Weight (GS15)
- -40 to +65° Operating Temperature
- Integrated Web Interface
- LED Indicator
- Bluetooth Communication
Leica Viva GS15 GNSS Smart Antenna Specifications:
| Weight & Dimensions
|
|
| Weight (GS15) | 1.34 kg |
| Weight | 3.30 kg standard RTK rover including slot RTK device, controller, batteries pole and bracket |
| Dimension (GS15) (diameter x height) | 196 mm x 198 mm |
| Leica Viva GS15 Environmental specifications
|
|
| Temperature, operating | –40° C to +65° C, compliance with ISO9022-10-08, ISO9022-11-special, MIL STD 810F – 502.4-II, MIL STD 810F – 501.4-II |
| Temperature, storage | –40° C to +80° C, compliance with ISO9022-10-08, ISO9022-11-special, MIL STD 810F – 502.4-II, MIL STD 810F – 501.4-II |
| Humidity | 100%, compliance with ISO9022-13-06, ISO9022-12-04 and MIL STD 810F – 507.4-I |
| Proof against: water, sand and dust | IP68 according IEC60529 and MIL STD 810F – 506.4-I, MIL STD 810F – 510.4-I and MIL STD 810F – 512.4-I
Protected against blowing rain and dust Protected against temporary submersion into water (max. depth 1,4 m) |
| Vibration | Withstands strong vibration during operating, compliance with ISO9022-36-08 and MIL STD 810F – 514.5-Cat.24 |
| Drops | Withstands 1.0 m drop onto hard surfaces |
| Functional shock | 40 g / 15 to 23 msec, compliance with MIL STD 810F – 516.5-I No loss of lock to satellite signal when used on a pole set-up and submitted to pole bumps up to 150 mm |
| Topple over | Withstands topple over from a 2 m survey pole onto hard surfaces |
| Leica Viva GS15 Power & Electrical
|
|
| Supply voltage | Nominal 12 V DC
Range 10.5 – 28 V DC |
| Power consumption | Typically: 3.2 W, 270 mA |
| Internal power supply | Recharge & removable LI-Ion battery, 2.6 Ah / 7.4 V, 2 batteries fit into receiver |
| Internal power supply, operation time | • 10.00 h receiving RTK data with standard radio
• 9.00 h transmitting RTK data with standard radio • 7.50 h RTK via GSM/GPRS connection using 2 internal batteries |
| External power supply | Rechargeable external NiMh battery 9 Ah / 12 V |
| Certifications | Compliance to: FCC, CE Local approvals (as IC Canada, C-Tick Australia, Japan, China) |
| Memory | |
| Memory medium | Removable SD Card: 1 GB |
| Data capacity | 1 GB is typically sufficient for about GPS & GLONASS (8+4 satellites) 280 days raw data logging at 15 s rate |
| Data recording | |
| Type of data | Onboard recording of:
• Leica GNSS raw data • RINEX data |
| Recording rate | Up to 20 Hz |
| Buttons | • ON / OFF button
• Function button |
| Button functionality | Function button:
• Easy switch between Rover / Base mode • Easy “Here” positioning functionality |
| Led status indicator | Bluetooth®, position, RTK status, data logging, detailed power status |
| Additional user interface | Additional web interface functionality provides full status indicator and configuration options |
| Leica Viva GS15 Communications | |
| Communication ports | 1 x serial RS232 Lemo
1 x USB / RS232 Lemo 1 x UART serial & USB (for removable internal RTK devices) 1 x Bluetooth® port, Bluetooth® v2.00+ EDR, class 2 |
| No. of simultaneous data links | • Up to 3 data links can be attached and used simultaneously
• 2 real-time output interfaces via independent ports, providing identical or different RTK/ RTCM formats |
|
Built In data links |
|
| Radio modems | • Fully integrated, fully sealed receive / transmit radios
• User exchangeable device • SATEL, Pacific Crest and others • 390 – 470 MHz bandwidth • Transmit power: 0.5 – 1.0 W |
| Radio modems | • Fully integrated, fully sealed receive / transmit radios
• User exchangeable device • SATEL, Pacific Crest and others • 390 – 470 MHz bandwidth • Transmit power: 0.5 – 1.0 W |
| UHF antenna options | • Fully integrated UHF antenna
• External UHF antenna connector (Type QN) |
| 3G GSM / UMTS(HSDPA) phone modem | • Fully integrated, fully sealed phone modem
• User exchangeable device • User exchangeable SIM card • Tri-Band UMTS / HSDPA: 850 / 1900 / 2100 MHz • Quad-Band GSM / GPRS: 850 / 900 / 1800 / 1900 MHz |
| CDMA phone modem | • Fully integrated, fully sealed CDMA phone modem
• User exchangeable device • Dual-Band CDMA 1XRTT (800 / 1900 MHz) |
| GSM / UMTS / CDMA antenna options | • Integrated GSM / UMTS / CDMA antenna
• External GSM / UMTS / CDMA antenna connector (Type QN) |
|
External data links |
|
| Radio modems | Support of any suitable UHF / VHF radio |
| GSM / UMTS / CDMA phone modems | Support of any suitable GSM / GPRS / UMTS / CDMA modem |
| Landline phone modems | Support of any suitable Landline phone modem |
