MALA CX12 Concrete Scanner GPR

MALA CX12 Concrete Scanner GPR is an easy to use, Ground Penetrating Radar (GPR) system that is designed for non-destructive investigation and imaging of concrete and other structures..

The MALA CX12 Concrete Radar system allows you to scan concrete structure simply and safely in different measurement modes such as; 2D, and 3D Grid- and Object Mapper- which projects and presents data clearly for real-time data acquisition and analysis.

MALA CX12 Concrete Scanner GPR comes with 3D Vision software which was primarly designed to enhance processing and visualization of GPR data. The software improves the 3D Grid Project functionality and allows the user to manage and adjust the 3D Grid Project data collected while using the 3D system.

MALA CX12 Concrete Scanner GPR Applications:

• Concrete Investigation
• Post Tension cables
• Mapping Steel Reinforcement

MALA CX12 Concrete Scanner GPR Features:

• Detects metal and non-metallic objects
• Detects voids
• Locates and identifies 50/60Hz power cables
• Project modes for 2D3D Grid and Object Mapper/ Software.
• Measure depth of cover or slab thickness
• Locate and map reinforcing support structure
• Quality assessment & control
• Measure layer thickness
• Stand-alone Windows processing software

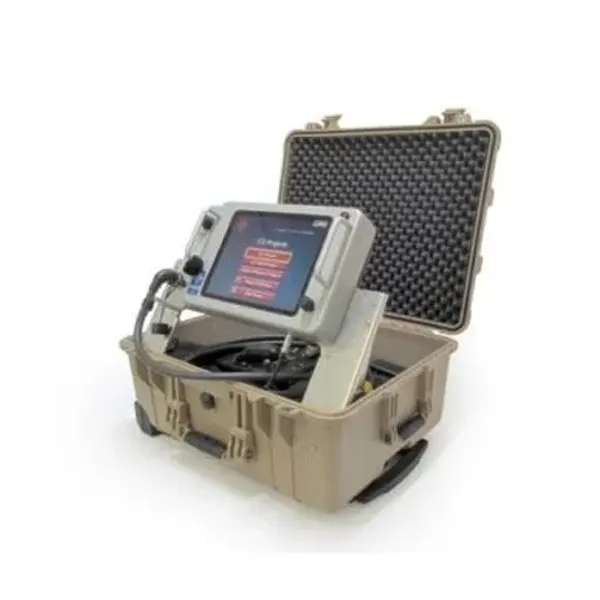

MALA CX12 Concrete Scanner GPR Included:

• Mala CX12 Base Unit
• Hard Padded Transport Case
• Mala 1.6GHz Antenna
• Lithium Ion Battery Pack
• Charger and Power Supply
• Umbilical & Lemo Cables

MALA CX12 Concrete Scanner GPRSpecifications:
