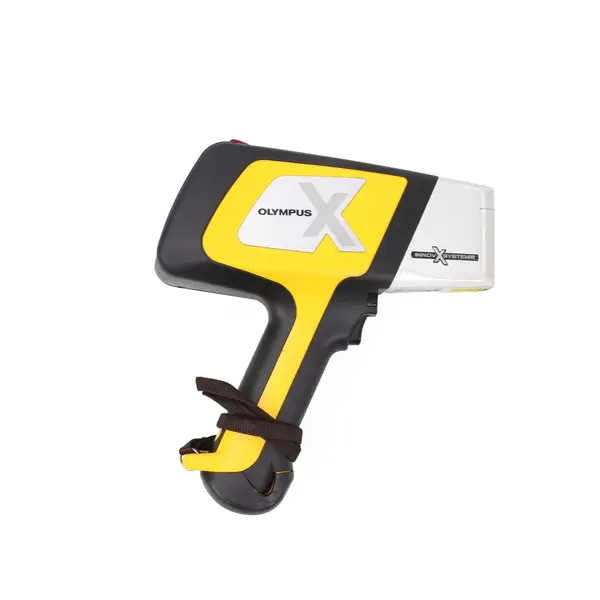

Olympus Innov X DS2000 XRF Analyzer
$4,500
In Stock
- Manufacturer: Olympus
- Model: Innov X DS2000
- Included: Olympus X Innov-X DS-2000 XRF Analyzer Unit, Li-Ion Batteries x 2, Docking Station, AC Power Adapter, USB Interface Cable, Waterproof Rugged Carrying Case, Wrist Strap, User Instructions
Description
Olympus Innov X DS2000 XRF Analyzer are ergonomically advanced with a forward looking design incorporating the latest in electronics, components, and software technology.
Olympus Innov X DS2000 XRF Analyzer provide highly specific material chemistry to rapidly and accurately identify alloy grades and pure metals. Get alloy chemistry and grade ID in seconds, from simple sorting to challenging grade separations, from incoming material inspection to end-product verification.
Olympus Innov X DS2000 XRF Analyzer can be equipped with 3mm diameter spot collimation for highly focused sample analysis. An integrated full VGA camera takes a live video image of the sample tested and superimposes a spot location for precise test location. Capable of analyzing thin weld beads independent from substrate materials. Analyzes small fixture components, wires and solders.
Olympus Innov X DS2000 XRF Analyzer Features:
- 4 W X-ray tube, 200µA current (max) plus optimized beam settings
- Tight geometry for exceptional LODs and high analysis throughout
- Area SDD option plus customized X-ray provides exceptional light element sensitivity pending automatic barometric pressure correction adjusts calibration as needed fast bootup and data acquisition: Faster testing, more results
- Point Processor: Provides more calculations in less time and leverages more advanced calibration algorithms
- Integrated Bluetooth for data input and output
- Ergonomic rubberized handle for enhanced grip
- Analysis indicator lights visible from 360°
- Bright, responsive, color touch screen display
- Accelerometer technology puts the unit into sleep mode when not in use to conserve power; logs impacts for tool management
- USB interface port for high-speed data download and seamless PC control
- Hot Swap: the rechargeable battery can be replaced without having to turn off or re-standardize the unit

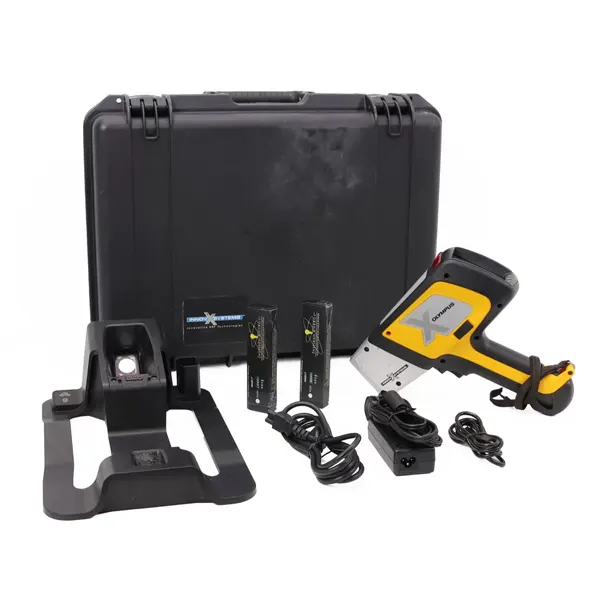

Olympus Innov X DS2000 XRF Analyzer Included:
- Olympus X Innov-X DS-2000 XRF Analyzer Unit
- Li-Ion Batteries x 2
- Docking Station
- AC Power Adapter
- USB Interface Cable
- Waterproof Rugged Carrying Case
- Wrist Strap
- User Instructions
You may also be interested in Olympus Vanta C Series XRF Analyzer
Olympus Innov X DS2000 XRF Analyzer Specifications:
| Dimensions | 260 x 240 x 90 mm (10.25 x 9.5 x 3.5 in.) |
|---|---|
| Excitation source | 4W Ag, Rh, Au, or Ta anode (per application) X-ray tube |
| Detector | Silicon Drift Detector |
| Environmental temperature range | -10 °C to 50 °C (14 °F to 122 °F) |
| Analytical range | Alloy and Mining: Mg and up for Rh/Ag and Al and up for Ta/Au; Soil: P and higher |
| Processing electronics | 530 MHz CPU with integrated FPU with 128 MB RAM; Proprietary Olympus X-act Count Digital Pulse Processor (DPP) |
| Smart Electronics | Barometer for atmosphere pressure correction of light elements’ measurements |
| Power | Rechargeable Li-ion battery; Hot-swap maintains analyzer power during battery change |
| Display | 32 bit Color QVGA resolution, Blanview transmissive backlit touchscreen; 57 x 73 mm (2.25 x 2.9 in.) |
| Data Storage | 1 GB microSD (stores ~75,000 readings) |
| Data Transfer | USB |
