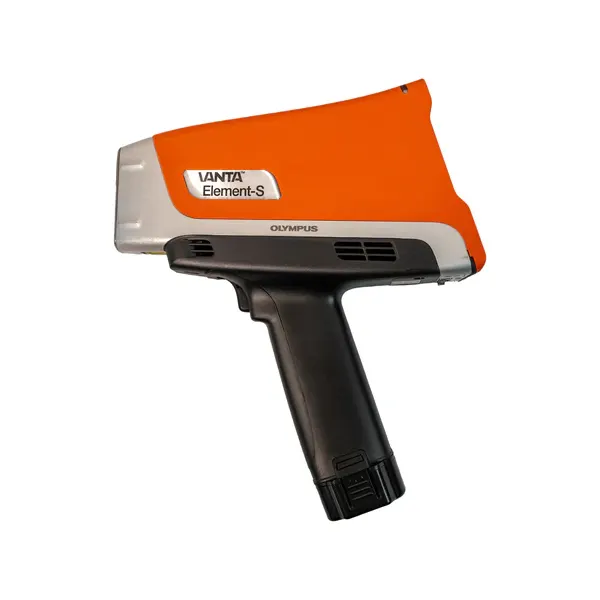

Olympus Vanta S Series XRF Analyzer
$3,000
In Stock
- Manufacturer: Olympus
- Model: Vanta S Series
- Included: 1 x Olympus VANTA Element-S Handheld XRF Analyzer (Manufactured 2021), 1 x A/C Adapator and Charger, 2 x Lithium Battery, 1 x Calibration Coin, 3 x Window Replacement, 1 x Hard Carry Case, 1 x Cailbration Certificate
Description
Olympus Vanta S Series XRF Analyzer are rugged and built for analytically demanding applications in the harshest environments. Vanta Element analyzers are IP54 rated for protection against dust and water, are drop tested, and built to withstand a temperature range of −10 °C to 45 °C (14 °F to 113 °F).
Olympus Vanta S Series XRF Analyzer provide fast, accurate elemental analysis. Each device features Olympus’ Axon TechnologyTM, a revolution in Olympus Vanta S Series XRF Analyzer Analyzersignal processing that provides accurate, repeatable results for greater productivity and a fast return on investment. Vanta analyzers feature an intuitive interface and application-specific software so new users can work with the device with minimal training. Data is easily exported wirelessly or via USB.
Olympus Vanta S Series XRF Analyzer Features:
- Easy to UseSmartphone-like operation: swipe, flick, and tap. Customize home screen buttons for frequently used operations.
- DurableAll Vanta™ models are built to pass a 4-foot drop test (MIL-STD-810G) to withstand typical forces in manufacturing environments.
- Comprehensive Metals DatabaseUse the Vanta analyzer’s extensive alloy library—including the preloaded Aerospace Materials Specification (AMS) grades—to identify the chemical makeup of 500+ alloys for fast verification of material compliance.
- Data Management & ReportingInstantly export analysis results through optional wireless connectivity, the Olympus Scientific Cloud, or a USB flash drive. Customize data labels and exports with Vanta PC software.
- Barcode ScannerCorrelate Vanta data and sample tracking with built-in barcode scanning using the optional panoramic camera.
Olympus Vanta S Series XRF Analyzer Included:
- 1 x Olympus VANTA Element-S Handheld XRF Analyzer (Manufactured 2021)
- 1 x A/C Adapator and Charger
- 2 x Lithium Battery
- 1 x Calibration Coin
- 3 x Window Replacement
- 1 x Hard Carry Case
- 1 x Cailbration Certificate
Olympus Vanta S Series XRF Analyzer Specifications:
| Vanta Element Model | Vanta Element-S Model | |
|---|---|---|
| Dimensions (W x H x D) | 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.) | |
| Weight | 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery | |
| Excitation Source | 2-watt X-ray tube with 35 kV tungsten anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Primary Beam Filtration | Fixed aluminum filter | 8-position filter wheel |
| Detector | Silicon PIN detector | Silicon drift detector (SDD) |
| Barometer | No | Yes |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max | |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control | |
| Operating Environment | Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle
Humidity: 10% to 90% relative humidity noncondensing |
|
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test | |
| IP Rating and Detector Shutter | IP54: dust protected and protected against water splashing from all directions | |
| Operating System | Linux® | |
| Data Storage | microSD™ slot with removable 1 GB Industrial SD card included | |
| USB | Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
One USB 2.0 type mini-B port for connection to computer. |
|
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | |
| Bluetooth | Supports Bluetooth® with an optional USB adaptor | |
| Warranty | One-year warranty | |
| Optional Accessories | Field Stand, Soil Foot, and Holster | |
