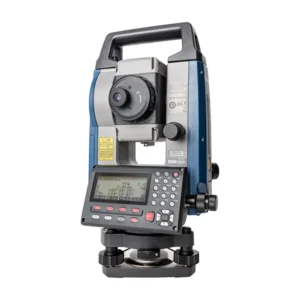

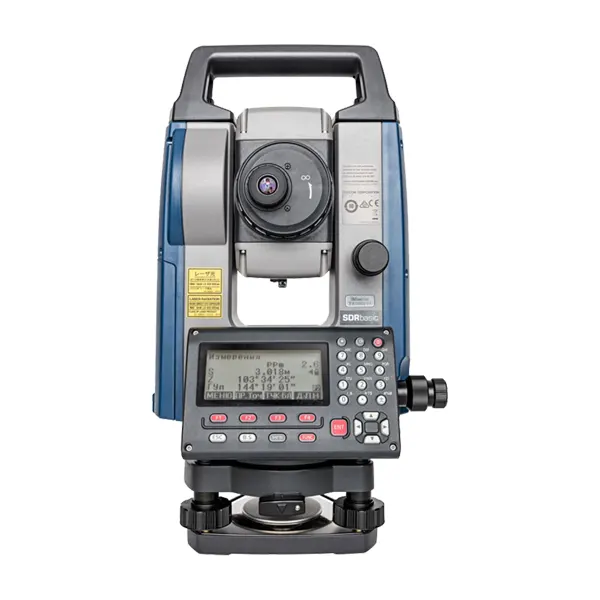

Sokkia IM 102 Total Station

$3,300

In Stock

Manufacturer: Sokkia
Model: IM 102 Total Station
Included: (1) Sokkia iM-100 Series Reflectorless Total Station, (1) Lens cap and hood, (1) Tool pouch, (1) Precision screwdriver, (1) Lens brush, (2) Hexagonal wrench, (1) Cleaning cloth, (1) Power cable, (1) Battery, BDC70, (1) Battery charger, CDC68A, (1) CD-ROM manual, (1) Laser caution sign-board, (1) Carrying case with strap, (1) User manual

Sokkia IM 102 Total Station is an intelligent measuring device that is easy-to-use and packed with advanced features. Sokkia IM 102 Total Station perfect for entry-level site layout and surveying, this total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy.

It is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.

Sokkia IM 102 Total Station is faster, more accurate and powerful. It is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles.

Sokkia IM 102 Total Station Features:

Accuracy options: 1 second, 2 second, 3 second or 5 second
Perfect for entry-level site layout and surveying
Reflectorless up to 2,624 ft.
Integrated Bluetooth capability which delivers data instantly to the controller
50,000 points of internal memory storage
Laser plummet
Dual-axis compensation
Equipped with its new EDM technology which is more faster, accurate and powerful
Up to 28-hour battery life
Single graphic display
Meets waterproof IP66 rating

Sokkia IM 102 Total Station Included:

(1) Sokkia iM-100 Series Reflectorless Total Station
(1) Lens cap and hood
(1) Tool pouch
(1) Precision screwdriver
(1) Lens brush
(2) Hexagonal wrench
(1) Cleaning cloth
(1) Power cable
(1) Battery, BDC70
(1) Battery charger, CDC68A
(1) CD-ROM manual
(1) Laser caution sign-board
(1) Carrying case with strap
(1) User manual

Sokkia IM 102 Total Station Specifications:

MODEL		IM-102
Telescope
Magnification / Resolving power		30x/ 2.5″
Length		171 mm (6.7 in.)
Objective aperture		45 mm (1.8 in.) (48 mm (1.9 in.) for EDM)
lmage		Erect
Field of view		1°30′(26 m/1,000 m)
Minimum focus		1.3 m (4.3 ft.)
Reticle illumination		5 brightness levels
Angle Measurement
Display Resolution		1″/5″
Accuracy (ISO 17123-3:2001)		2”
IACS (ndependent Angle Calibration System)		Provided
Dual-axis compensator / Collimation compensation		Dual-axis liquid tilt sensor, working range:±6′(±111 mgon)/ Collimation compensation available
Distance Measurement
Sokkia IM 102 Total Station Laser output		Reflectorless mode: Class 3R/ Prism /sheet mode: Class 1
Measuring range (under average conditions	Reflectorless Reflective sheet	0.3 to 800m (1.0 to 2,624ft.) RS90N-K: 1.3 to 500 m (4.3 to 1,640 ft.) RS5ON-K:1.3 to 300 m(4.3 to 980 ft.) RS10N-K:1.3 to 100 m(4.3 to 320 ft.)
	Mini prisms One AP prism	CP01:1.3 to 2,500m(8,200ft.), OR1PA:1.3 to 500m(1,640ft.) 1.3 to 5,000 m (4.3 to 16,400 ft.)/ Under goodconditions:6,000 m(19,685 ft.)
Display Resolution		Fine/Rapid: 0.001 m/0.01 ft./ 1/8 in. Tracking: 0.01 m/0.1 ft./1/2 in.
Accuracy(So 17123-4:2001) (D=measuring distance in mm)	Reflectorless Reflective sheet APICP prism	(2+2 ppm x D) mm7 (2+2 ppm x D)mm (1.5+ 2 ppm x D)1.5mm
Measuring time		Fine: 0.9 s(Initial 1.5 s), Rapid:0.6 s(Initial 1.3 s), Tracking:0.4 s (initial 1.3 s)
lnterface and Data management
Display / Keyboard		Graphic LCD,192 x80 dots,backlight, contrast adjustment /Alphanumeric keyboard: 28 keys with backlight
Control panel location		on both faces (second display is optional)
Trigger key		On right instrument support
Data storage	lnternal memory Plug-in memory device	Approx.50,000 points USB flash memory (max.32GB)
lnterface		Serial RS-232C,USB2.0 (TypeA, for USB flash memory)
General
Laser-pointer		Coaxial red laser using EMD beam
Guide light		Green LED (524 nm) and Red LED(626 nm), Operating range:1.3 to 150 m (4.3 to 490 ft.)
Levels	Graphic Circular level(on tribrach)	6 (Inner Circle) 10’/ 2 mm
	Plate Level	Regional Dependent
Optical plummet (optional for NA,LA and EU)		Magnification: 3x, Minimum focus: 0.3m (11.8 in.) from tribrach bottom
Laser plummet (optional for Oceana and Russia)		Red laser diode (635 nm± 10 nm), Beam accuracy: ≤1.0 mm at 1.3 m,Class 2 laser product
Dust/Water Rating		lP66(IEC 60529:2001)
Operating Temperature		-20 to +60°C
Size with handle (W x H x D)		Control panel on both faces: 183×181×348 mm Control panel single: face:183×174x348mm
Weight with battery and tribrach		Approx.5.3 kg
