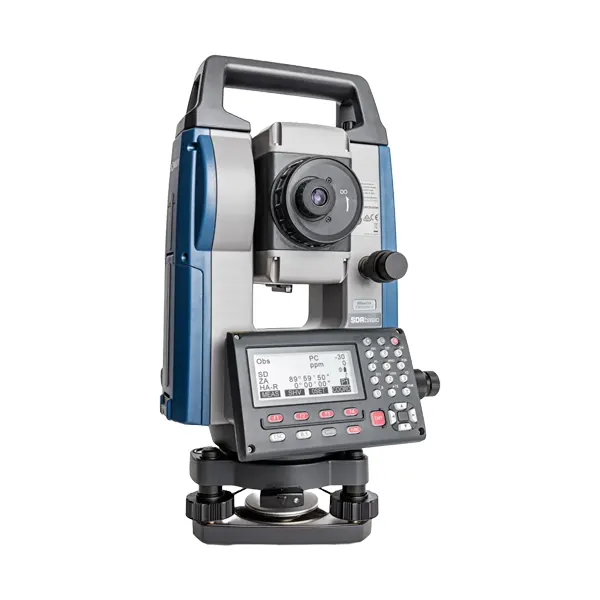

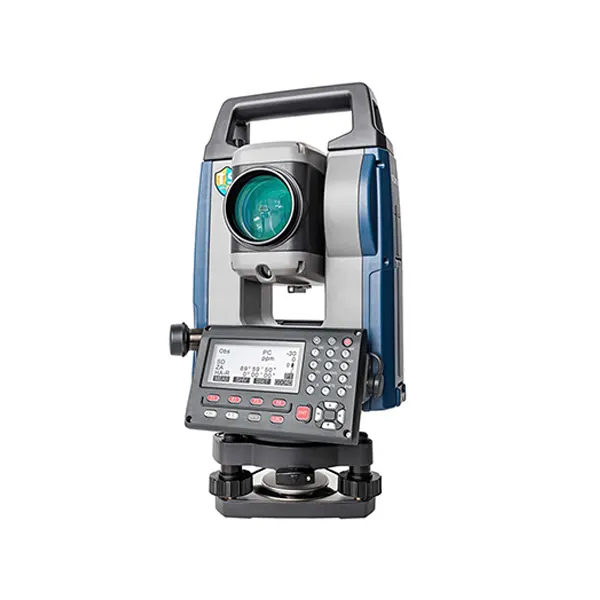

Sokkia IM 103 Total Station
$3,500
In Stock
- Manufacturer: Sokkia
- Model: IM 103Total Station
- Included: (1) Sokkia iM-100 Series Reflectorless Total Station, (1) Lens cap and hood, (1) Tool pouch, (1) Precision screwdriver, (1) Lens brush, (2) Hexagonal wrench, (1) Cleaning cloth, (1) Power cable, (1) Battery, BDC70, (1) Battery charger, CDC68A, (1) CD-ROM manual, (1) Laser caution sign-board, (1) Carrying case with strap, (1) User manual
Description
Sokkia IM 103 Total Station is an intelligent measuring device that is easy-to-use and packed with advanced features. Sokkia IM 103 Total Station perfect for entry-level site layout and surveying, this total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy.
Sokkia IM 103 Total Station is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.
Sokkia IM 103 Total Station is faster, more accurate and powerful. Sokkia IM 103 Total Station is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles. Sokkia IM 103 Total Station comes with a single graphic display for viewing measurements and 50,000 points of internal memory to store large amounts of field data. It also supports an SD flash drive up to 32GB.
Sokkia IM 103 Total Station Features:
- Accuracy options: 1 second, 2 second, 3 second or 5 second
- Perfect for entry-level site layout and surveying
- Reflectorless up to 2,624 ft.
- Integrated Bluetooth capability which delivers data instantly to the controller
- 50,000 points of internal memory storage
- Laser plummet
- Dual-axis compensation
- Equipped with its new EDM technology which is more faster, accurate and powerful
- Up to 28-hour battery life
- Single graphic display
- Meets waterproof IP66 rating
Sokkia IM 103 Total Station Included:
- (1) Sokkia iM-100 Series Reflectorless Total Station
- (1) Lens cap and hood
- (1) Tool pouch
- (1) Precision screwdriver
- (1) Lens brush
- (2) Hexagonal wrench
- (1) Cleaning cloth
- (1) Power cable
- (1) Battery, BDC70
- (1) Battery charger, CDC68A
- (1) CD-ROM manual
- (1) Laser caution sign-board
- (1) Carrying case with strap
- (1) User manual
You may also be interested in Sokkia IM 102 Total Station
Sokkia IM 103 Total Station Specifications:
| Model | Sokkia iM-102 | Sokkia iM-103 | Sokkia iM-105 | |
| Telescope | ||||
| Magnification / Resolving power | 30x / 2.5” | |||
| Length | 171 mm (6.7 in.) | |||
| Objective aperture | 45 mm (1.8 in.) (48 mm (1.9 in.) for EDM) | |||
| Angle Measurement | ||||
| Display Resolution | 1” / 5” | |||
| Accuracy (ISO 17123-3:2001) | 2” | 3” | 5” | |
| Memory | ||||
| Internal memory | Approx. 50,000 points | |||
| Plug-in memory device | USB flash memory (max. 32GB) | |||
| General | ||||
| Dust/Water Rating | IP66 (IEC 60529:2001) | |||
| Size with handle (w x d x h) | Control panel on both faces: 183 x 181 x 348 mm
Control panel single face: 183 x 174 x 348 mm |
|||
