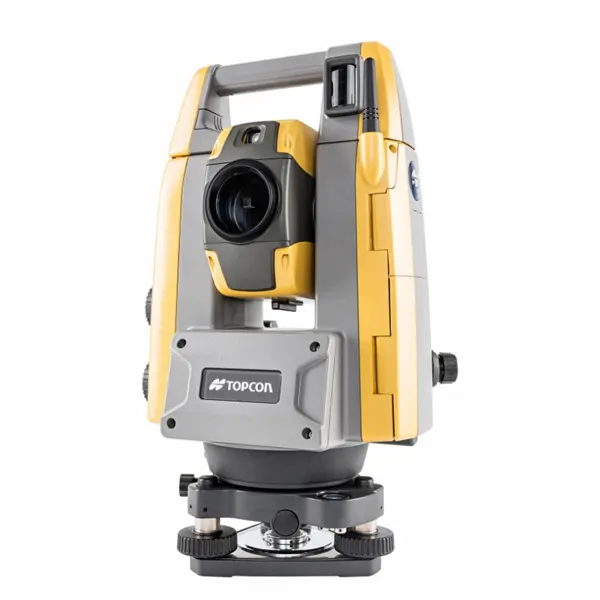

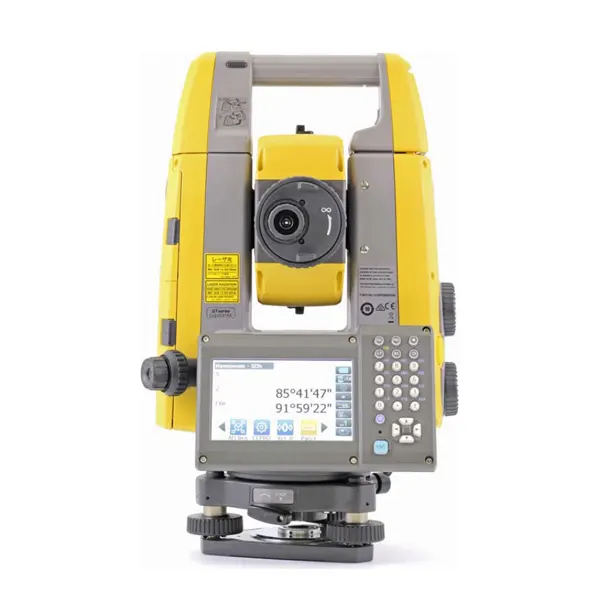

Topcon GT 1003 Robotic Total Station

Topcon GT 1003 Robotic Total Station offers a compact, high-performance solution by providing you with the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and performance as a hybrid positioning solution.

Topcon GT 1003 Robotic Total Station is the driving force behind the GT Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism-tracking possible with a rotation speed of 180° per second – it’s a difference you will see and hear immediately.

Topcon GT 1003 Robotic Total Station Features:

• Smallest and lightest robotic total station
• Reflectorless up to 1,000m
• UltraSonic Direct Drive motor
• Advanced UltraTrac technology
• TSshield global service
• 3 year instrument, 5 year motor warranty
• Integrated cellular modem
• Ready for full promotion into a Hybrid Positioning solution

Topcon GT 1003 Robotic Total Station Included:

• Topcon GT-1003 Robotic Total Station; LongLink 600m Wireless Robotic Range, OnBoard Display, 1000m Non-Prism Range, 6000m Prism Range
• (1) Topcon RC-5 Remote Controller
• (1) Topcon APT-1 360° Prism
• (2) Rechargeable Total Station Batteries
• (2) Rechargeable RC-5 Batteries
• (2) Dual Battery Chargers w/ Power Supply
• (2) Topcon Hard Transport Cases

You may also be interested in Topcon GT 1002 Robotic Total Station

Topcon GT 1003 Robotic Total Station Specifications:

Telescope: Resolving power 2.5”, Magnification 30x

Angle Measurement: GT-1003: 3”

Tilt Angle Compensation

Compensation Liquid 2-axis tilt sensor

Range ±6’

Distance Measurement

Prism EDM Range, GT-1000 5,000 m

Prism EDM Accuracy: GT-1000 1 mm + 2 ppm

Non-Prism Range: GT-1000 1,000 m

Non-Prism Accuracy 2 mm + 2 ppm (0.3 – 200 m)

Measuring Time Fine: 0.9 sec, Rapid: 0.6 sec, Tracking: 0.4 sec

Communications

LongLink™ interference-free communication

USB 2.0 Slot (Host + Slave)

RS-232C Serial

General

Display Color touch TFT

800 x 480 display

Keyboard 24 keys with

illuminator

Battery Operation Up to 4 hours

Dust/Water Rating IP65

Wireless Connection Bluetooth® Class 1

Operating Temp -20°C to 50°C

Turning Speed: GT-1000 180º per-second
