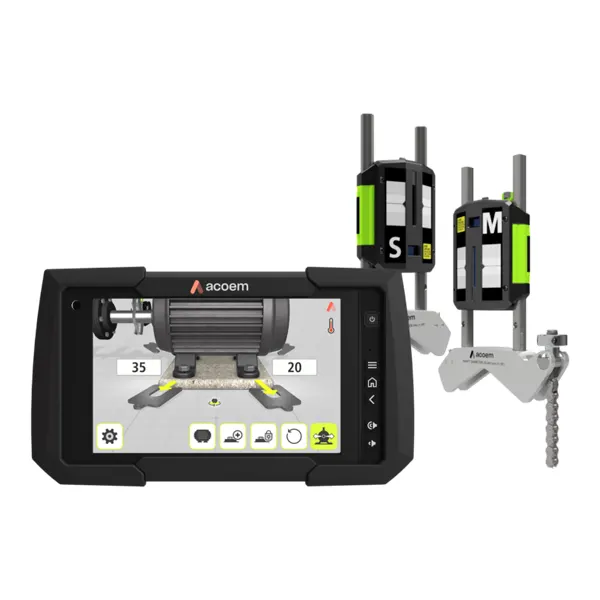

Acoem AT-300 Shaft Alignment System
$3,700
In Stock
- Manufacturer: ACOEM
- Model: AT-300
- Included: Acoem AT Display Unit, Acoem S10 Alignment Sensor, Acoem M10 Alignment Sensor, V-Bracket Complete x2, Quick Guide AT, USB-Cable A-Mini B 2m (6.5 ft), Chain 8mm (0.3 in) 60 Links (L=970mm (38.2 in)), Power Supply 4 USB-Ports 5 VDC, Magnetic V-Brackets x2, Extension Fixture 49mm (1.93 in), Magnetic Base On-Off, Tape Measure (16.5 in), Acoem USB, Angled Universal Tool x2, Rod Kit
Description
Acoem AT-300 Shaft Alignment System seamless integration of connectivity, mobile devices, and apps empowers maintenance professionals to swiftly respond to machine failures and take corrective actions regardless of their location.
Utilizing the newest and latest CCD technology, the smart sensors deliver superior measurement performance, ensuring precise alignment and optimal operational efficiency. This advanced tool streamlines maintenance processes, minimizing downtime and maximizing productivity.
With the Acoem AT-300 Shaft Alignment System, you can measure misalignment with five different measurement methods. Each method includes benefits for different types of machinery.
Acoem AT-300 Shaft Alignment System Features
- Measurement Programs: Horizontal Shaft Alignment, Vertical Shaft Alignment, Machine Train, SoftCheck, target values, Spacer Shaft Alignment, OL2R Live
- Measurement Methods: Multipoint, Multipoint Express, Tripoint, Tripoint Express Method, Clock Method
- Interface Features: The Acoem AT-300 Shaft Alignment System interface is designed to make the user experience hassle-free as well as maximize user productivity, facilitate intuitive reporting, and ensure a consistent user experience across all measurements.

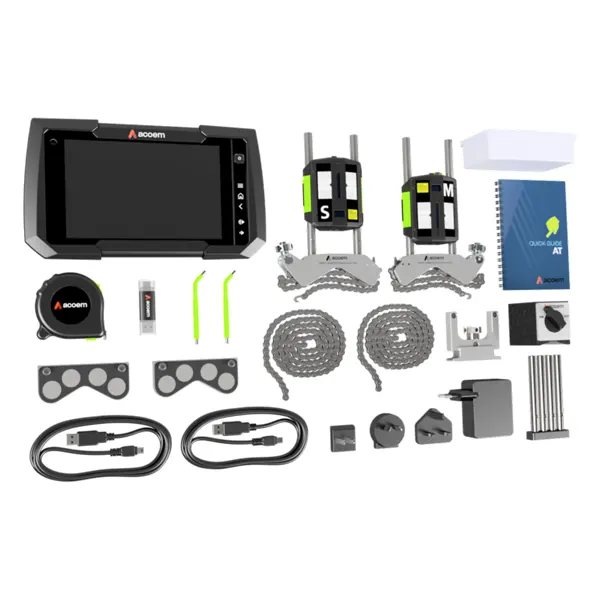

Acoem AT-300 Shaft Alignment System – What is Included
- Acoem AT Display Unit
- Acoem S10 Alignment Sensor
- Acoem M10 Alignment Sensor
- V-Bracket Complete x2
- Quick Guide AT
- USB-Cable A-Mini B 2m (6.5 ft)
- Chain 8mm (0.3 in) 60 Links (L=970mm (38.2 in))
- Power Supply 4 USB-Ports 5 VDC
- Magnetic V-Brackets x2
- Extension Fixture 49mm (1.93 in)
- Magnetic Base On-Off
- Tape Measure (16.5 in)
- Acoem USB
- Angled Universal Tool x2
- Rod Kit
Acoem AT-300 Shaft Alignment System Specifications
|
M10 & S10 Sensors
|
|
|---|---|
|
Hardware Type
|
M10 1-1216, S10 1-1217
|
|
Physical
|
|
|
Housing Material
|
Anodized Aluminum frame and high impact ABS plastic overmolded with TPE rubber.
|
|
Weight
|
M10: 7.5 oz (212 g)
S10: 6.6 oz (188 g) |
|
Dimensions
|
M10: 3.6 in x 3.0 in x 1.3 in (92mm x 77mm x 33mm)
S10: 3.5 in x 3.0 in x 1.3 in (88mm x 77mm x 33mm) |
|
Acoem AT-300 Shaft Alignment System Environment
|
|
|
Operating Temperature
|
14 to 122 °F (-10 to 50 °C)
|
|
Storage Temperature
|
-4 to 158 °F (-20 to 70 °C)
|
|
Long Term Storage Room Temperature
|
64 to 82 °F (18 to 28 °C)
|
|
Battery Charging Temperature
|
32 to 104 °F (0 to 40 °C)
|
|
Relative Humidity
|
10 – 90 %
|
|
Environmental Protection
|
IP65 (Dust tight and protected against water jets)
|
|
Sensing Technology
|
|
|
Laser
|
650 nm class II diode laser
|
|
Laser Power
|
< 1 mW
|
|
Measurement Distance
|
Up to 49 ft (15m)
|
|
Detector
|
3rd Gen. Digital Sensor
|
|
Detector Angular Subtense
|
30mrad/m (3mm/100mm per meter)
|
|
Detector Resolution
|
1 μm
|
|
Measurement Accuracy
|
0.3% ± 7 μm
|
|
Signal Processing
|
Digital signal processing with sidespot rejection, edge detection, ambient light elimination and anti-vibration mode.
|
|
Ambient Light Protection
|
Optical filtering and ambient light signal rejection
|
|
Inclinometer
|
Dual High Performance MEMS inclinometers
|
|
Inclinometer Resolution
|
0.01 °
|
|
Inclinometer Accuracy
|
±0.2 °
|
|
Gyroscope
|
6-Axis MEMS Inertial Motion Sensor w/ Drift Compensation and Automatic Field Calibration
|
|
Gyroscope Accuracy
|
±1 °
|
|
Battery
|
|
|---|---|
|
Type
|
High Performance Li-ion Rechargeable Battery or External Power
|
|
Operating Time
|
20 Hours Continuous Use (Measuring)
|
|
Charging
|
8 Hours
|
|
LED Indicators
|
Unit State, Laser Transmission and 5 Battery Status Indicators with Instant Battery Check
|
|
Communication
|
|
|
Wireless Communication
|
Bluetooth Low Energy (Bluetooth 5)
|
|
Communication Range
|
33 ft (10m)
|
|
Connectors
|
1 USB Mini Port (IP67)
|
|
Acoem AT-300 Shaft Alignment System Display Unit
|
|
|
Display
|
Sunlight Readable, Capacitive Multi-Touch Display, Super-Hardened Gorilla Glass, Rain and Glove Mode
|
|
Display Size
|
8 in
|
|
Ruggedness Rating
|
IP67 (Including Ports), Waterproof and Dust-Tight
|
|
Operating Temperature
|
-4°F to 140°F (-20°C to 60°C)
|
