Acoem AT-100 Shaft Alignment System
$2,500
In Stock
- Manufacturer: ACOEM
- Model: AT-100
- Included: AT-100 package with case, 2 Sensors, M8 & S8, Rod kit NXA, 2 V-brackets complete with chain, 12.7mm Chain w/ 60 Links (L=500mm), Tape measure 5m, 2 pcs of USB cables, A-mini B, 2 m, Power supply 2 USB ports 5 VDC
Description

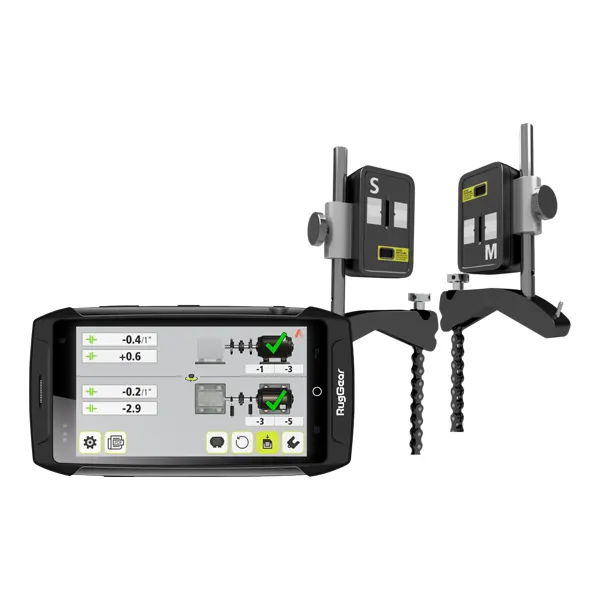

Acoem AT-100 Shaft Alignment System is a shaft alignment tool built by and for the user. Controlled by a rugged tablet, the system guides individuals through the alignment process with an intuitive application that couples with two wireless laser heads. Within minutes, the user can perform an alignment and save a report straight to their device.
Acoem’s Horizontal Alignment application was designed to take the mess out of aligning machines. The app utilizes our GuideU™ interface, which automatically guides the operator through 5 essential steps that take the guesswork out of alignment.
The Acoem AT-100 Shaft Alignment System solution is the result of almost 40 years of shaft alignment expertise and innovation, leveraging the latest technology to enhance your user experience.
With the AT-100, Acoem complements its product family of Shaft Alignment. Integrated apps, patented technology and easy connectivity make the AT-100 an app-based alignment tool.
Acoem AT-100 Shaft Alignment System Features
- Two wireless sensors with their accessories
- Task oriented Horizontal shaft alignment with mobile apps
- Easily create and share a PDF report containing all measurement data and images

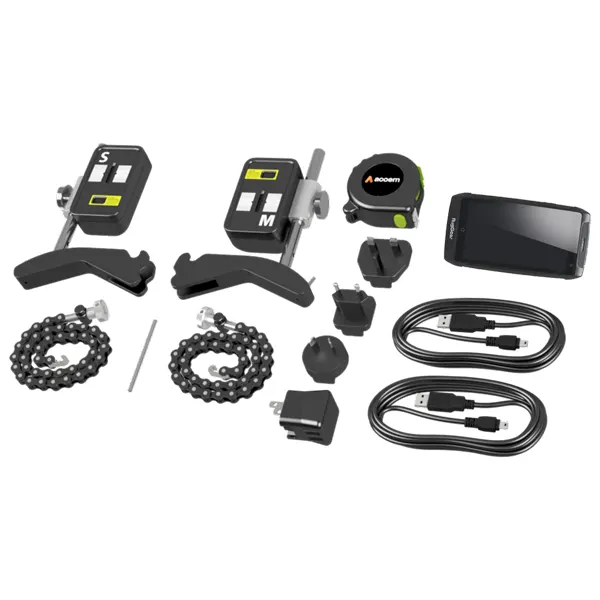

Acoem AT-100 Shaft Alignment System – What is Included
- AT-100 package with case
- 2 Sensors, M8 & S8
- Rod kit NXA
- 2 V-brackets complete with chain
- 12.7mm Chain w/ 60 Links (L=500mm)
- Tape measure 5m
- 2 pcs of USB cables, A-mini B, 2 m
- Power supply 2 USB ports 5 VDC
Acoem AT-100 Shaft Alignment System Specifications
| Hardware Type | M8 / S8 |
| Sensors | |
| Housing Material | Anodized Aluminum frame and high impact ABS plastic |
| Weight | M8: 222 g (7,8 oz), S8: 222 g ww (7,8 oz) |
| Dimensions | 94 mm x 87 mm x 37 mm (3,7 in x 3,4 in x 1,4 in) |
| Environment | |
| Operating Temp | 0 to 50 °C (32 to 122 °F) |
| Storage Temp | -20 to 70 °C (-4 to 158 °F) |
| Long term storage Temp Room Temp | 18 to 28 °C (64 to 82 °F) |
| Battery Charging Temp | 0 to 40 °C (32 to 104 °F |
| Relative humidity | 10 – 90 % |
| Environmental protection | IP54 (Dust and flush-proof) |
| Sensing Technology | |
| Laser | 650 nm class II diode laser |
| Laser power | < 1 mW |
| Measurement distance | Up to 2 m |
| Acoem AT-100 Shaft Alignment System Detector | Digital line sensor |
| Detector length | 20 mm (1,2 in) |
| Detector resolution | 0,01mm |
| Measurement accuracy | 1 % ± 1 digit |
| Inclinometer resolution | 1 ° |
| Inclinometer accuracy | ±3 ° |
| Battery | |
| Type | High performance Li Ion battery or external power. |
| Operating time | 12 h |
| Charging | 8 h |
| Battery Capacity | 10.4 Wh |
| LED indicators | Wireless communication, laser transmission and battery status indicators |
| Communication | |
| Wireless communication | Class I Bluetooth transmitter |
| Communication range | 10 m (33 ft) |
| Acoem AT-100 Shaft Alignment System Connectors | 1 USB Mini port Charging: 5V, 0,5A |
