Acoem AT-400 Shaft Alignment System
$4,500
In Stock
- Manufacturer: ACOEM
- Model: AT-400
- Included: Acoem AT Display Unit, Acoem S9 Alignment Sensor, Acoem M9 Alignment Sensor, V-Bracket Complete x2, Quick Guide AT, USB-Cable A-Mini B 2m (6.5 ft), Chain 8mm (0.3 in) 60 Links (L=970mm (38.2 in)), Power Supply 4 USB-Ports 5 VDC, Magnetic V-Brackets x2, Extension Fixture 49mm (1.93 in), Magnetic Base On-Off, Tape Measure (16.5 in), Acoem T21*, Angled Universal Tool x2, Acoem USB, Rod Kit
Description
Acoem AT-400 Shaft Alignment System is a state-of-the-art solution for precision machinery alignment. With 2-axis PSD alignment sensors, dual sweep, and dual multipoint methods, it ensures accurate alignment over a 65 feet (20 meter) measuring distance. Featuring the user-friendly GuideU™ interface, cloud connectivity, and a lifetime warranty, the AT-400 is Acoem’s most comprehensive and user-centric alignment system.
Supplied with cloud connectivity, the Acoem AT-400 Shaft Alignment System allows users to effortlessly upload alignment reports to Acoem’s proprietary web portal, ensuring seamless data management and easy access to alignment records for analysis and comparison. With just a tap of a button, technicians can send their alignment reports directly to the portal, streamlining their process of documentation.
Acoem AT-400 Shaft Alignment System Features
- Measurement Programs: Horizontal Shaft Alignment, Vertical Shaft Alignment, Machine Train, SoftCheck, target values, Spacer Shaft Alignment, OL2R Live, Flatness
- Measurement Methods: Dual Sweep, Dual Sweep Express, Dual Multipoint, Dual Multipoint Express, Tripoint, Tripoint Express Method, Clock Method
- Interface Features: The Acoem AT-400 Shaft Alignment System interface is designed to make the user experience hassle-free as well as maximize user productivity, facilitate intuitive reporting, and ensure a consistent user experience across all measurements.

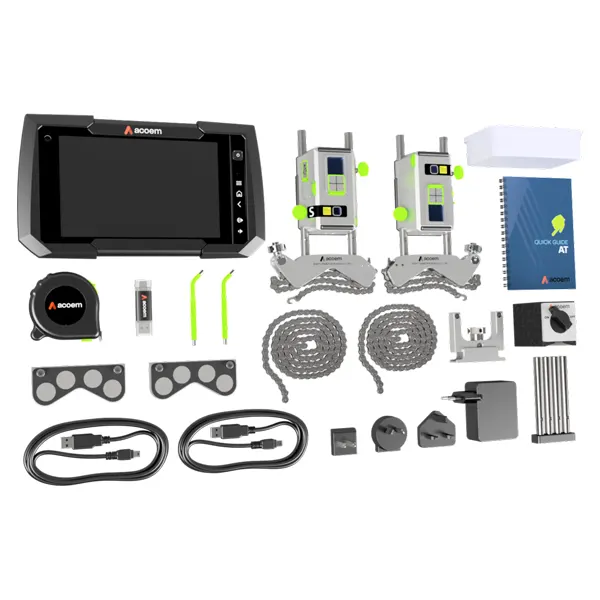

Acoem AT-400 Shaft Alignment System – What is Included
- Acoem AT Display Unit
- Acoem S9 Alignment Sensor
- Acoem M9 Alignment Sensor
- V-Bracket Complete x2
- Quick Guide AT
- USB-Cable A-Mini B 2m (6.5 ft)
- Chain 8mm (0.3 in) 60 Links (L=970mm (38.2 in))
- Power Supply 4 USB-Ports 5 VDC
- Magnetic V-Brackets x2
- Extension Fixture 49mm (1.93 in)
- Magnetic Base On-Off
- Tape Measure (16.5 in)
- Acoem T21*
- Angled Universal Tool x2
- Acoem USB
- Rod Kit
Acoem AT-400 Shaft Alignment System Specifications
|
M9 & S9 Sensors
|
|
|---|---|
|
Hardware Type
|
M9 1-1216, S9 1-1217
|
|
Physical
|
|
|
Housing Material
|
Anodized Aluminum frame and high impact ABS plastic.
|
|
Weight
|
M9: 10.8 oz (306 g)
S9: 10.8 oz (306 g) |
|
Dimensions
|
TD9: 3.9 in x 3.0 in x 1.7 in
(100mm x 77.3mm x 43mm) |
|
Acoem AT-400 Shaft Alignment System Environment
|
|
|
Operating Temperature
|
14 to 122 °F (-10 to 50 °C)
|
|
Storage Temperature
|
-4 to 158 °F (-20 to 70 °C)
|
|
Long Term Storage Room Temperature
|
64 to 82 °F (18 to 28 °C)
|
|
Battery Charging Temperature
|
32 to 104 °F (0 to 40 °C)
|
|
Relative Humidity
|
10 – 90 %
|
|
Environmental Protection
|
IP65 (Dust tight and protected against water jets)
|
|
Sensing Technology
|
|
|
Laser
|
650 nm class II diode laser
|
|
Laser Power
|
< 1 mW
|
|
Measurement Distance
|
2.48 in to 65.6 ft (63mm to 20m)
|
|
Detector
|
2-axis PSD
|
|
Detector Size
|
0.79 in x 0.79 in (20mm x 20mm)
|
|
Detector Resolution
|
1 μm
|
|
Measurement Accuracy
|
1% ± 3 μm
|
|
Signal Processing
|
Digital signal processing with sidespot rejection, edge detection, ambient light elimination and anti-vibration mode.
|
|
Ambient Light Protection
|
Optical Filtering and Ambient Light Signal Rejection.
|
|
Inclinometer
|
Dual High Performance MEMS inclinometers
|
|
Inclinometer Resolution
|
0.01 °
|
|
Inclinometer Accuracy
|
±0.1 °
|
|
Gyroscope
|
6-Axis MEMS Inertial Motion Sensor w/ Drift Compensation and Automatic Field Calibration
|
|
Gyroscope Accuracy
|
±1 °
|
|
Battery
|
|
|---|---|
|
Type
|
High Performance Li-ion Rechargeable Battery or External Power
|
|
Operating Time
|
8 Hours Continuous Use (Measuring)
|
|
Charging
|
8 Hours
|
|
LED Indicators
|
Unit State, Laser Transmission and 5 Battery Status Indicators with Instant Battery Check
|
|
Communication
|
|
|
Wireless Communication
|
Bluetooth Low Energy (Bluetooth 5)
|
|
Communication Range
|
33 ft (10m)
|
|
Connectors
|
1 USB Mini Port (IP67)
|
|

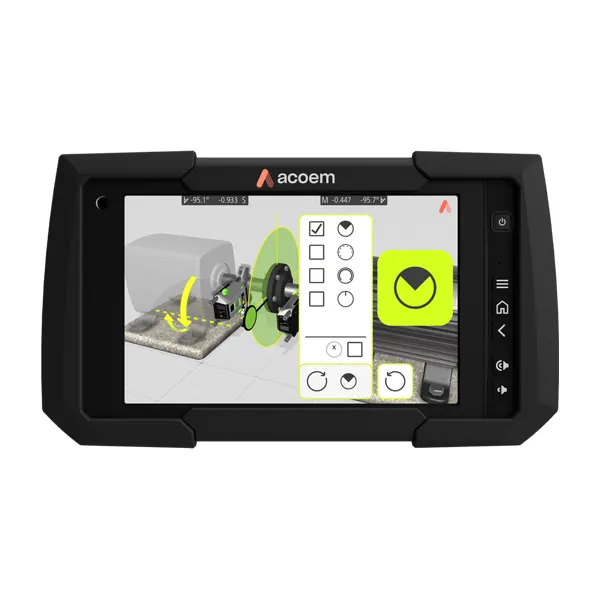

Acoem AT-400 Shaft Alignment System Display Unit
|
|
|
Display
|
Sunlight Readable, Capacitive Multi-Touch Display, Super-Hardened Gorilla Glass, Rain and Glove Mode
|
|
Display Size
|
8 in
|
|
Ruggedness Rating
|
IP67 (Including Ports), Waterproof and Dust-Tight
|
|
Operating Temperature
|
-4°F to 140°F (-20°C to 60°C)
|
