Acoem Fixturlaser EXO Shaft Alignment Tool

$4,100

In Stock

Manufacturer: ACOEM
Model: Fixturlaser EXO
Included: Tablet EX – ATEX/IECEx Zone 2 certified including ruggedized IP68 tablet device, M4 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II, S4 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II, EXO V brackets, including 4-85mm rods and 2-160mm chains, Carrying case – IP-65, high impact ABS, EVO tape measure, USB stick, Manual – EXO, Lifetime warranty standard

Acoem Fixturlaser EXO Shaft Alignment Tool is an intrinsically safe shaft alignment tool build for hazardous environments. The core values have led to the development of several first industry functions, where True Live and VertiZontal™ Moves are unique on the market for laser-based shaft alignment tools.

With the Acoem Fixturlaser EXO Shaft Alignment Tool, you get above all facilitates easy precision shaft alignment, on-the-job time saving, improved reliability and most importantly, money savings, in an intrinsically
safe shaft alignment package.

Acoem Fixturlaser EXO Shaft Alignment Tool Features

Horizontal Alignment: Measures and helps correct misalignment while dual sensors maintain the true position of the shafts, even as unintended movements are experienced during the alignment process.
Vertical Alignment: Same power and ease of use as the Horizontal Alignment program. The vertical alignment program is used when aligning flanged-mounted machines.
Verti-Zontal: Acoem Fixturlaser EXO Shaft Alignment allows for the vertical and horizontal adjustments to be made together in one pass, saving valuable time and ensuring accuracy the first time around.
Machine Train: Acoem’s Machine Train application, is a dedicated program specifically for the complex task of multi-coupling shaft alignment in machine trains.

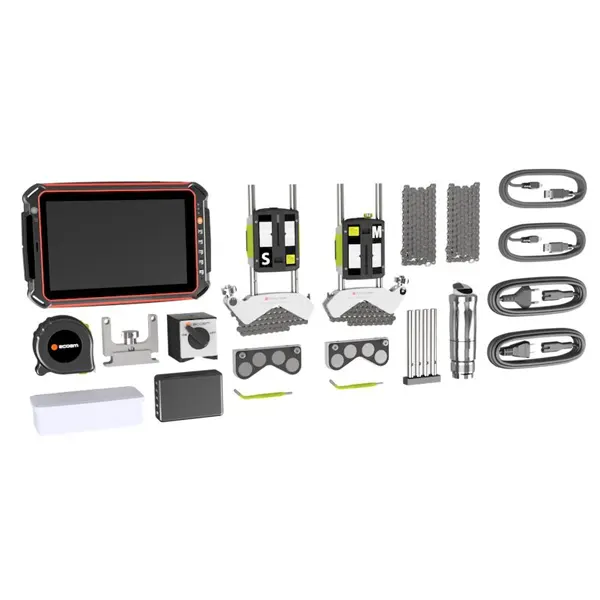

Acoem Fixturlaser EXO Shaft Alignment Tool – What is Included

Tablet EX – ATEX/IECEx Zone 2 certified including ruggedized IP68 tablet device
M4 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
S4 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
EXO V brackets, including 4-85mm rods and 2-160mm chains
Carrying case – IP-65, high impact ABS
EVO tape measure
USB stick
Manual – Acoem Fixturlaser EXO Shaft Alignment
Lifetime warranty standard

Acoem Fixturlaser EXO Shaft Alignment Tool Specifications

TD-units M4 Ex 1-1043/S4 Ex 1-1044
Weight including all standard parts:	6,6 kg (14,6 lbs)
Weight:	M4 Ex: 220 g (7,8 oz) S4 Ex: 190 g (6,7 oz)
Dimensions:	92 mm x 77 mm x 33 mm (3,6 in x 3,0 in x 1,3 in)
Operating Temp:	0 to 50°C (32 to 122°F)
Storage Temp:	-20 to 70°C ( -4 to 158°F)
Relative humidity:	10 – 90%
Environmental protection:	IP 65 (Dust tight and protected against water jets)
Laser	650 nm class II diode laser
Laser power	< 1 mW
Measurement distance	Up to 5 m
Detector	2nd generation digital sensor
Detector length	30 mm ( 1,2 in )
Detector resolution	1 μm
Measurement accuracy	0,3% ± 7 μm
Acoem Fixturlaser EXO Shaft Alignment Tool Signal processing:	Digital signal processing with sidespot rejection, edge detection, ambient light elimination, and anti-vibration mode
Inclinometer:	Dual High Performance MEMS inclinometers
Inclinometer resolution	0,01°
Inclinometer accuracy	±0,2°
Wireless communication:	Class I Bluetooth transmitter
Communication range	10 m (33 ft)
Charging:	5V, 0,5A
Acoem Fixturlaser EXO Shaft Alignment Tool Operating time:	12 hours continuous use (measuring)
Battery Charging time (system off, room temperature	5 hours
Shaft brackets:
Shaft diameter:	Ø 25-175 mm (1”-6.9”) Ø 25-450 mm (1”-18”) (with extension chains)
Rods:	4 pcs 100 mm (3,9 in) and 4 pcs 150 mm (5,9 in) Extendable to 250 mm (9,8 in)
