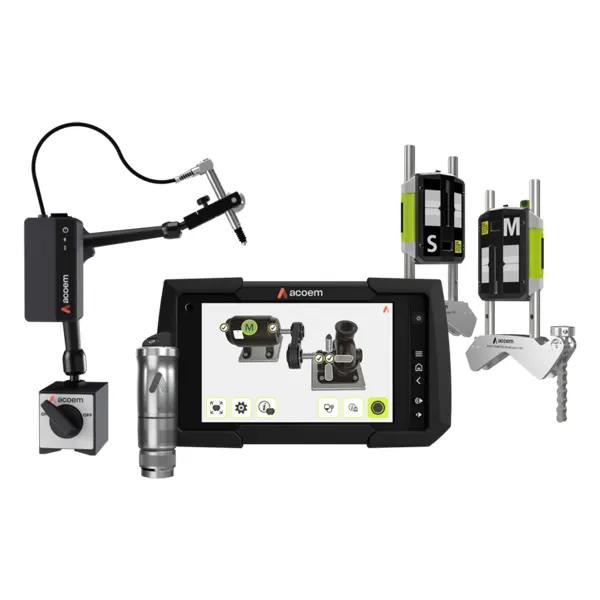

Acoem RT-300 Shaft Alignment Tool

Acoem RT-300 Shaft Alignment Tool takes the guesswork out of machine health. It’s the perfect tool for maintenance teams that need a grab-and-go solution for keeping machines running at optimum levels.

Powered by the suite of intuitive applications offered by Acoem, this RT-300 Shaft Alignment Tool does it all: shaft alignment, vibration analysis, spot inspections on bearings, and safe and reliable measurement with the unique probe for of all pre-alignment checks.

The Acoem RT-300 Shaft Alignment Tool offers a unique maintenance solution by seamlessly integrating:

• On-the-spot machine diagnostics
• Precise shaft alignment capabilities
• Cloud connectivity for storing reports and accessing historical data.

Acoem RT-300 Shaft Alignment Tool Features

• Accurex™ Ai: Patented AI solution that provides immediate, easy-to-understand machine diagnostics
  A Centralized System: Accurex AI for automatic diagnosis and cloud-connected
• Wireless Sensor: Tri-axial and piezoelectric sensor with simultaneous triaxial vibration + temperature
  Runout Probe and Stand: Linear variable displacement transducer (LVDT) with a three-joint articulated arm
• Thoughtfully Designed: Rugged tablet-based system pre-loaded with 5 unique applications
• Capabilities: Vibration and alignment in one

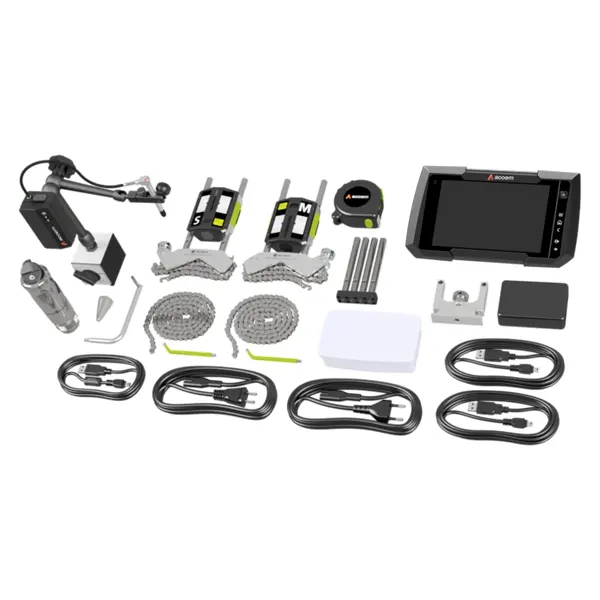

Acoem RT-300 Shaft Alignment Tool – What is Included

• 2 pcs of digital alignment sensors
• 2 pcs of V-brackets complete with chain
• Runout probe
• Sensor stand (without magnetic base)
• Adjustable probe tip
• Wireless Sensor: triaxial and piezoelectric
• Magnetic base
• Rod kit
• 2 pcs of chains, 8 mm, 60 links (L=970 mm)
• Tape measure 5 m
• 2 pcs of angled universal tools
• Ext power cable EUR 2 m
• Extension fixture 49 mm
• Ext power cable US 2m
• USB-cable A-mini B 2m
• USB-cable A-micro B 1,5m
• Power supply 5 USB-ports 5 VDC

Acoem RT-300 Shaft Alignment Tool Specifications

• Detector: 30 mm, 3rd Generation Digital Sensor
• Measurement Accuracy: 0.3% ± 7 µm
• Measurement Range: LVDT \(\pm 2.5\) mm
• Measurement Type: 3-axial simultaneous, 51.2 kHz sampling, \(F_{max}\) 20 kHz
• Wireless: 2.4 GHz WiFi (up to 25 meters line of sight)
• Environmental Protection: IP65
• Operating Temp: -20°C to 60°C
• Battery: Lithium-ion, 8-hour operating time, ~8-hour charge time.
