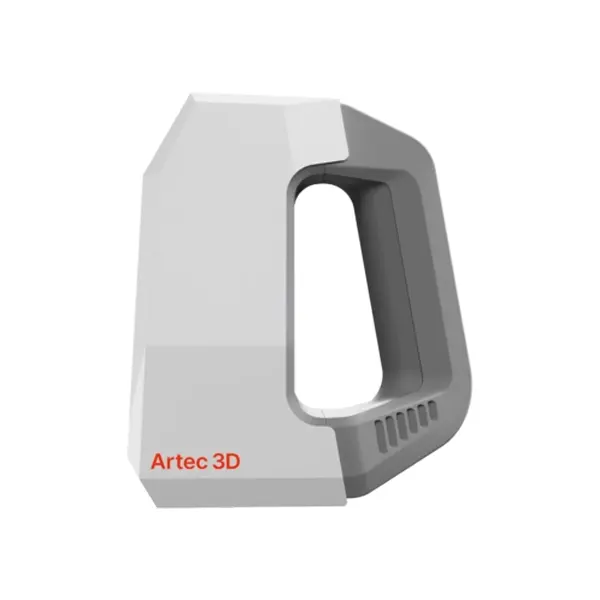

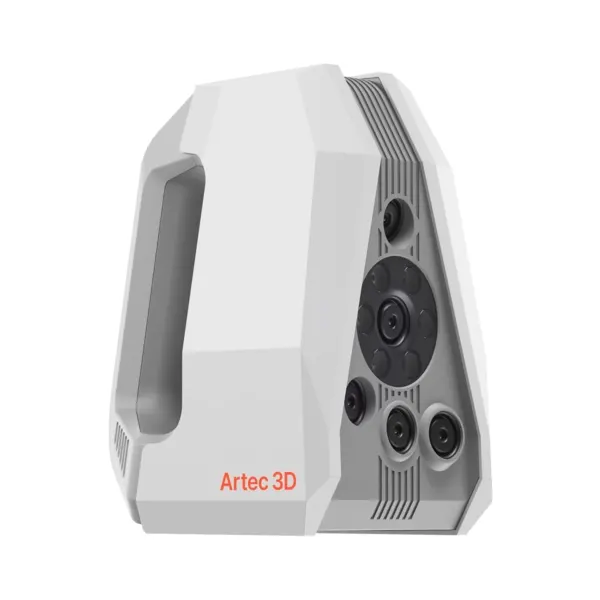

Artec Spider II 3D Laser Scanner is designed to easily capture complex objects, sharp edges, and fine lines with incredible level of detail. The 0.05 mm resolution of this 3D scanner allows it to faithfully digitize everything from inscriptions on a coin to larger industrial parts. The acquired data are of high quality and represent an impeccable geometric acquisition with a rich color palette for 3D models that are always realistic.
The fast capture speed and the absence of targets allows a simple and intuitive scan, without neglecting any details.
Artec Spider II 3D Laser Scanner is a reliable solution, a perfect scanner for professionals who need high resolution, flexibility and exceptional details.
Artec Spider II 3D Laser Scanner Features:
- Unparalleled level of detail: The Spider II uses blue-light technology, combining ultra-high resolution and full color capture to deliver 3D models unmatched by anything currently on the market.
- Target-free scanning: The Artec 3D Spider II lets you scan easily, without targets.
- Fast and easy
- Realistic color: The Artec Spider II doesn’t just capture in high resolution, it’s paying attention to texture, too.
- Versatile and advanced
Artec Spider II 3D Laser Scanner Comes With
- Artec Spider II
- USB Cable
- Power Supply
- Battery Pack
- USB Kit
- Turntable
- Artec Studio Subscription License (5 Years)
- Artec Care (5 Years)
Artec Spider II 3D Laser Scanner Specifications
| Hardware | |
| Scanner type | Handheld |
| Power source | AC/DC power adapter, DC 24V |
| Interface | Thunderbolt 3, compatible with Thunderbolt 4 hosts |
| 3D structured-light source | 450 nm LED |
| Texture illumination source | White LED CRI > 95, color temperature 4000 K |
| Dimensions H×D×W | 187 × 156 × 118 mm |
| Weight | 0.95 kg / 2.1 lbs |
| Compatibility | |
| Supported OS | Windows 10 x64, Windows 11 |
| Recommended computer parameters | 13th or 14th Gen Intel Core i7 or i9 processors, RTX 4070 8 GB |
| Minimum computer requirements | 12th Gen Intel Core i9 processor, RTX 4060 8 GB |
| Output formats | |
| 3D mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD | STEP, IGES, X_T |
| Measurements | CSV, DXF, XML |
