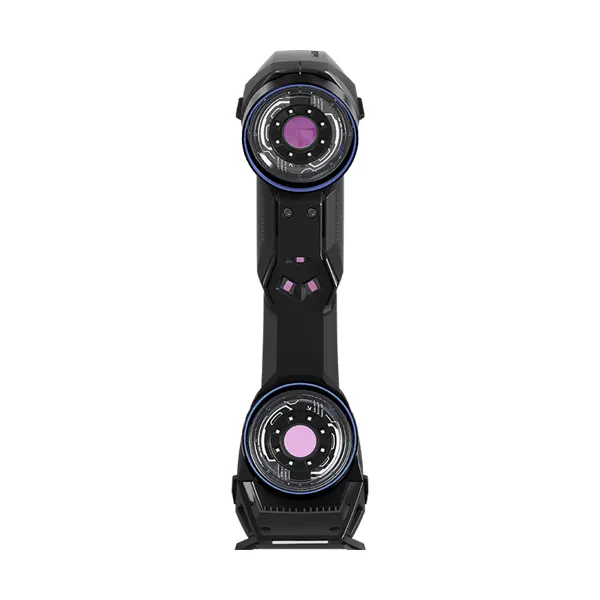

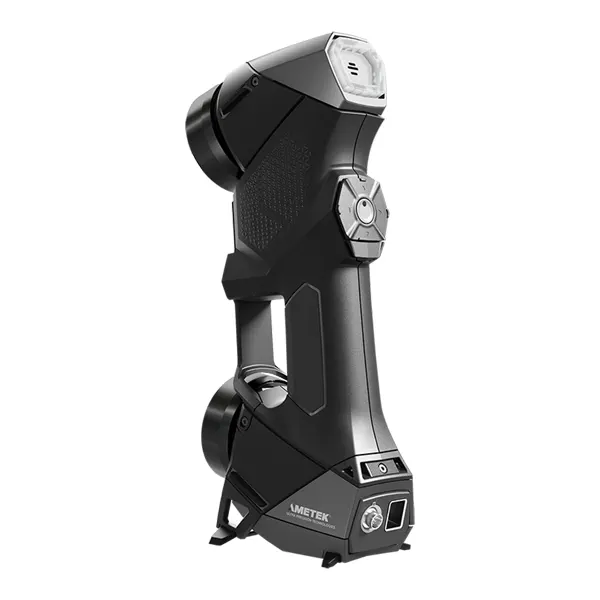

Creaform HandySCAN 3D Black Series

Creaform HandySCAN 3D Black Series is a metrology-grade handheld 3D laser scanner built for accurate and reliable 3D measurement across all part sizes, surface types, and materials. It delivers results within seconds, anywhere.

Certified based on the most rigorous industry standards, this fast and versatile handheld 3D scanner is easy to use and captures highly detailed measurements—even under challenging environmental conditions and on complex surfaces.

Creaform HandySCAN 3D Black Series – Accurate, Reliable & High-Resolution 3D Measurements

The HandySCAN 3D BLACK Series delivers accurate, high-resolution, and repeatable results, regardless of the measurement setup and user experience level. With its high volumetric accuracy, the BLACK Series accurately scans parts of all sizes, from small to large, making it ideal for various applications.

Creaform HandySCAN 3D Black Series – Portable 3D Laser Scanner

This handheld 3D laser scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.

Creaform HandySCAN 3D Black Series – Faster 3D Scanning Process

The Creaform HandySCAN 3D BLACK Series supports automatic mesh generation, streamlining the workflow from setup to scan to mesh. Its Flex Volume feature also allows for rapid, high-quality measurements of large parts from a distance and precise scanning of smaller parts at a closer range.

Creaform HandySCAN 3D Black Series Specifications

• Accuracy: 0.025 mm (0.0010 in)
• Volumetric accuracy: (based on part size) 0.020 mm + 0.040 mm/m (0.0008 in + 0.0005 in/ft)
• Form error (Sphere): N/A
• Form error (Flat): N/A
• Form error (Sphere): N/A
• Pin: 0.750 mm (0.0295 in)
• Hole: 1.250 mm (0.0492 in)
• Step: 0.025 mm (0.0010 in)
• Wall: 0.500 mm (0.0197 in)
• Measurement resolution: 0.025 mm (0.0010 in)
• Mesh resolution: 0.100 mm (0.0039 in)
• Measurement rate: 1,300,000 measurements/s
• Light source: 22 blue laser lines(3) (+ 1 extra line)
• Working Distance: 200 to 450 mm (7.9 to 29.5 in)
• Depth of field: 250 mm (9.8 in)
• Part size range (recommended): 0.05-4 m (0.15-13.1 ft)
• Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
• Compatible software: 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)(4)
• Weight: 0.94 kg (2.1 lb)
• Dimensions (LxWxH): 79 x 142 x 288 mm (3.1 x 5.6 x 11.3 in)
• Connection standard: 1 X USB 3.0
• Operating temperature range: 5-40 °C (41-104 °F)
• Operating humidity range (non-condensing): 10-90%
• Certifications: EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
• Patents: Patents
