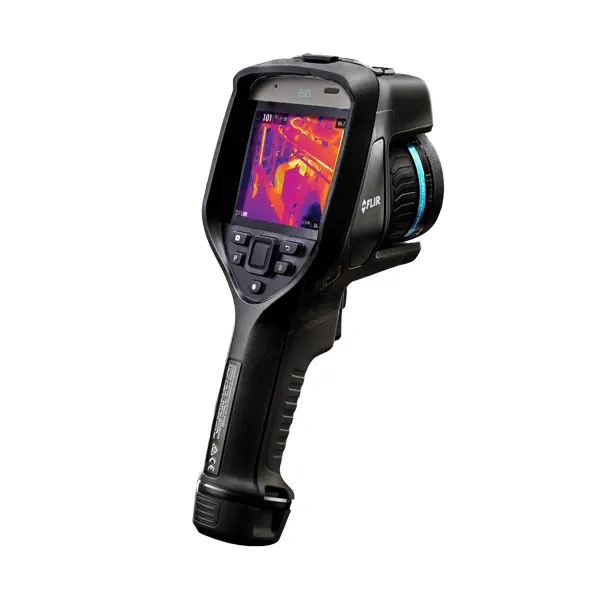

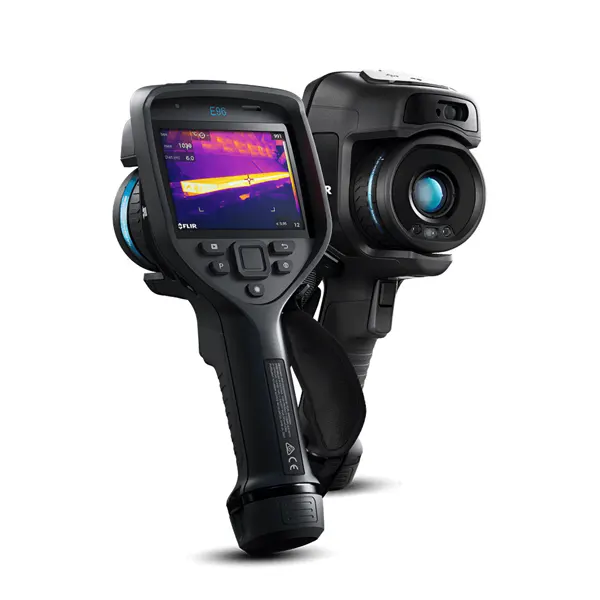

FLIR E96 Thermal Imaging Camera
$2,900
In Stock
- Manufacturer: FLIR
- Model: E96
- Included: Thermal Camera, 42° Lens, SD Card (8 GB), USB 2.0 A to USB Type-C Cable 1 M, USB Type-C to HDMI Adapter, Standard Specification UH311, USB Type-C to USB Type-C Cable (USB 2.0, Standard) 1 M, Screws, Accessory Box II, Accessory Box III, Torx T10 Wrench, Carabiner Hook, Front Protection, Front Protection Fastener, Lanyard Strap, Lens Cap Strap, Wrist Strap, Lens Cap, Hand Strap, Hand Strap Bracket Left and Right, Hard Carrying Case, Power Supply for Battery Charger, Power Supply, 15 W/3 A, Battery Charger, 2 x Battery, Printed Documentation, FLIR Thermal Studio Starter
Description
FLIR E96 Thermal Imaging Camera is the pinnacle of the incredible FLIR Exx-Series, the first FLIR pistol-grip camera with a 640 x 480 thermal resolution plus FLIR UltraMax and MSX technology incorporated.
The Flir Thermal Imaging Camera designed for quickly diagnosing electrical and mechanical failures while keeping the operator at a safe distance from potentially hazardous high-voltage targets.
FLIR E96 Thermal Imaging Camera with a temperature range of up to 1500˚C and a thermal sensitivity/NETD of <30mK at 30˚C (86˚F), FLIR E96 Advanced Thermal Imaging Camera use the vibrant & easy-to-interpret captured images to accurately detect hot spots and hidden deficiencies invisible to the naked eye.
FLIR E96 Thermal Imaging Camera Features:
- Top of the impressive FLIR Exx-Series
- Designed to avoid unexpected downtime & improving plant reliability
- Allows inspectors to remain at a safe distance from potentially hazardous targets.
- 640 x 480 pixel IR thermal detector
- Measure temperatures accurately up to 1500°C (2732°F)
- Thermal sensitivity/NETD of <30mK at 30˚C (86˚F)
- Automatically enabled FLIR Inspection Route
- Fully compatible with FLIR Thermal Studio & Route Creator Plugin
- FLIR MSX feature built-in
- Focus modes: Continuous LDM, one-shot LDM, one-shot contrast & manual
- Ideal for batch processing tasks
- Time-lapse feature – 10sec to 24hours
- FLIR-Screen EST mode included
- Uses FLIR 1-Touch Level/Span to improve image contrast
- Displays live Max/Min temperatures on screen
- GPS image tagging is done automatically
- Voice annotations via built-in mic or Bluetooth connection
- 4 Inch 640 x 480 pixel LCD touchscreen display with auto-rotation
- On-screen area measurement information in m² or ft²
- Includes 3 area measurement boxes
- Features 3 spotmeters
- Uses 6 colour palettes
- Picture-in-Picture mode available
- Ultramax function
- Laser distance meter for precise autofocusing
- 5MP digital camera with LED Photo/Video lamp
- The camera includes continuous 1-8x digital zoom
- Bluetooth and Wi-Fi connection
- Features USB 2.0 port & DisplayPort
- Laser distance meter included
- Laser pointer featured
- Removable 8GB SD memory card
- Storage modes including; Infrared, Visual, MSX®, Picture-in-Picture & Gallery
- Infrared mode only saves JPEG files with all measurement data included
- METERLiNK enabled for compatibility with other instruments
- Supplied with cable set
- Rugged carrying case
FLIR E96 Thermal Imaging Camera Included:
- FLIR E96 Thermal Imaging Camera
- 42° Lens, SD Card (8 GB)
- USB 2.0 A to USB Type-C Cable 1 M
- USB Type-C to HDMI Adapter
- Standard Specification UH311
- USB Type-C to USB Type-C Cable (USB 2.0, Standard) 1 M, Screws
- Accessory Box II
- Accessory Box III
- Torx T10 Wrench
- Carabiner Hook
- Front Protection
- Front Protection Fastener
- Lanyard Strap
- Lens Cap Strap
- Wrist Strap
- Lens Cap
- Hand Strap
- Hand Strap Bracket Left and Right
- Hard Carrying Case
- Power Supply for Battery Charger
- Power Supply, 15 W/3 A
- Battery Charger
- 2 x Battery
- Printed Documentation
- FLIR Thermal Studio Starter
FLIR E96 Thermal Imaging Camera Specifications:
| IR Resolution | 640 × 480 pixels |
| Thermal Sensitivity/NETD | <30 mK at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| FLIR E96 Thermal Imaging Camera – Imaging & Optical | |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Digital Zoom | 1-8× continuous |
| f-number | 1.1 |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| IR Resolution | 640 × 480 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity/NETD | <30 mK at 30°C (86°F) |
| UltraMax | Yes |
| Viewfinder | No |
| FLIR E96 Thermal Imaging Camera Measurement & Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) |
| Spot Meter | 3 ea. in live mode |
Specifications
| User Interface | |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| FLIR E96 Thermal Imaging Camera Power | |
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| Environmental & Certifications | |
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| General | |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, s2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
