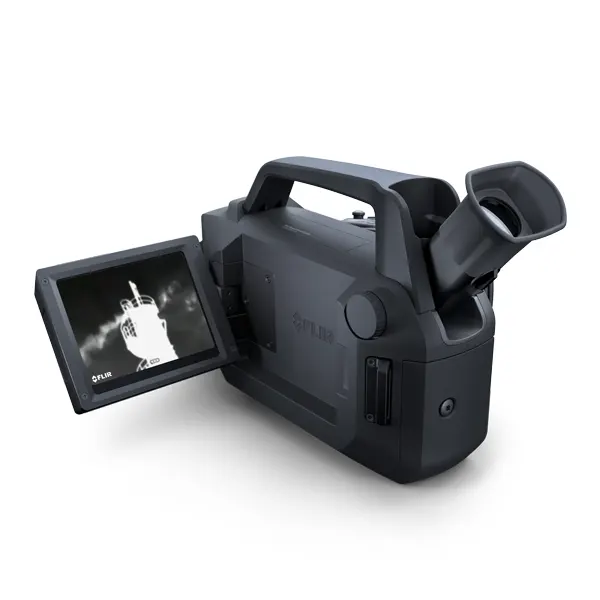

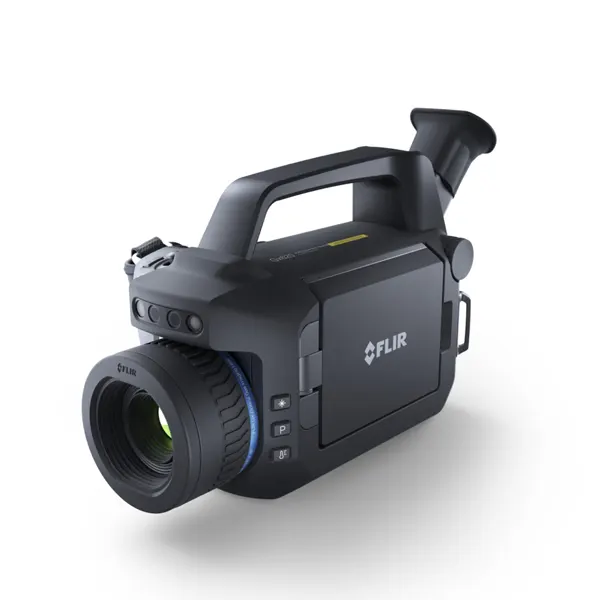

FLIR G304 Optical Gas Imaging Camera
$4,100
In Stock
- Manufacturer: FLIR
- Model: G304
- Included: Infrared camera with lens, battery (2 pcs), battery charger, power supply including multi-plugs, hand strap, neck strap, lens cap, lens cap strap, memory card, HDMI-HDMI cable, USB cable, screwdriver TX20, knob screw (optional screw for the rear cover), printed documentation, hard transport case
Description
FLIR G304 Optical Gas Imaging Camera is an innovative Optical Gas Imaging (OGI) camera used to detect possible hydrofluorocarbon, refrigerant, and other industrial gases in production facilities and chemical plants. Refrigerant gases are potentially toxic, environmentally harmful, and they are heavily regulated.
With the portable, non-contact FLIR G304 Optical Gas Imaging Camera, you can safely and efficiently scan large areas without interfering, shutting down, or disrupting large-scale storage and refrigeration operations.
Flir G304 Optical Gas Imaging Camera Features
- Superior gas visualization: The FLIR G304 uses FLIR’s patented High-Sensitivity Mode (HSM), which makes leaks stand out more clearly while allowing you to efficiently scan thousands of components and accurately measure temperatures from -40°C to 500°C (-40°F to 932°F)
- Record and report findings efficiently: Built-in Wi-Fi and Bluetooth® allow you to connect to smartphones or tablets and effortlessly edit and store images in the cloud, or wirelessly transfer files using the included FLIR Ignite™ cloud service
- Ergonomic for comfortable operation: Comfortably operate and interact with your G304 thanks to its rotating 10.16 cm (4 in) LCD touchscreen, which allows you view targets from any direction
Flir G304 Optical Gas Imaging Camera Contents of the Package
- Infrared camera with lens
- Battery (2 pcs)
- Battery charger
- Power supply including multi-plug
- Hand strap
- Neck strap
- Lens cap
- Lens cap strap
- Memory card
- HDMI-HDMI cable
- USB cable
- Screwdriver TX20
- Knob screw (optional screw for the rear cover)
- Printed documentation
- Hard transport case
Flir G304 Optical Gas Imaging Camera Specification
| IR Resolution | G304 14.5°: 320 × 240 (76,800 pixels) G304 24°: 320 × 240 thermal resolution (76,800 pixels) |
|---|---|
| Detector Pitch | 30 μm |
| Accuracy | ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F) |
| Spectral Range | 8.0 µm to 8.6 µm |
| Adjustable Viewfinder | Built-in, tiltable OLED, 800 × 480 pixels |
|---|---|
| Camera f-number | 1.59 |
| Color LCD | G304 14.5°: 4″, 640 × 480 pixel rotatable, touchscreen LCD G304 24°: 4″; 640 × 480 Pixels |
| Color Palettes | Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC |
| Detector Pitch | 30 μm |
| Detector Type | G304 14.5°: Focal plane array (FPA), cooled QWIP G304 24°: Cooled QWIP |
| Display Frame Rate | 60 Hz |
| Field of View | G304 14.5°: 14.5° × 10.8°, 23 mm (0.89 in) G304 24°: 24° × 18° fixed lens |
| FLIR G304 Optical Gas Imaging Camera Focus | Auto & Manual |
| Image Analysis | 10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections |
| Image Modes | IR image, visual image, high sensitivity mode (HSM), noise reduction filter |
| IR Resolution | G304 14.5°: 320 × 240 (76,800 pixels) G304 24°: 320 × 240 thermal resolution (76,800 pixels) |
| FLIR G304 Optical Gas Imaging Camera Laser Spot | Yes |
| MPEG Video Recording | Yes |
| On Camera Display | G304 14.5°: Widescreen 800 × 480 pixel LCD, Tiltable 800 × 480 pixel OLED viewfinder G304 24°: Widescreen 640 × 480 pixel LCD, Tiltable 640 × 480 pixel OLED viewfinder |
| Radiometric IR Video | RTRR (.csq), Over UVC |
| Radiometric JPG | Yes |
| Sensor Cooling | Stirling Microcooler (FLIR MC-3) |
| Spectral Range | 8.0 µm to 8.6 µm |
| Video Recording & Streaming | H.264 to memory card |
| Zoom | 1 – 8× continuous, digital zoom |
| Packaging Size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
|---|---|
| Size [L x W x H ] w Lens | 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in) |
| Weight [incl lens & batteries] | 3 kg (6.18 lb) |
