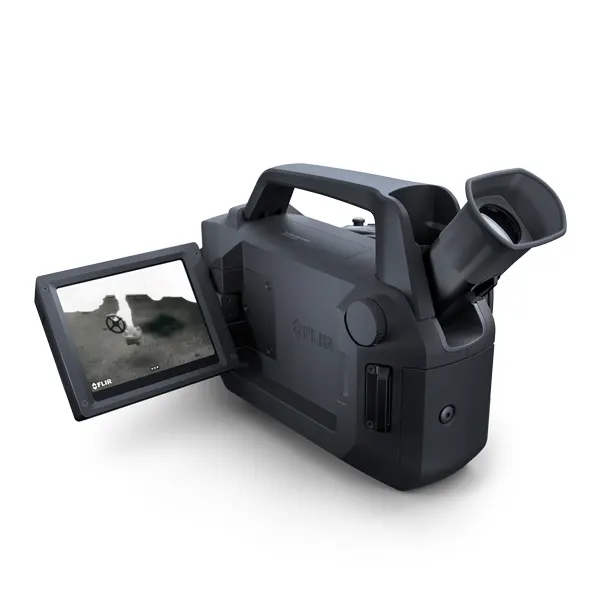

FLIR G346 Optical Gas Imaging Camera

$15,500

In Stock

Manufacturer: FLIR
Model: G346
Included: Infrared camera with lens, battery (2 pcs), battery charger, power supply including multi-plugs, hand strap, neck strap, lens cap, lens cap strap, memory card, HDMI-HDMI cable, USB cable, screwdriver TX20, knob screw (optional screw for the rear cover), printed documentation, hard transport case

FLIR G346 Optical Gas Imaging Camera is an innovative Optical Gas Imaging (OGI) camera used to detect carbon monoxide (CO), nitrous oxide (N₂O) and other dangerous and environmentally harmful gases in steel plants and industrial manufacturing facilities.

CO emissions can be a significant threat to primary steel manufacturing operations. Even the slightest leak in a vent stack or pipe can have a devastating effect. With the portable, non-contact FLIR G346 Optical Gas Imaging Camera, inspectors can scan large areas at safe distances without interfering or shutting down production and manufacturing operations.

Flir G346 Optical Gas Imaging Camera Features

Superior gas visualization: The FLIR G346 Optical Gas Imaging Camera accurately measures temperatures from -20°C to 300°C (-4°F to 482°F) in real time, and FLIR’s patented High-Sensitivity Mode (HSM) makes CO leaks stand out more clearly while allowing you to efficiently scan thousands of components
Record and report findings efficiently: Built-in Wi-Fi and Bluetooth® allow you to connect to smartphones or tablets and effortlessly edit and store images in the cloud, or wirelessly transfer files using the included FLIR Ignite™ cloud service
Ergonomic for comfortable operation: Comfortably operate and interact with your G343 thanks to a rotating 10.16 cm (4 in) LCD touchscreen which allows you view targets from any direction

Flir G346 Optical Gas Imaging Camera Contents of the Package

Infrared camera with lens
Battery (2 pcs)
Battery charger
Power supply including multi-plug
Hand strap
Neck strap
Lens cap
Lens cap strap
Memory card
HDMI-HDMI cable
USB cable
Screwdriver TX20
Knob screw (optional screw for the rear cover)
Printed documentation
Hard transport case

Flir G346 Optical Gas Imaging Camera Specification

IR Resolution	G346 14.5°: 320 × 240 (76,800 pixels) G346 24°: 320 × 240 thermal resolution (76,800 pixels)
Detector Pitch	30 μm
Accuracy	±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)
Spectral Range	4.52 µm to 4.67 µm

Adjustable Viewfinder	Built-in, tiltable OLED, 800 × 480 pixels
Camera f-number	1.59
Color LCD	4″, 640 × 480 pixel rotatable, touchscreen LCD
Color Palettes	Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC
Detector Pitch	30 μm
Detector Type	Focal plane array (FPA), cooled InSb
Display Frame Rate	60 Hz
Field of View	G346 14.5°: 14.5° × 10.8° G346 24°: 24° × 18° (23 mm)
FLIR G346 Optical Gas Imaging Camera Focus	Auto & Manual
Image Analysis	10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections
Image Modes	IR image, visual image, high sensitivity mode (HSM), noise reduction filter
IR Resolution	G346 14.5°: 320 × 240 (76,800 pixels) G346 24°: 320 × 240 thermal resolution (76,800 pixels)
Laser Spot	Yes
MPEG Video Recording	Yes
On Camera Display	Widescreen 800 × 480 pixel LCD, Tiltable 800 × 480 pixel OLED viewfinder
Radiometric IR Video	RTRR (.csq), Over UVC
Radiometric JPG	Yes
Sensor Cooling	Stirling Microcooler (FLIR MC-3)
Spectral Range	4.52 µm to 4.67 µm
Video Recording & Streaming	H.264 to memory card
Zoom	1 – 8× continuous, digital zoom

Packaging Size	G346 14.5°: 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) G346 24°: 400 mm × 190 mm × 510 mm (15.7 in × 7.5 in × 20.1 in)
Size [L x W x H ] w Lens	G346 14.5°: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in) G346 24°: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in)
Weight [incl lens & batteries]	3 kg (6.18 lb)
