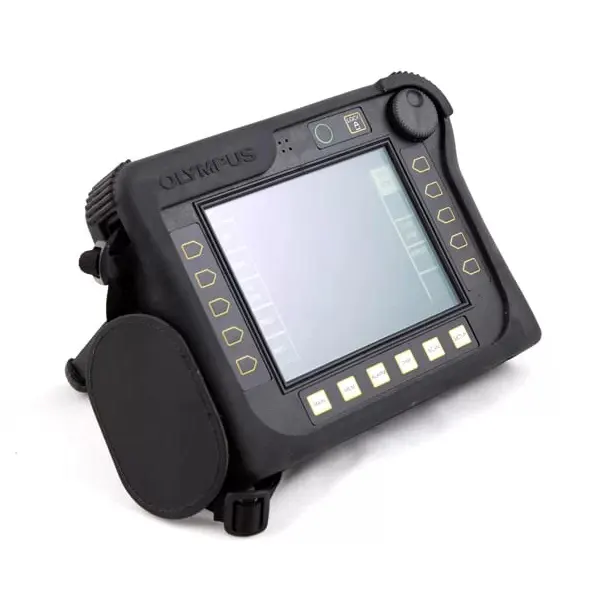

Olympus Nortec 500D Flaw Detector

Olympus Nortec 500D Flaw Detector is a versatile eddy current flaw detector for efficient detection of surface and subsurface defects. It features a user-friendly interface, multiple frequency capabilities, and comprehensive data analysis tools.

Olympus Nortec 500D Flaw Detector improves on previous Nortec eddy current instruments and is available in four configurations. Each configuration includes a USB port and increased resolution with reduced noise. Internal balance coils allow use of inexpensive absolute probes without the need or external balance coil adapters.

Olympus Nortec 500D Flaw Detector builtin preamp adds extra gain when needed for difficult tests. VGA output allows for the display to be projected or viewed on a standard computer screen. Olympus Nortec 500D Flaw Detector optional remote-null adapter adds convenience by allowing the probe to be nulled and the instrument screen erased from the probe.

Olympus Nortec 500D Flaw Detector Features:

• 50 Hz to 12 MHz frequency range
• Preamplifier (0 or 14 dB)
• Single Li-Ion battery, choice of two battery configurations: 2.4 Ahr or 8.8 Ahr
• Lightweight, 1.2 kg to 1.7 kg (2.8 lbs to 3.8 lbs) depending on battery configuration
• 165 mm (6.5 in.) full VGA color LCD (640 x 480 resolution)
• On-board storage of up to 200 programs
• On-screen reference memory for go/no go applications
• Internal balance loads for single coil probe support
• Display Freeze to hold flaw signals
• PowerLink technology – automatic probe recognition and instrument set-up
• Foreign Object Debris (FOD) free case design
• VGA output

Olympus Nortec 500D Flaw Detector Included:

• Olympus Nortec 500D Unit
• Hard Padded Transport Case
• Lithium Ion Battery
• External Smart Charger



You may also be interested in Olympus BondMaster 600 MultiMode Bondtester

Olympus Nortec 500D Flaw Detector Specifications:

GENERAL

Dimensions

(W x H x D)216 mm x 140 mm x 61 mm (8.5 in. x 5.5 in. x 2.4 in

Weight

1.2 kg to 1.7 kg (2.8 lbs to 3.8 lbs), depending upon configuration

Display

133 mm x 99 mm, 165 mm diagonal (5.25 in. x 3.9 in., 6.5 in.) full VGA color LCD (640 x 480 pixels)

Operating temperature

–10 ºC to 55 ºC (14 ºF to 122 ºF)

Humidity

5% to 95%

Classification

Based on Class 2 specifications from the MIL-PRF-28800F handbook

Altitude

Maximum operating and non-operating altitude – 4600 m (15,000 ft)

Hazardous area operation

Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Association Code (NFPA 70), Section 500, and tested using MIL-STD-810F, Method 511.4, Procedure 1

Probe types

Absolute and differential in either bridge or reflection configuration. The instrument is fully compatible with Nortec PowerLink probes.

Alarms

Can be set to trigger on positive or negative box, polar, or sweep alarm settings

Alarm modes

1 to 3 box gates, polar, sweep, conductivity, and coating thickness

Trace storage

Up to 200 traces can be stored for recall. The traces can be static or frozen and can contain up to 60 seconds of movement. The traces are stored with the date and time of capture.

Program storage

Up to 200 instrument set-ups may be stored and recalled. The date and time of storage is recorded with each set-up.

Print out

Provides a custom configurable report header containing the display screen data and probe parameters including serial numbers (PowerLink probes only)

MEASUREMENT

Frequency range

50 Hz to 12 MHz

Gain

0 dB to 90 dB in 0.1 dB steps. The horizontal and vertical gains may be adjusted separately or together.

Rotation

Variable 0º to 359º in 1º steps

Sweep

Variable from 0.005 s to 4 s per division

Low Pass filter

10 Hz to 500 Hz and wide band

High Pass filter

Off or 2.0 Hz to 500 Hz, 2 pole response

Built-in preamplifier

5X (14 dB) additional gain.

Probe drive

2 volts, 6 volts, 12 volts

Variable persistence

0.1 s to 5 s
