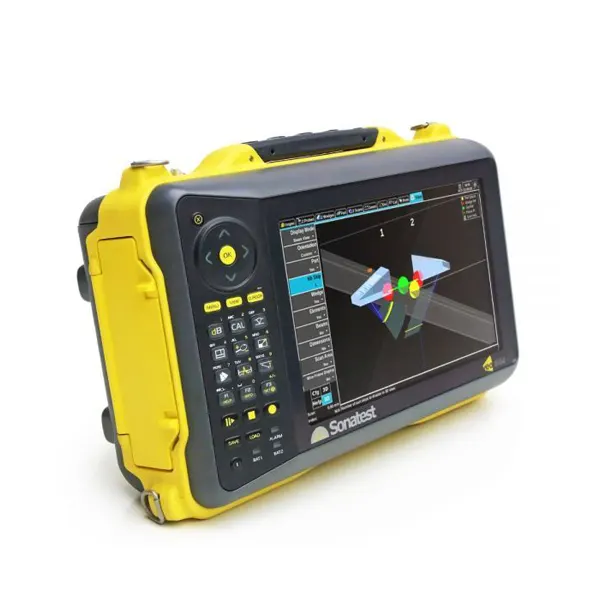

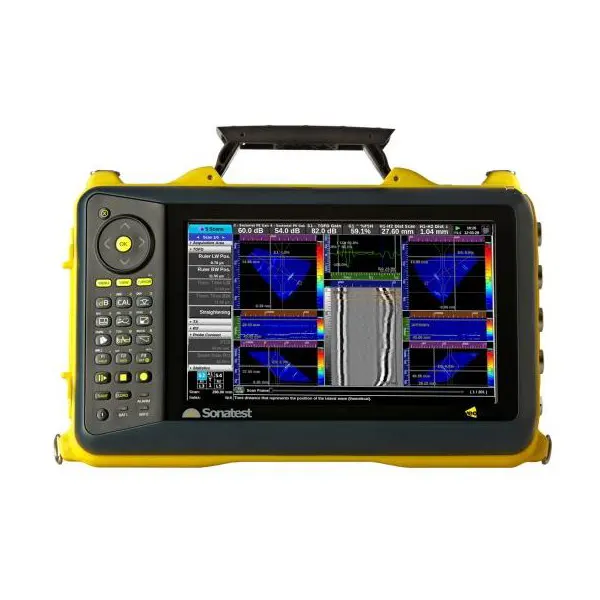

Sonatest Veo+ Flaw Detector
$3,700
In Stock
- Manufacturer: Sonatest
- Model: Veo+
- Included: Veo Plus Flaw Detector, Veo Plus USB memory key, WIFI USB key -, 2 x Lithium battery Veo Plus , Veo Plus power supply, Veo Plus Quick Start, Veo Plus User Guides, Carry strap Veo Plus , Veo Plus transportation case, UTstudio+ standard version (1 license)
Description
Sonatest Veo+ Flaw Detector is powered by a new architecture offering superior data throughput and unsurpassed computational capacity to deliver fast and accurate results in the most demanding conditions.
Sonatest Veo+ Flaw Detector allows inspectors to easily create high resolution volumetric scans and record very precise data sets with exceptional measurement precision.
The Veo+ Flaw Detector performances come from an impressive 32 channel PA beamformer providing exceptional SNR, enhanced digital signal processing and the legendary Sonatest ActiveEdge® pulser technology.
Sonatest Veo+ Flaw Detector Features:
- Superior Digital Technology
- Intuitive Menus and Workflow
- New FMC-TFM software option
- Remote Control Solution
- Advanced Analysis Software
- Ideal WheelProbe Partner
Sonatest Veo+ Flaw Detector Included:
- Veo+ Flaw Detector
- Veo+ USB memory key
- WIFI USB key –
- 2 x Lithium battery Veo+
- Veo+ power supply
- Veo+ Quick Start
- Veo+ User Guides
- Carry strap Veo+
- Veo+ transportation case
- UTstudio+ standard version (1 license)
Sonatest Veo+ Flaw Detector Specifications:
| General | PHASED ARRAY (32:128PR) | UT-TOFD (2PR) | Live TFM |
|---|---|---|---|
| Multiscan Quantity | Up to 8 scans | Up to 2 scans (UT & TOFD) | Up to 6 scans |
| Pulsers/Receivers | 32:128PR | 2PR (4 connectors) | Up to 64 elements probe |
| Gain Range | 80dB | 100dB | 80dB |
| Sampling Frequency | 125 MHz @ 12-Bit | 50/100/200 MHz @ 10-Bit | 125 MHz @ 12-Bit (processing 16-Bit) |
| System Bandwidth | 0.2 to 23 MHz | 0.2 to 18 MHz | 0.2 to 23 MHz |
| Max Pulse Rate Frequency | 50,000 Hz | 20,000 Hz | 50,000 Hz |
| Pulse Voltage | 100-50V ActiveEdge© | 400-100V ActiveEdge© | 100-50V ActiveEdge© |
| Focusing Mode | Natural or Constant Depth/Path/ Offset | n/a | Focusing in all points TFM & two TFM Intermode methods |
| S-Scan Resolution | Up to 0. 1° | n/a | Down to 0.01mm |
| L-Scan Resolution | Down to 1 element or Double Resolution | n/a | Down to 0.01mm |
| Max PA Beams (focal laws) | Up to 1024 beams | n/a | Up to 500,000 Pixels |
| Tools – Measurements and Wizard | EXTRACTION BOX, 4 gates/A-Scan, TCG, DAC/Split-DAC | 4 gates/A-Scan, TCG, DGS/ Split DGS, DAC/Split-DAC | 12 TFM algorithms, Up to 4 modes per TFMiTM, EXTRACTION BOX, 4 gates, Velocity, TCG, Amplitude fidelity, up to 20 cursors/view |
| Onboard Scan Plan Tools | Onboard 3D live rendering | Operating Time | 6 hours (hot swappable batteries) |
| Onboard Reporting Tools | PDF auto-report, Export data to CSV file, Save screen capture | Power Input | AC 110V/240V @ 50 Hz/60 Hz |
| Onboard PDF Reader Integrated | Ability to load and read and PDF documents | Unit Dimensions | 115 x 225 x 355 mm (4.52 x 8.6) |
| Online Help Calibration | ACTIVE help genius for parameter optimisation procedures, reports | Weight | 5.1 kg (11 lb) no battery, 460g |
| Standards | ISO18563 (EN16392) & EN12668 | Environmental Rating | Designed for: IP66 |
