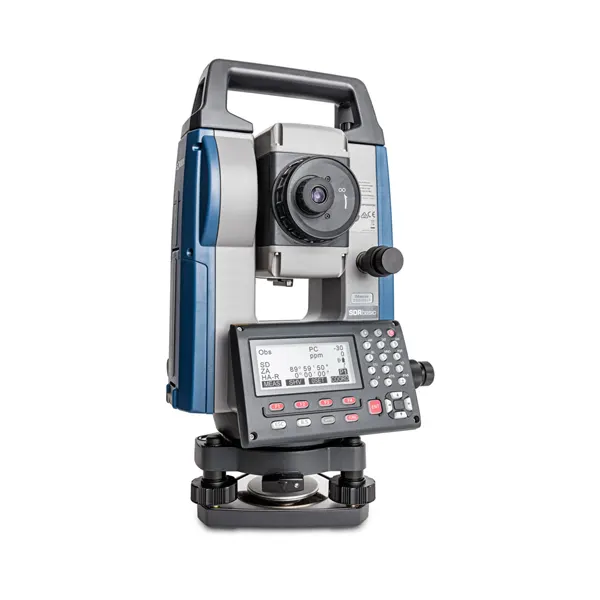

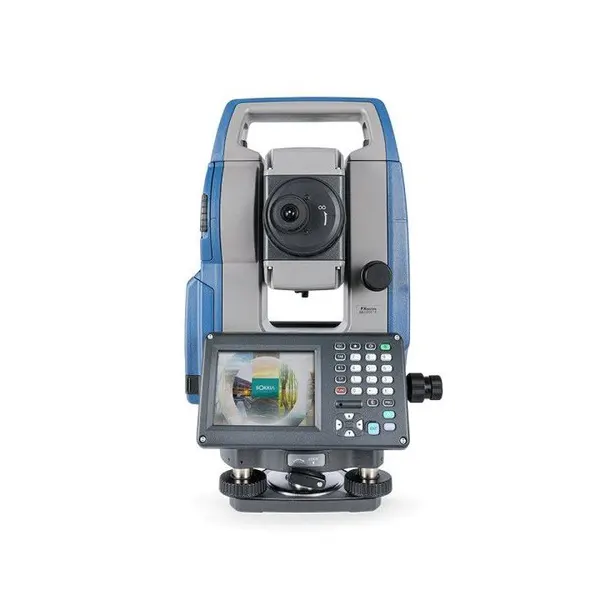

Sokkia IM 101 Total Station
$4,500
In Stock
- Manufacturer: Sokkia
- Model: IM 101 Total Station
- Included: (1) Sokkia iM-100 Series Reflectorless Total Station, (1) Lens cap and hood, (1) Tool pouch, (1) Precision screwdriver, (1) Lens brush, (2) Hexagonal wrench, (1) Cleaning cloth, (1) Power cable, (1) Battery, BDC70, (1) Battery charger, CDC68A, (1) CD-ROM manual, (1) Laser caution sign-board, (1) Carrying case with strap, (1) User manual
Description
Sokkia IM 101 Total Station is an intelligent measuring device that is easy-to-use and packed with advanced features. Sokkia IM 101 Total Station perfect for entry-level site layout and surveying, this total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy.
Sokkia IM 101 Total Station is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.
Sokkia IM 101 Total Station is faster, more accurate and powerful. Sokkia IM 101 Total Station is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles.
Sokkia IM 101 Total Station Features:
- Accuracy options: 1 second, 2 second, 3 second or 5 second
- Perfect for entry-level site layout and surveying
- Reflectorless up to 2,624 ft.
- Integrated Bluetooth capability which delivers data instantly to the controller
- 50,000 points of internal memory storage
- Laser plummet
- Dual-axis compensation
- Equipped with its new EDM technology which is more faster, accurate and powerful
- Up to 28-hour battery life
- Single graphic display
- Meets waterproof IP66 rating
Sokkia IM 101 Total Station Included:
- (1) Sokkia iM-100 Series Reflectorless Total Station
- (1) Lens cap and hood
- (1) Tool pouch
- (1) Precision screwdriver
- (1) Lens brush
- (2) Hexagonal wrench
- (1) Cleaning cloth
- (1) Power cable
- (1) Battery, BDC70
- (1) Battery charger, CDC68A
- (1) CD-ROM manual
- (1) Laser caution sign-board
- (1) Carrying case with strap
- (1) User manual
You may also be interested in FARO ION Laser Tracker
Sokkia IM 101 Total Station Specifications:
|
Model
|
IM-101
|
|
|
Telescope
|
||
|
Magnification/resolution power
|
30x/ 2.5″
|
|
|
Duration
|
171 mm (6.7 inches)
|
|
|
Objective opening
|
45 mm
(48 mm (1.9 inches) for MDE) |
|
|
|
Erect
|
|
|
Field of view
|
1° 30′ 26 m/1,000 m)
|
|
|
Minimum focus
|
1.3 m (4.3 ft)
|
|
|
Reticle illumination
|
5 brightness levels
|
|
|
Angle measurement
|
||
|
Screen resolution
|
1 cm and 5 cm
|
|
|
Accuracy (ISO 17123-3:2001)
|
1 ¢
|
|
|
IACS (Independent Angle Calibration System)
|
Provided
|
|
|
Two-axis compensator
Collimation compensation |
Dual-axis Liquid Tilt Sensor,
Operating Distance: ±6′(±111 mgon) / Collimation Compensation Available |
|
|
Distance measurement
|
||
|
Laser output
|
Reflectorless mode: Class 3R /
Prism/leaf mode: Class 1 |
|
|
Measuring range
(under average conditions) |
No reflector
Reflective sheet |
0.3 to 800 m (1.0 to 2,624 ft)
RS90N-K: 1.3 to 500 m (4.3 to 1,640 ft) RS5ON-K:1.3 to 300 m (4.3 to 980 ft) RS10N-K:1.3 to 100 m ((4.3 to 320 ft) |
|
Mini-prisms
An AP prism |
CP01: 1.3 to 2,500 m (8,200 ft),
OR1PA: 1.3 to 500 m (1,640 ft) 1.3 to 5,000 m (4.3 to 16,400 ft) / In good conditions: 6,000 m (19,685 ft) |
|
|
Screen resolution
|
Fine/Rapid: 0.001 m / 0.01 ft. / 1/8 in.
Tracking: 0.01 m / 0.1 ft. / 1/2 in. |
|
|
Accuracy ((So 17123-4:2001)
(D = measuring distance in mm) |
No reflector
APICP reflective sheet prism |
(2+2 ppm x D) mm7
(2+2 ppm x D) mm 1.5+ 2 ppm x D) 1.5 mm |
|
Measurement time
|
Fine: 0.9s ((Initial 1.5s),
Fast: 0.6s ((Initial 1.3s), Tracking: 0.4s (Initial 1.3s) |
|
|
Interface and data management
|
||
|
Display/Keyboard
|
Graphic LCD, 192 x 80 dots, backlight,
contrast adjustment / alphanumeric keyboard: 28 keys with backlight |
|
|
Control panel location
|
on both sides (second display is optional)
|
|
|
Trigger key
|
On the right instrument support
|
|
|
Data storage
|
Internal memory
Plug-in memory device |
Approximately 50,000 points
USB flash drive (max. 32 GB) |
|
Interface
|
Serial RS-232C, USB2.0
(Type A, for USB flash memory) |
|
|
– General
|
||
|
laser point
|
Coaxial red laser using EMD beam
|
|
|
Guiding light
|
Green LED (524 nm) and
Red LED ((626 nm), Operating range: 1.3 to 150 m (4.3 to 490 ft) |
|
|
Levels
|
Circular Level Chart ((in tribrach)
|
6 (Inner circle)
10’/ 2 mm |
|
Plate level
|
Regional dependents
|
|
|
Optical drop
(optional for NA, LA and EU) |
Magnification: 3x,
Minimum focus: 0.3 m (11.8 in) from the bottom of the tribrach |
|
|
Laser crashed
(optional for Oceana and Russia) |
Red laser diode (635nm ± 10nm),
Beam accuracy: ≤1.0mm at 1.3m, Class 2 laser product |
|
|
Dust/water classification
|
IP66 (IEC 60529:2001)
|
|
|
Operating temperature
|
-20 to +60°C
|
|
|
Size with handle
(W x H x D) |
Double-sided control panel: 183×181×348 mm
Single control panel: Make: 183×174×348 mm |
|
|
Weight with battery and tribrach
|
Approximately 50.3 kg
|
|
