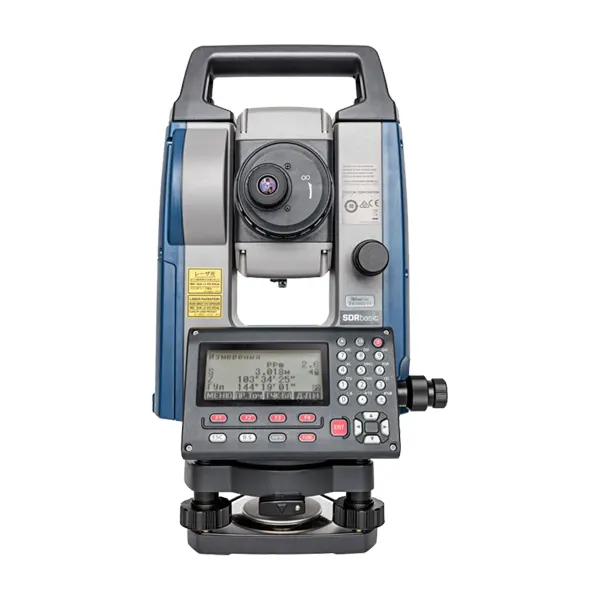

Sokkia IM 105 Total Station
$2,400
In Stock
- Manufacturer: Sokkia
- Model: IM 105 Total Station
- Included: (1) Sokkia iM-100 Series Reflectorless Total Station, (1) Lens cap and hood, (1) Tool pouch, (1) Precision screwdriver, (1) Lens brush, (2) Hexagonal wrench, (1) Cleaning cloth, (1) Power cable, (1) Battery, BDC70, (1) Battery charger, CDC68A, (1) CD-ROM manual, (1) Laser caution sign-board, (1) Carrying case with strap, (1) User manual
Description
Sokkia IM 105 Total Station is an intelligent measuring device that is easy-to-use and packed with advanced features. Sokkia IM 105 Total Station perfect for entry-level site layout and surveying, this total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy.
It is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.
Sokkia IM 105 Total Station is faster, more accurate and powerful. Sokkia IM 105 Total Station is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles.
Sokkia IM 105 Total Station Features:
- Accuracy options: 1 second, 2 second, 3 second or 5 second
- Perfect for entry-level site layout and surveying
- Reflectorless up to 2,624 ft.
- Integrated Bluetooth capability which delivers data instantly to the controller
- 50,000 points of internal memory storage
- Laser plummet
- Dual-axis compensation
- Equipped with its new EDM technology which is more faster, accurate and powerful
- Up to 28-hour battery life
- Single graphic display
- Meets waterproof IP66 rating
Sokkia IM 105 Total Station Included:
- (1) Sokkia iM-100 Series Reflectorless Total Station
- (1) Lens cap and hood
- (1) Tool pouch
- (1) Precision screwdriver
- (1) Lens brush
- (2) Hexagonal wrench
- (1) Cleaning cloth
- (1) Power cable
- (1) Battery, BDC70
- (1) Battery charger, CDC68A
- (1) CD-ROM manual
- (1) Laser caution sign-board
- (1) Carrying case with strap
- (1) User manual
Sokkia IM 105 Total Station Specifications:
| Model | iM105 Sokkia Total Station |
| Telescope | |
| Magnification / Resolving Power | 30x / 2.5″ |
| Length | 171mm (6.7in.) |
| Objective aperture | 45mm (48mm for EDM) |
| Image | Erect |
| Field of View | 1°30″ (26m / 1,000m) |
| Minimum focus | 1.3m |
| Reticle illumination | 5 brightness levels |
| Angle Measurement | |
| Display Resolution | 1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil) |
| Accuracy (ISO 17123-3:2001 | 5″ |
| Dual Axis Compensator | Dual-axis liquid tilt sensor, working range: ±6″ |
| Collimation Compensation | On/Off (selectable) |
| Distance Measurement | |
| Laser output (Reflectorless mode) | Class 3R / Prism / sheet mode: Class 1 |
| Range reflectorless mode | 0.3 to 800m (2,620ft.) / Under good conditions*: 1,000m (3,280ft.) |
| Reflective sheet | RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.),
RS10N-K: 1.3 to 100m (4.3 to 320ft.) |
| Mini Prism | 1.3 to 500m (4.3 to 1,640ft.) |
| One Prism | 1.3 to 5,000m (4.3 to 16,400ft.) / Under good conditions* : 6,000m (19,680ft.) |
| Display Resolution | Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable)
Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable) |
| Accuracy | Reflectorless: (2 + 2ppm x D) mm
Reflective Sheet: (2 + 2ppm x D) mm Prism Mode: (1.5 + 2ppm x D) mm |
| Measuring Time | |
| Fine Measurement Mode | 0.9 sec.(Intial 1.5 sec.) |
| Rapid Measurement Mode | 0.6 sec.(Intial 1.3 sec.) |
| Tracking Measurement Mode | 0.4 sec.(Intial 1.3 sec.) |
| OS, Interface and Data Management | |
| Operating system | Linux |
| Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 28 keys with backlight |
| Control panel location | On both faces |
| Trigger key | Yes (right side) |
| Data storage | Internal memory: Approx. 50,000 points
Plug-in memory device: USB flash memory (max. 32GB) |
| Interface | Serial RS-232C, USB2.0 (Type A for USB flash memory) |
| Bluetooth® modem (option) | Bluetooth Class 1.5, Operating range: up to 10m |
| General | |
| Laser pointer | Coaxial red laser using EDM beam |
| Guide light | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.) |
| Levels Graphic | 6″ (Inner Circle) |
| Circular Level | 10’/2mm |
| Optical Plummet | Magnification: 3x
Minimum focus: 0.5m from tribrach bottom |
| Dust and water protection | IP66 (IEC 60529:2001) |
| Operatig temperature | -4ºF to +122ºF (-20ºC to +50ºC) |
| Size with handle (w x d x h mm) | 183(W)x 181(D)x 348(H)mm |
| Weight with battery and tribrach | Approx. 5.3kg (11.7lb) |
| Power Supply | |
| Battery (BDC70) Detachable battery | Li-ion rechargeable battery |
| Operating time (20ºC) BDC70 | Approx. 28 hours (single distance measurement every 30 seconds) |
