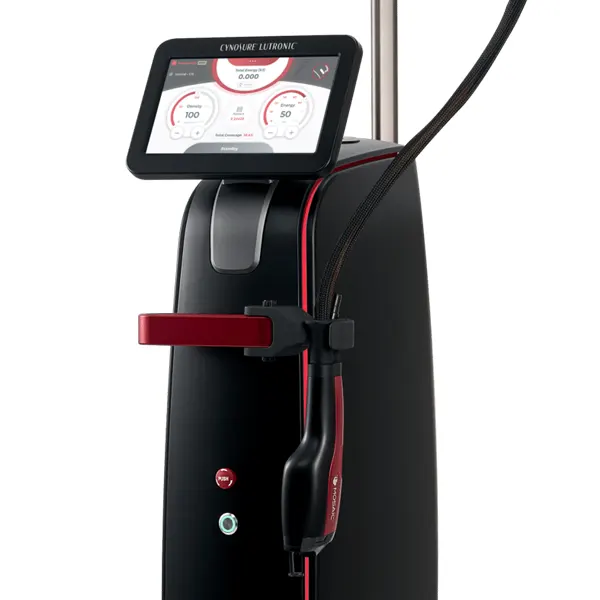

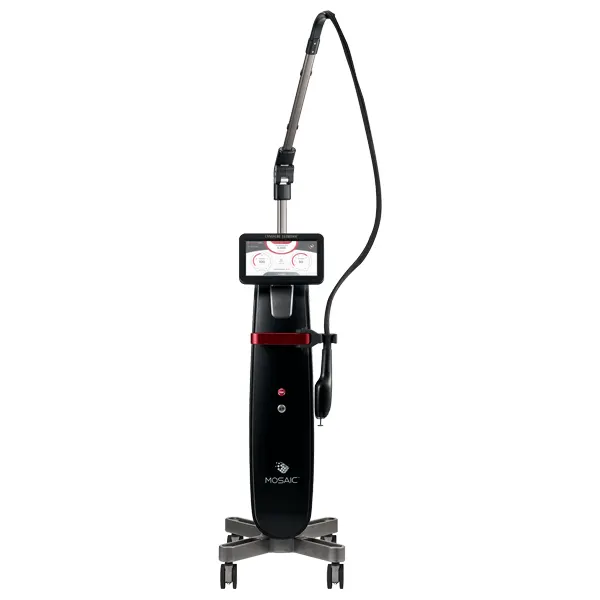

Cynosure Lutronic Mosaic 3D

Cynosure Lutronic Mosaic 3D is a 1550 nm non-ablative fractional erbium:glass laser designed for skin resurfacing and rejuvenation with minimal downtime. It combines both air-cooled rolling and sapphire-tip stamping in one versatile, effective platform.

With integrated cooling and customizable energy delivery, the Mosaic 3D Skin Rejuvenation System allows providers to safely and effectively treat sensitive areas around the eyes and mouth, as well as the entire face and body. These unique features help minimize patient discomfort, erythema, and edema while enhancing treatment efficacy and safety. 3D Controlled Chaos Technology™ (3D CCT) introduces a new dimension to our patented CCT scanning, enabling you to take resurfacing to the next level.

Cynosure Lutronic Mosaic 3D Key Benefits

• High-quality textural improvement around the eyes and mouth
• 3D CCT effectively stimulates mid-dermal collagen and elastin
• Cold-compression sapphire tips for patient comfort
• Boost ROI and differentiate your practice by offering comprehensive fractional resurfacing
• Elevated results with reduced downtime

How Cynosure Lutronic Mosaic 3D Works

The Cynosure Lutronic Mosaic 3D integrated cooling system enables providers to safely and effectively treat sensitive areas around the eyes and mouth. Cooled air flows through the handpiece and onto the unique cold-compression sapphire tips, which simultaneously cool and compress the skin. This helps reduce pain, erythema, and edema, while enhancing treatment efficacy, safety, and patient comfort. 3D Controlled Chaos Technology (3D CCT) optimizes the distribution and depth of multi-level microbeams, and reduces the risk of bulk thermal heating, allowing for increased treatment coagulation volume per stamp without compromising safety. The Mosaic 3D system also measures and tracks energy delivery, giving providers greater insight and confidence in the quality of each treatment.

Cynosure Lutronic Mosaic 3D Specifications

• Laser Type: 1550 nm Er:Glass.
• Technology: 3D Controlled Chaos Technology™ (3D CCT).
• Delivery System: Combined Metal Rollers (dynamic) and Sapphire Stamping tips (static).
• Pulse Energy: 4 to 70 mJ.
• Pulse Rate: Up to 447.4 Hz.
• Spot Size: Circle up to 12 mm / Rectangle up to 8×20 mm / Square up to 20×20 mm.
• Cooling: Integrated air cooling and cold-compression sapphire tips.
• Indications: Wrinkle improvement, acne scar treatment, skin textural irregularities, and tissue coagulation.
• Dimensions/Weight: 16” W x 23” D x 69” H / 73 lbs (33 kg)
