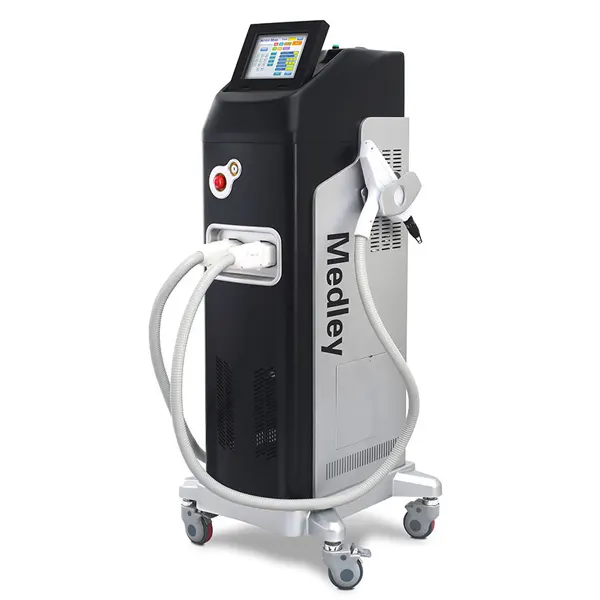

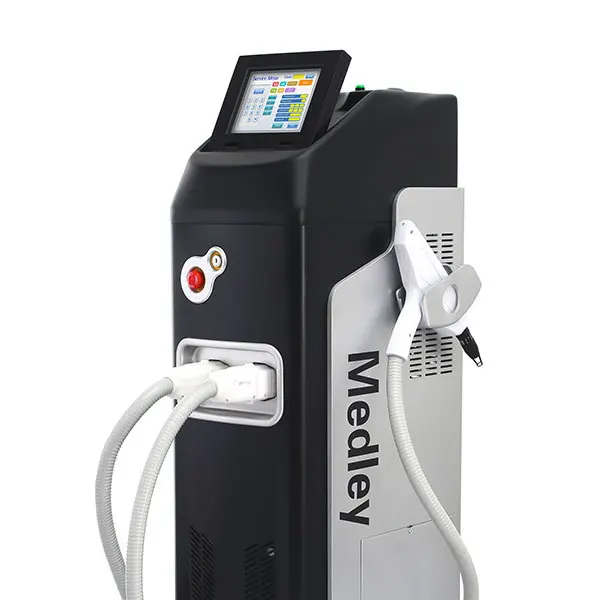

Ellman Sparkling Medley Multi-Platform Laser

Ellman Sparkling Medley is a multi-platform medical laser and intense pulsed light (IPL) device. Manufactured by Opto-Electrics, it is a highly versatile aesthetic machine designed for dermatology and plastic surgery clinics. It allows doctor offices to perform a wide variety of cosmetic skin treatments using a single base machine.

The Ellman Sparkling Medley from SWOT Lasers is an all-in-one system used by medical professionals to treat multiple skin issues. It is primarily used for:

• Tattoo Removal: Fading and removing tattoo inks of various colors.
• Hair Removal: Permanently reducing unwanted body and facial hair.
• Skin Rejuvenation: Reducing fine lines, wrinkles, and sun damage.
• Acne Treatment: Clearing active acne and reducing the look of old acne scars.
• Pigment and Vascular Lesions: Treating dark sunspots, uneven skin tones, and visible facial veins.

As a laser tattoo removal device, the Sparkling Ellman Medley functions by sending super-fast, high-energy light beams deep into the skin without burning the surrounding tissue.

How Ellman Sparkling Medley Works (The 4 Handpieces)

Instead of buying four separate machines, a doctor can plug different detachable handpieces into the main console. The system automatically recognizes each handpiece:

1. Q-Switched Nd:YAG Laser: This handpiece targets dark pigments. It is the main tool used for breaking down tattoo ink and treating dark spots or veins.
2. Erbium:YAG Laser: This laser is used for skin resurfacing. It removes outer layers of damaged skin to let smooth, new skin grow back.
3. 810nm Diode Laser: A specific wavelength built for fast and effective hair reduction.
4. Intense Pulsed Light (IPL): This piece uses broad light waves with four swappable filters. The filters change the light’s color to target acne, redness, or general aging.

Ellman Sparkling Medley Features

• Tattoo Removal
• Pigmented Lesions on Skin Types -IV
• Active Acne
• Uneven Pigmentation
• Vascular Lesions
• Hair Removal
• Superficial Skin Resurfacing
• Fine Lines and Wrinkles
• Micro-Laser Peels
• Sun Damaged Skin

Ellman Sparkling Medley – What’s In The Package

• Power cord
• Footswitch
• Remote Interlock
• Handpiece cradle
• 2 spare fuses
• Water Refill Kit
• 2 Keys

Ellman Sparkling Medley Specifications

• Erbium Yag Handpiece
• Application: Laser skin resurfacing, skin ablation and coagulation, wrinkle and scar reduction
• Energy: Up to 1000 mJ
• Max Power: 2.4 W
• Pulse Width: 300 us
• Wavelength: 2940 nm
• Beam Divergence: Collimated
• Spot Size: 1.5 to 6 mm (with zoom lens)
• NOHD: >180 m
• Repetition Rate: up to 8 pulses per second
• Controls: Touch screen LCD, Footswitch
• Cooling: Self-Contained Closed Loop
• Q-Switched Nd Yag Handpiece
• Energy: Up to 1000 mJ
• Maximum Fluence: 12 J/cm2
• Wavelength: 1064 nm and 532 nm
• Spot Size: 1.5 to 4 mm (with zoom lens)
• Pulse Width: 10 to 15 ns
• Repetition Rate: 1 to 6 Hz
• NOHD: >1000 m
• Aiming Beam: Diode (635 nm, 10 mW Max.)
• Beam Delivery: Direct
• Controls: Touch screen LCD, Footswitch
• Cooling: Self-Contained Closed Loop
• 810 nm Diode Laser Handpiece
• Application: Laser Hair Removal
• Wavelength: 810 nm
• Spot Size: 10 x 14 mm
• Repetition Rate: 1-10 Hz
• Fluence: 1 to 100 J/cm2
• NOHD: >30.1 m
• Pulse Width:Auto, 30 ms, 100 ms, 200 ms, 400 ms
• Accuracy: +- 10%
• Cooling Temperature: 0 to 5 C
• IPL Handpiece
• Indicated Uses for 4 Filters:
• 650 nm (HR) for Hair Removal
• 540 nm (SR) Filter for Skin Rejuvenation
• 510 nm (VR) Filter for Vascular & Pigmented Lesions, Melanin, Seborrheic Keratosis, & Photo Damaged Skin Lesions
• 450 nm (AR) Filter for Acne & Atrophic Acne Scars
• Maximum Fluence: 35 J/cm2
• Wavelength: 450 to 1200 nm
• Spot Size: 35 x 15 mm
• Repetition Rate: 1 Pulse every 3 seconds
• Cooling: Self-Contained Closed Loop
