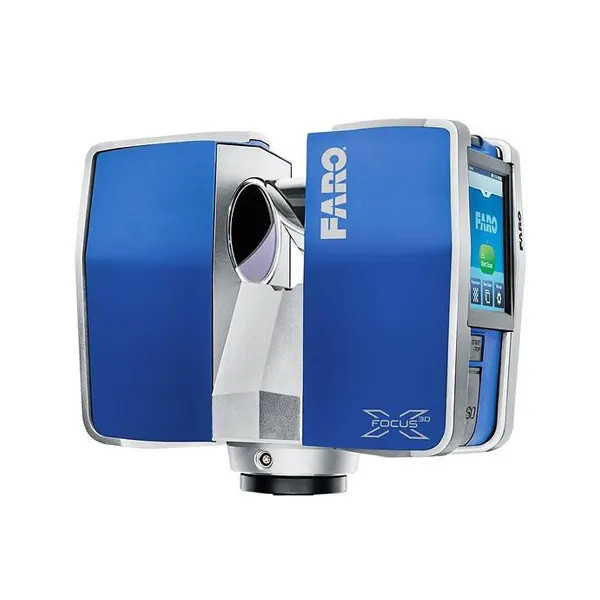

FARO Focus X 330 3D Scanner
$3,900
In Stock
- Manufacturer: FARO
- Model: Focus X 330 HDR Laser Scanner
- Included: Faro Focus3D X330 3D Laser Scanner [BC# -L/T*], AC Adapter, Battery, Battery Charger, Power Cord, User Manual On CD, Carrying Case [G]
Description
FARO Focus X 330 3D ScannerBuilding on the success of the Focus3D, the new Focus3D X 330 surpasses previous models in functionality and performance. With a range almost three times greater than previous models, the Focus3D X 330 can scan objects up to 330 meters away and in direct sunlight. With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.
FARO Focus X 330 3D Scanner quality has been increased and noise has been reduced, providing precise three dimensional models in a photo-realistic style. These advances in performance did not come at the expense of safety as the Focus3D X 330 includes a Class 1 “eye safe” laser.
The FARO Focus 3D Laser Scanner data can easily be imported into all commonly used software solutions for accident reconstruction, architecture, civil engineering, construction, forensics, industrial manufacturing and land surveying.
FARO Focus X 330 3D ScannerFeatures:
- Scanning in rough environments while providing protection from dust, debris and water splashes
- Confdent data quality through the on-site compensation
- Reality-like scan data by increased distance accuracy and angular accuracy
- Future-proof investment and expandability due to the integrated accessory bay
- Easy handling of scanner control through its large and luminous touchscreen
FARO Focus X 330 3D Scanner Included:
- Faro Focus3D X330 3D Laser Scanner [BC# -L/T*]
- AC Adapter
- Battery
- Battery Charger
- Power Cord
- User Manual On CD

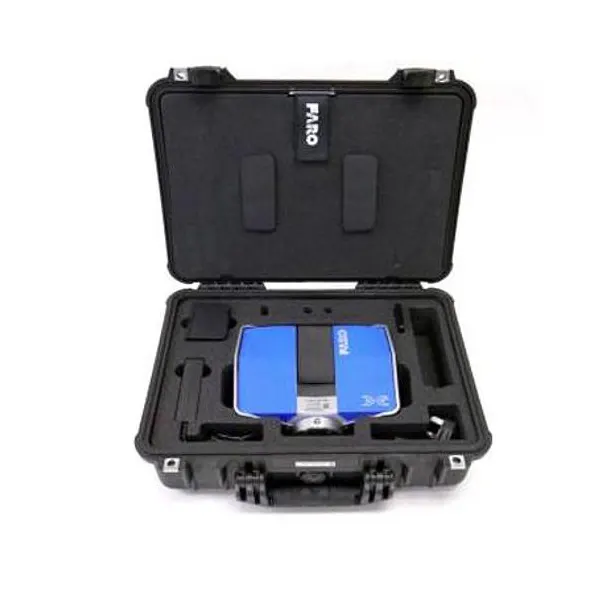

- Carrying Case [G]
FARO Focus X 330 3D ScannerSpecifications:
| Ranging unit | |
| Unambiguity interval: | By 122 till 488 Kpts/sec at 614m; by 976 Kpts/sec at 307m |
| Range Focus3D X 330: | 0,6m – 330m indoor or outdoor with upright incidence to a 90% reflective surface |
| Measurement speed (pts/sec): | 122,000 / 244,000 / 488,000 / 976,000 |
| Ranging error | ±2mm |
| Ranging noise
@ 90% refl. @ 10% refl. |
@10m @10m – noise compressed @25m @25m – noise compressed
0.3mm 0.15mm 0.3mm 0.15mm 0.4mm 0.2mm 0.5mm 0.25mm |
| Colour unit | |
| Resolution: | Up to 70 megapixel colour |
| Dynamic colour feature: | Automatic adaption of brightness |
| Parallax: | Co-axial design |
| Deflection unit | |
| Field of view (vertical/horizontal): | 300° / 360° |
| Step size (vertical/horizontal): | 0,009° (40,960 3D-Pixel on 360°) / 0,009° (40,960 3D-Pixel on 360°) |
| Max. vertical scan speed: | 5,820rpm or 97Hz |
| Laser (optical transmitter) | |
| Laser class: | Laser class 1 |
| Wavelength: | 1550nm |
| Beam divergence: | Typical 0,19mrad (0,011°) (1/e, halfangle) |
| Beam diameter at exit: | Typical 2,25mm (1/e) |
| Data handling and control | |
| Data storage: | SD, SDHC™, SDXC™; 32GB card included |
| Scanner control: | Via touchscreen display and WLAN |
| New WLAN access: | Remote control, scan visualisation are possible on mobile devices with Flash® |
| Multi-Sensor | |
| Dual axis compensator: | Levels each scan: Accuracy 0,015°; Range ± 5 |
| Height sensor: | Via an electronic barometer the height relative to a fixed point can be detected and added to a scan. |
| Compass: | The electronic compass gives the scan an orientation. A calibration feature is included. |
| GPS: | Integrated GPS receiver |
| General | |
| Power supply voltage: | 19V (external supply)
14.4V (internal battery) |
| Power consumption: | 40W and 80W (while battery charges) |
| Battery life: | 4.5 hours |
| Ambient temperature: | 5° – 40°C |
| Humidity: | Non-condensing |
| Cable connector: | Located in scanner mount |
| Weight: | 5.2kg |
| Size: | 240 x 200 x 100mm |
| Maintenance / calibration: | Annual |
