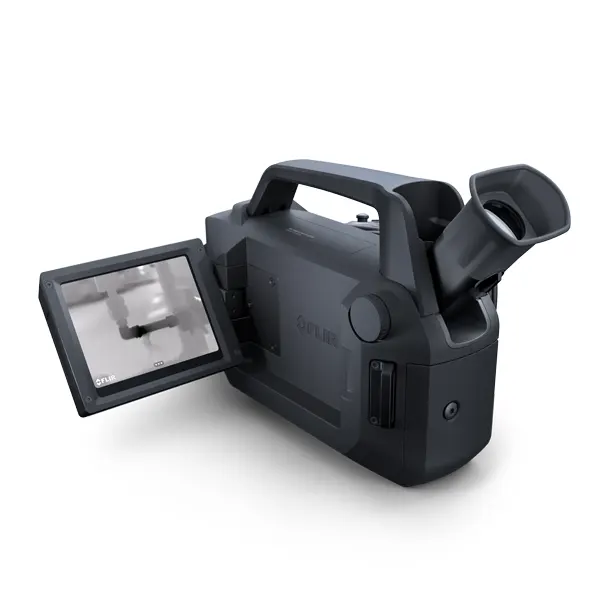

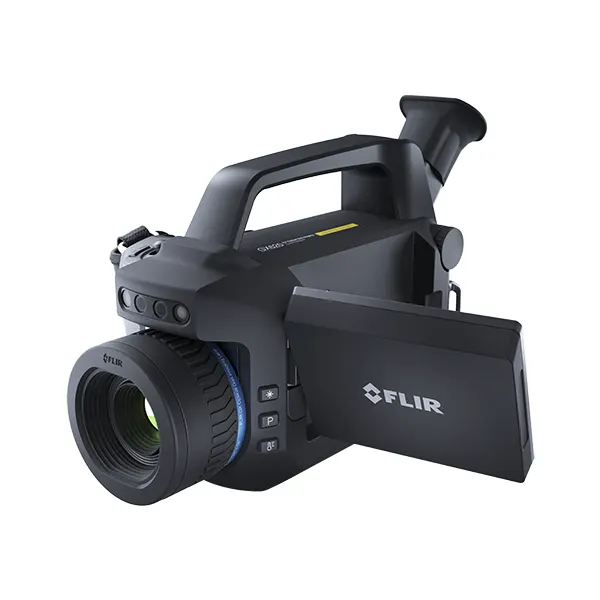

FLIR G343 Optical Gas Imaging Camera
$6,500
In Stock
- Manufacturer: FLIR
- Model: G343
- Included: Infrared camera with lens, battery (2 pcs), battery charger, power supply including multi-plugs, hand strap, neck strap, lens cap, lens cap strap, memory card, HDMI-HDMI cable, USB cable, screwdriver TX20, knob screw (optional screw for the rear cover), printed documentation, hard transport case
Description
FLIR G343 Optical Gas Imaging Camera is an innovative Optical Gas Imaging (OGI) camera used to visualize possible carbon dioxide (CO₂) gas leaks in complex systems including enhanced oil recovery, carbon capture systems, and hydrogen-cooled power generators.
Whether or not CO₂ is a byproduct of a production process or used as a trace gas, the portable, non-contact FLIR G343 Optical Gas Imaging Camera is ideal for detecting CO₂ gas leaks without interfering or shutting down large-scale manufacturing operations.
Flir G343 Optical Gas Imaging Camera Features
- Superior gas visualization: The G343 uses FLIR’s patented High-Sensitivity Mode (HSM), which makes CO₂ leaks stand out more clearly while allowing you to efficiently scan thousands of components and with 1-Touch Level/Span, you can auto-adjust the level and span of your image with a single touch
- Record and report findings efficiently: Built-in Wi-Fi and Bluetooth® allow you to connect to smartphones or tablets and effortlessly edit and store images in the cloud, or wirelessly transfer files using the included FLIR Ignite™ cloud service
- Ergonomic for comfortable operation: Comfortably operate and interact with your FLIR G343 Optical Gas Imaging Camera thanks to its rotating 10.16 cm (4 in) LCD touchscreen, which allows you view targets from any direction
Flir G343 Optical Gas Imaging Camera Contents of the Package
- Infrared camera with lens
- Battery (2 pcs)
- Battery charger
- Power supply including multi-plug
- Hand strap
- Neck strap
- Lens cap
- Lens cap strap
- Memory card
- HDMI-HDMI cable
- USB cable
- Screwdriver TX20
- Knob screw (optional screw for the rear cover)
- Printed documentation
- Hard transport case
Flir G343 Optical Gas Imaging Camera Specification
| IR Resolution | 320 × 240 thermal resolution (76,800 pixels) |
|---|---|
| Detector Pitch | 30 μm |
| Spectral Range | 4.2 µm to 4.4 µm |
| Adjustable Viewfinder | Built-in, tiltable OLED, 800 × 480 pixels |
|---|---|
| Camera f-number | 1.59 |
| Color LCD | 4″, 640 × 480 pixel rotatable, touchscreen LCD |
| Color Palettes | Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC |
| Detector Pitch | 30 μm |
| Detector Type | Focal plane array (FPA), cooled InSb |
| Display Frame Rate | 60 Hz |
| Field of View | G343 14.5°: 14.5° × 10.8° G343 24°: 24° × 18° (23 mm) |
| FLIR G343 Optical Gas Imaging Camera Focus | Auto & Manual |
| Image Modes | IR image, visual image, high sensitivity mode (HSM), noise reduction filter |
| IR Resolution | 320 × 240 thermal resolution (76,800 pixels) |
| Laser Spot | Yes |
| MPEG Video Recording | Yes |
| On Camera Display | Widescreen 800 × 480 pixel LCD, Tiltable 800 × 480 pixel OLED viewfinder |
| Radiometric IR Video | RTRR (.csq), Over UVC |
| Radiometric JPG | Yes |
| Sensor Cooling | Stirling Microcooler (FLIR MC-3) |
| Spectral Range | 4.2 µm to 4.4 µm |
| Video Recording & Streaming | H.264 to memory card |
| Zoom | 1 – 8× continuous, digital zoom |
| Packaging Size | 400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.) |
|---|---|
| Size [L x W x H ] w Lens | G343 14.5°: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in) G343 24°: 251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in) |
| Weight [incl lens & batteries] | 3 kg (6.18 lb) |
