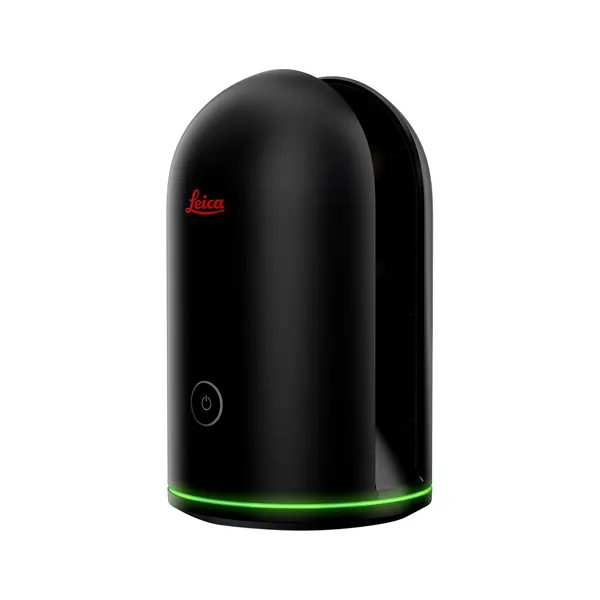

Leica BLK360 3D Laser Scanner

Leica BLK360 3D Laser Scanner captures the world around you with full-colour panoramic images overlaid on a high-accuracy point cloud. Simple to use with just the single push of one button, the Leica BLK360 3D Laser Scanner is the smallest and lightest of its kind.

Leica BLK360 3D Laser Scanner streams image and point cloud data to iPad. The app filters and registers scan data in real time. After capture, ReCap Pro enables point cloud data transfer to a number of CAD, BIM, VR and AR applications.

The integration of  Leica BLK360 3D Laser Scanner and Autodesk software dramatically streamlines the reality capture process thereby opening this technology to non-surveying individuals

Leica BLK360 3D Laser Scanner Features:

• Choice of software bundles
• Range up to 197 feet
• Accuracy 4mm at 10m / 7mm at 20m
• Horizontal field of view: 360°
• Vertical field of view: 300°
• 360,000 laser scan points per second
• Single-button control operation
• Uses 3 HDR cameras
• Utilizes AutoDesk ReCap Pro app
• Scans in under 2 minutes
• Instant data availability
• 3D modeler obtained in under 30 minutes
• 2-in-1 360° image documentation and laser scan data
• Bluetooth wireless data transfer
• Anodized aluminum construction
• Sleek matte black finish
• Height: 165 mm / Diameter: 100 mm
• Weighs 2.2 lbs
• Fits in a messenger bag
• Minimalistic aesthetic
• Gold-coated polished titanium camera mirror

Leica BLK360 3D Laser Scanner Included:

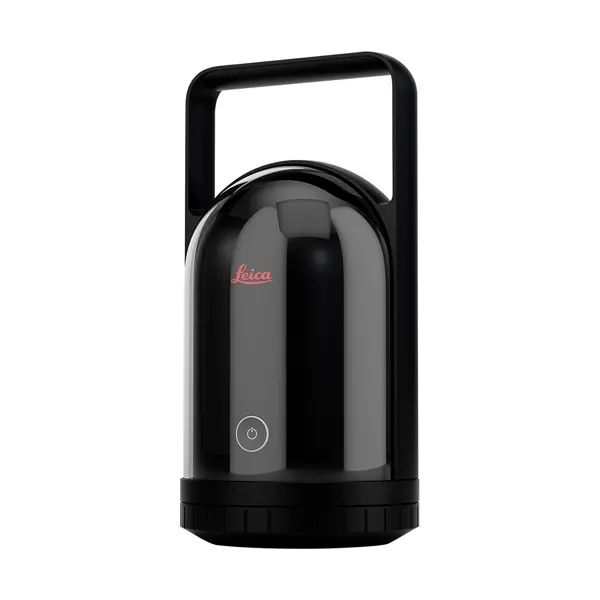

• (1) BLK360 hood
• (1) Battery charger GKL312 with AC power adapter GEV192-9
• (1) Battery GEB212 (1x)
• (1) Quick guide BLK360
• (1) Quick guide GKL312

You may also be interested in Leica RTC360 3D Laser Scanner

Leica BLK360 3D Laser Scanner Specifications:

Imaging Scanner : 3D Laser with integrated spherical imaging system and thermography panorama sensor system

Design and Physical

Housing : Black anodized aluminium

Dimensions : Height:165mm / Diameter:100mm

Weight : 1kg

Transport Cover : Hood with integrated floor stand

Mounting mechanism : Button-press quick release

Operation

Stand-alone operation : One-button operation

Remote operation : iPad app – Apple iPad Pro® 12.9”/IOS 10 or later

Wireless communication : Integrated wireless LAN (802.11 b/g/n)

Internal memory : Storage for >100 setups

Instrument orientation : Upright and upside down

Power

Battery type : Internal, rechargeable Li-Ion battery (Leica GEB121)

Capacity : Typically, >40 setups

Scanning

Distance measurement system : High speed time of flight enhanced by Waveform Digitizing (WFD) technology

Laser Calss : Class 1

Wavelength : 830nm

Field of view : 360˚ (horizontal / 300˚ (vertical)

Range : Min. 0.6 up to 60m

Point measurement rate : Up to 360,000 pts/sec

Ranging accuracy : 4mm @ 10m / 7mm @20 m

Measurement modes : 3 user selectable resolution settings

Imagining

Camera System : 15 Mpixel 3-camera system, 150Mpx full dome capture, HDR, LED flash Calibrated spherical image, 360˚x70˚

Performance

Measurement speed : <3 min for complete full dome scan, spherical image and thermal image

3D point accuracy : 6mm @ 10m /8mm @20

Environmetnal

Robustness : Designed for indoor an outdoor use

Operating temperature : +5 to +40˚c

Dust/Humidity : Solid particle/liquid ingress protection IP54 (IEC 60529)
