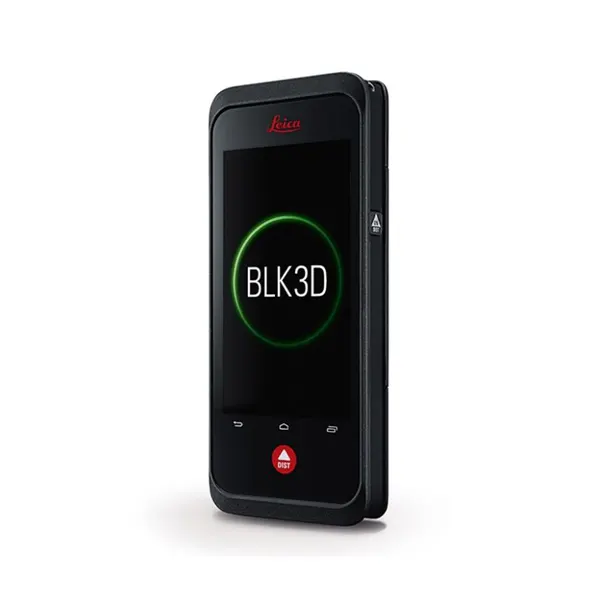

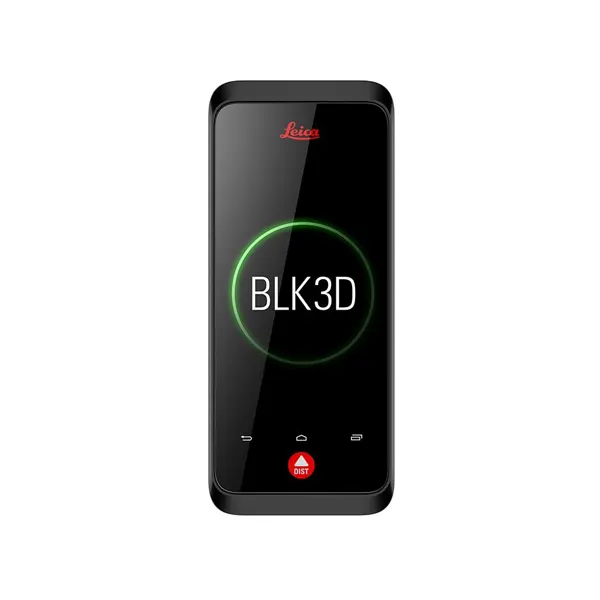

Leica BLK3D 3D Measurement

Leica BLK3D 3D Measurement is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes in-picture measurements with professional-grade accuracy in real-time possible. Every image captured is a complete and precise 3D measurement record.

Leica BLK3D 3D Measurement edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

The BLK3D combines a calibrated stereo camera, measurement sensors, software, and on-device edge detection capabilities to make in-picture measurements with professional-grade accuracy. Every image captured is a complete and precise 3D measurement record.

Leica BLK3D 3D Measurement Features:

• Informed decisions on the spot
• Capture and document existing conditions
• Increased efficiency
• Measurable photo documentation
• Capture and document existing conditions
• 3D Modeler
• Capture
• Share
• Measure

Leica BLK3D 3D Measurement Included:

• BLK3D portable photogrammetry tool
• AC power adapter
• Battery
• Neck strap

Leica BLK3D 3D Measurement Specifications:

Design & Physical Dimensions

• Material: Black anodized aluminium
• Dimensions: 180mm x 77mm x 27mm
• Weight: 480g
• Connector: USB-C
• Display: 5’’ HD IPS Capacitive Touch Display
• P2P Support: Quick Mount on Leica DST 360

Power

• Battery Type: Swappable, rechargeable Li-Ion battery
• Capacity: 14 Wh
• Charging: via USB-C connector or external charger

Environmental

• Robustness: Designed for any construction site
• Operating Temperature: -10°- +50°C

Imaging

• Camera: 2 x 10MP with 80°Field of View
• Algorithms: Advanced SGM algorithmic on-board (GPU) + EDM, Structure from Motion (SFM) algorithmic for poses and orientation

Operating System & Processors

• Operating System: Android 7 (Nougat) with GMS certification
• CPU: Qualcomm Snapdragon 820E (Quad Core @ 2.35 GHz)
• Storage: 64G
• RAM : 4GB
• Communication: WLAN (5GHz), Bluetooth 4.1 and 2.1

Performance

• Measurement Speed: <1 sec
• Range: up to 20m (imaging); 250m (Electronic Laser Distance Measurement)
