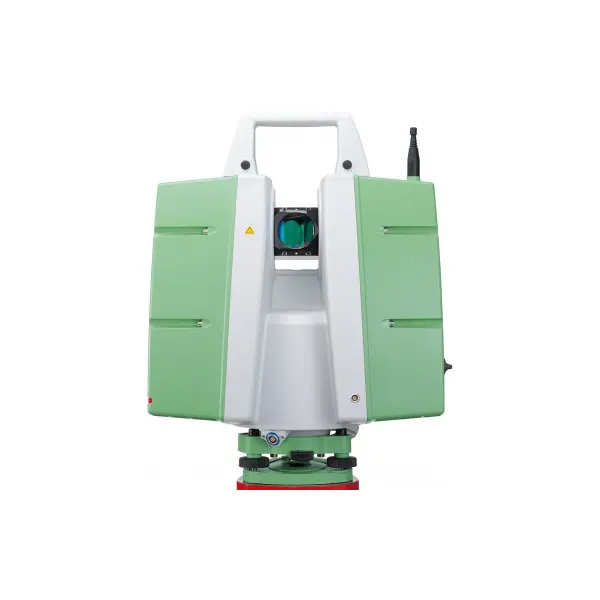

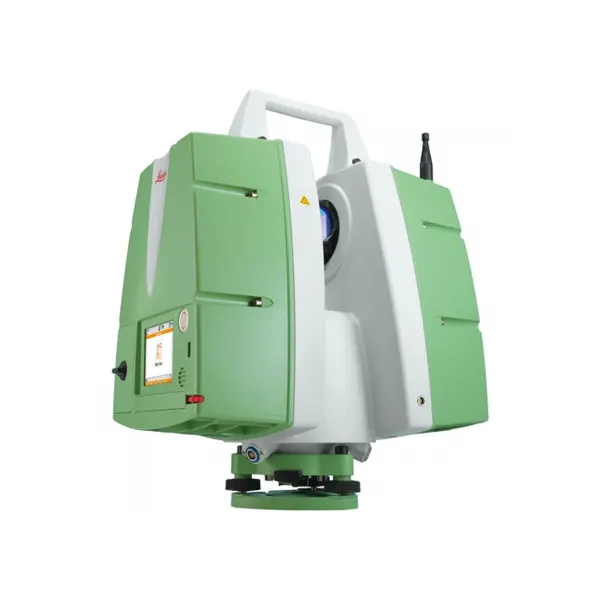

Leica ScanStation P16 3D Laser Scanner
$10,000
In Stock
- Manufacturer: Leica
- Model: ScanStation P16 3D Laser Scanner
- Included: 1x Leica ScanStation P16 3D Laser Scanner, 4x Leica GEB242 Li-Ion Batteries, 1x Leica GEV228 Ethernet Cable, 1x Leica GKL341 Battery Charger w/ Power Supply, 1x Hard Transport Case
Description
Leica ScanStation P16 3D Laser Scanner is the best entry level 3D laser scanning machine, Its low cost of owernship and easy to use interface make this scanner a solution that even non-surveying users can use for all short range applications up to 40m.
Leica ScanStation P16 3D Laser Scanner touch screen interface is intuitive and user friendly. Featuring a one-touch scan button and wizard style software this guarantees easier workflow and enables the user to check data faster in the field. Featuring remote control by WLAN, any handheld device can operate the P16.
Leica ScanStation P16 3D Laser Scanner Being cost effective coupled with reliable support from Leica results in a low cost of ownership and makes the P16 the perfect solution for entry level teams just starting out in the 3D Laser Scanning field.
Leica ScanStation P16 3D Laser Scanner Features:
- Easy-to-use
- Value for money
- Reduced downtime
- Complete scanning solution
Leica ScanStation P16 3D Laser Scanner Included:
- 1x Leica ScanStation P16 3D Laser Scanner
- 4x Leica GEB242 Li-Ion Batteries
- 1x Leica GEV228 Ethernet Cable
- 1x Leica GKL341 Battery Charger w/ Power Supply
- 1x Hard Transport Case
You may also be interested in Leica BLK2GO Handheld Laser Scanner
Leica ScanStation P16 3D Laser Scanner Specifications:
| System Accuracy | |
| Accuracy of single measurement | Range accuracy: 1.2mm + 10ppm over full range
Angular accuracy: 8″ horizontal; 8″ vertical 3D position accuracy: 3mm at 40m |
| Target acquisition | Up to 40m in post-processing software |
| Dual-axis compensator | Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1″, dynamic range ±5′, accuracy 1.5″ |
| Distance Measurement System | |
| Type | Ultra-high speed time-of-flight enhanced by Waveform Digitizing (WFD) technology |
| Wavelength | 1550nm (invisible) / 658nm (visible) |
| Laser class | 1 (in accordance with IEC 60825:2014) |
| Beam divergence | <0.23mrad (FWHM, full angle) |
| Beam diameter at front window | ≤ 3.5mm (FWHM) |
| Range and reflectivity | Up to 40m; 18% reflectivity (minimum range 0.4m) |
| Scan rate | Up to 1’000’000 points per second |
| Range noise | 0.4mm rms at 10m
0.5mm rms at 40m |
| Field-of-View | Horizontal: 360°
Vertical: 270° |
| Data storage capacity | 256GB internal solid-state drive (SSD) or external USB device |
| Communications/ Data transfer | Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device |
| Onboard display | Touchscreen control with stylus, full color VGA graphic display (640×480 pixels) |
| Laser plummet | Laser class 1 (IEC 60825:2014)
Centering accuracy: 1.5mm at 1.5m Laser dot diameter: 2.5mm at 1.5m Selectable ON/OFF |
| Imaging System | |
| Internal camera | Resolution:
Pixel size: Video: White balancing: HDR: |
| External camera | Canon EOS 60D and 70D supported |
