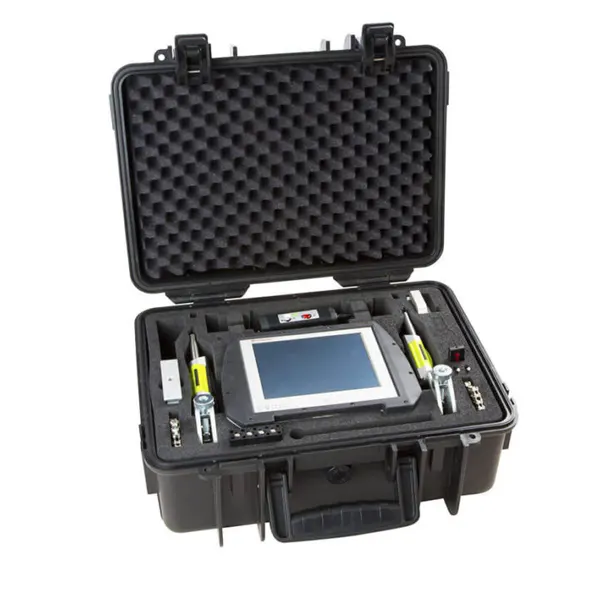

FixturLaser NXA Pro Shaft Alignment System
$2,500
In Stock
- Manufacturer: FixturLaser
- Model: NXA Pro
- Included: Display unit, 2 pcs of digital smart sensors, 2 pcs of complete V-brackets, 2 pcs of magnetic V-brackets, 2 pcs of chains 8 mm 60 links, Rod kit, Extension fixture, 49 mm, Magnetic base, Tape measure 5 m, 2 pcs of angled universal tools, USB stick, Charger for display unit and sensors, NXA manual – English version
Description
FixturLaser NXA Pro Shaft Alignment System is holding the aggregate of more than 30 years of inno- vation in laser-based shaft alignment. FixturLaser NXA Pro Shaft Alignment System Intelligence ensures every maintenance professionals’ job is easier to do and the best finished results are achieved.
FixturLaser NXA Pro Shaft Alignment System comes with an adaptive user interface that guides you throughout the measurement and alignment of your machines. FixturLaser NXA Pro Shaft Alignment System smart sensors we have developed include the largest detectors on the market, enhancing the measurement performance to an industry-first level.
FixturLaser NXA Pro Shaft Alignment System Features:
- Horizontal Shaft Alignment
- Machine Train Alignment
- FIXTURLASER Offset
- Target Values
- Hot Check
- Text Editor
- Softcheck ROP
- MaxMin ROP
- Vertical Shaft Alignment
- FIXTURLASER OL2R
- Softcheck
- Sensor Display
- Target Values Clock
- Machine-Defined Data
- Sensor Display ROP
- Sensor Display Level
FixturLaser NXA Pro Shaft Alignment System Specifications:
| Weight including all standard parts | 7,7 kg (17 lbs) |
| Storage temp | -20 to 70°C ( -4 to 158°F) |
| Long term storage temp | Room temp. 18 to 28°C (64 to 82°F) |
| Case | |
| Material | High Impact ABS Plastic |
| Weight (empty) | 2,5 kg (5,5 lbs) |
| Environmental protection | Dust-, Water- (5m), Air-tight with air pressure compensation valve |
| Drop test (empty) | 3m onto concrete floor |
| Storage Temp(empty) | -40 to +80 °C |
| Dimension | 415 mm x 325 mm x 180 mm (16 in x 13 in x 7 in) |
| FixturLaser NXA Pro Shaft Alignment Display Unit |
|
| Housing Material | Brushed Anodized Aluminum frame and high impact ABS plastic overmolded with TPE rubber |
| Operating Temp | -10 to 50°C ( 14 to 122°F) |
| Battery Charging Temp, system off | 0 to 38°C ( 32 to 100°F) |
| Battery Charging Temp, system on | 0 to 32°C ( 32 to 90°F) |
| Storage Temp | -20 to 70°C ( -4 to 158°F) |
| Long term storage temp | Room temp. 18 to 28°C (64 to 82°F) |
| Relative humidity | 10 – 90% |
| Weight | 1,2 kg (2,6 lbs) with battery |
| Dimensions | 124mm x 158mm x 49mm (4,9 in x 6,2 in x x 1,9 in) |
| Environmental protection | IP 65 (Dust-tight and protected against water jets) |
| Processor | 1 GHz Dual-core main processor with ultra low power core for instant power management |
| RAM memory | 256 Mb |
| Flash storage memory | 8 Gb
>100 000 measurements |
| FixturLaser NXA Pro Shaft Alignment Display | Colour Reality Display, TFT-LCD backlit, sunlight-readable, with wide-angle viewing technology |
| Display size | 6,5” (165mm) diagonal (133 x 100 mm) |
| Display resolution | Full VGA 640×480 pixels |
| Color depth | 262 000 colors |
| Interface | 6,5” High Impact Polyester laminated touch screen with enhanced transmission and reduced glare |
| Gyroscope | 6-Axis MEMS Inertial Motion Sensor with drift compensation and automatic field calibration. |
| Peripherals – User accessible | 1 USB 2.0 Master port (IP 67)
1 Power/Charger connector 10-14V DC (IP 67) |
| Peripherals – Distributor accessible | 1 Ethernet 10/100BaseT RJ45
1 HDMI port (DVI compatible) 1 Service port |
| Wireless communication | Class I Bluetooth transmitter with multi-drop capability |
| Power supply | High performance, High-Temperature rechargeable Li-Ion battery or external power supply |
| Operating time | 10 hours continuous use (with 50% LCD backlight) |
| Battery Charging time (system off, room temperature) | 5 h |
| Xpress Battery Charging time (system off, room temperature) | 1 h charge – 5 hours operating time |
| LED indicators | Unit state and 2×5 battery state indicators with instant battery check |
| Digital Laser Sensors |
|
| Housing Material: | Anodized Aluminum frame and high impact ABS plastic overmolded with TPE rubber |
| Operating Temp: | -10 to 50°C (14 to 122°F) |
| Storage Temp: | -20 to 70°C ( -4 to 158°F) |
| Long term storage temp: | Room temp. 18 to 28°C (64 to 82°F) |
| Battery Charging Temp: | 0 to 40°C ( 32 to 104°F) |
| Relative humidity: | 10 – 90% |
| Weight: | 192 g (6,8 oz) with battery |
| FixturLaser NXA Pro Shaft Alignment Dimensions: | 92 mm x 77 mm x 33 mm
(3,6 in x 3,0 in x 1,3 in) |
| Environmental protection: | IP 65 (Dust-tight and protected against water jets) |
| Laser | 650 nm class II diode laser |
| Laser line fan angle | 6° |
| Laser line width (1/e2) | 1.6 mm |
| Laser line divergence (full angle) | 0.25 mrad |
| Laser power | < 1 mW |
| Measurement distance | Up to 10m |
| Detector | 2nd gen. digital sensor |
| Detector length | 30mm ( 1,2 in ) |
| Detector angular subtense | 30mrad/m (3mm/100mm per meter) |
| Detector resolution | 1 µm |
| Measurement accuracy | 0,3% ± 7 µm |
| Signal processing: | Digital signal processing with Sidespot rejection, edge detection, ambient light elimination, and anti-vibration mode |
| Ambient light protection | Optical filtering and digital ambient light signal elimination |
| Inclinometer: | Dual High-Performance MEMS inclinometers |
| Inclinometer resolution | 0,01° |
| Inclinometer accuracy | ±0,2° |
| Gyroscope | 6-Axis MEMS Inertial Motion Sensor with drift compensation and automatic field calibration |
| Gyroscope accuracy | ±1° |
| Total measurement axis’s (M3+S3 unit) | 14 |
| Wireless communication: | Class I Bluetooth transmitter |
| Communication range | 10 m (33 ft) |
| Peripherals – User accessible | 1 USB Mini port (IP 67);
Charging: 5V, 0,5A Communication: with separate USB/RS 485 adapter cable |
| FixturLaser NXA Pro Shaft Alignment Power supply | High-performance Li-Ion battery or external power. |
| Operating time: | 17 hours continuous use (measuring) |
| Battery Charging time (system off, room temperature) | 8 h |
| LED indicators | Unit state, laser transmission and 5 battery status indicators with instant battery check |
| Laser safety* | |
| Shaft brackets |
|
| Fixture: | V-fixture with non-twisting chain, width 20 mm (0,79 in) |
| Material: | Anodized aluminum |
| Shaft diameter: | Ø 25-175 mm (1”-6.9”)
Ø 25-450 mm (1”-18”) (with extension chains) |
| Rods: | 4 pcs 100 mm (3,9 in) and
4 pcs 150 mm (5,9 in) Extendable to 250 mm (9,8 in) |
