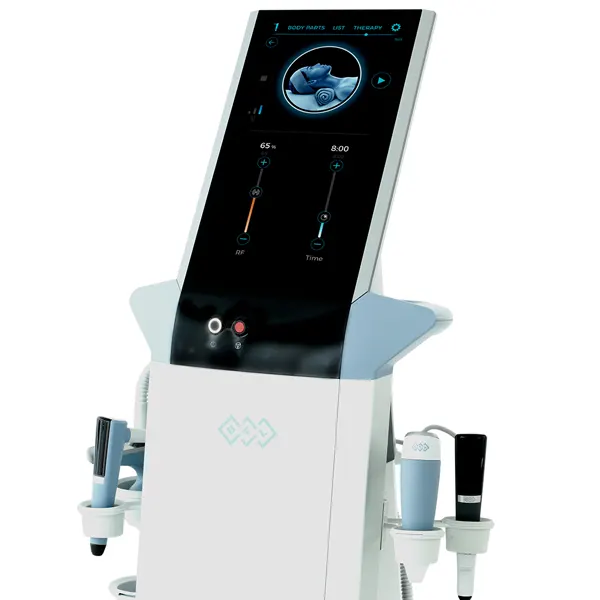

BTL Exion Medical Aesthetic Workstation

BTL Exion is a next-generation, multi-applicator medical-aesthetic workstation developed by BTL Aesthetics. It is FDA-cleared and designed to address skin rejuvenation, skin tightening, localized fat reduction, and intimate wellness.

The primary technological breakthrough of the BTL Aesthetics Exion is its ability to naturally boost hyaluronic acid production by 224% without needles, alongside significant increases in collagen (47%) and elastin (50%).

BTL Exion Handpieces

• Exion Clear RF (Smart Microablation for Skin Perfection)

Smart Microablation Technology
BTL Exion Clear RF’s intelligent system ensures consistent and uniform microablation customized for each skin. This quick laser-like procedure provides smoother, more even-toned skin with minimal downtime, avoiding the complications of traditional laser treatments.

key benefits:

1. SMART LASER-LIKE PROCEDURE
2. MINIMAL DOWNTIME
3. QUICK & EASY TREATMENT

• Exion Fractional RF (Breakthrough Microneedling RF)

Subdermal Remodelling Beyond the Needles
Extended mode delivers RF energy beyond the needle tips for deeper tissue penetration, minimizing discomfort traditionally associated with such treatments.

key benefits:

1. 2% PATIENTS FOUND THE TREATMENT COMFORTABLE*
2. SINGLE-PASS PROCEDURE
3. FACE & BODY SOLUTION

• Exion Face (Hyaluronic Acid Naturally)

Dual Energy Delivery
The patented technology treats the entire dermis, applying thermal and mechanical stress to fibroblasts, while the synergy of targeted ultrasound and monopolar RF boosts natural synthesis of hyaluronic acid.

key benefits:

1. TWO MODALITIES SIMULTANEOUSLY
2. 224% NATURAL INCREASE IN HYALURONIC ACID

• Exion Body (Skin & Localized Fat)

One Handpiece, Two Applications:

1. Skin Laxity Improvement
   Patented combination of Monopolar Radiofrequency and targeted ultrasound addresses production of hyaluronic acid, collagen & elastin to treat skin laxity on the body.
2. Localized Fat Reduction
   As Fat Reduction system, active cooling protects the skin and allows for increasing the temperature in the fat tissue to levels leading to fat cell apoptosis.

Key benefits:

1. 85% IMPROVEMENT IN SKIN LAXITY
2. 22% LOCALIZED FAT REDUCTION

• Emfemme 360 (The Shortest Intimate RF Treatment) key benefits:

1. SHORT & EASY 8‑MIN TREATMENT
2. 83% WOMEN HAVE PAIN-FREE SEX POST-TREATMENT
3. 94% IMPROVEMENT OF VAGINAL MATURATION INDEX

BTL Exion Key Clinical Advantages

• AI-Driven Precision: The BTL aesthetics BTL Exion system actively monitors tissue impedance in real-time, automatically adjusting energy outputs so the clinician never delivers too much or too little heat.
• Less Pain, More Gain: Because of the ultrasound mechanical stress and the fractional RF extended mode, patients bypass the mechanical pain loops standard in traditional aesthetic lasers and needles.
• High Treatment Versatility: A single machine base can treat up to 23 distinct zones across the entire body.

BTL Exion Specifications

General Workstation Specifications:

• Touchscreen Interface: 15.6-inch (39.6 cm) high-definition color LCD touchscreen.
• Operating System: Powered by BTL AI-Driven Impedance Intelligence (real-time feedback looping at several hundred checks per second).
• Power Requirements: 100–240 V AC, 50–60 Hz (universal auto-switching power supply).
• BTL Exion System Weight: Approximately 45 kg (99 lbs) including the rolling chassis cart.

Exion Fractional RF (Microneedling):

• Radiofrequency Mode: Monopolar Fractional RF.
• RF Frequency: 1 MHz.
• Maximum Power Output: Up to 50 Watts.
• Maximum Target Depth: Up to 7.5 mm total penetration (combining a 3.5 mm physical insulated/uninsulated needle pin depth + a 4.0 mm thermal energy projection in “Extended Mode”).
• Tip Configurations: Single-use disposable tips featuring ultra-thin gold-plated microneedles.

Exion Face & Body Applicator:

• Dual Energy Technology: Simultaneous delivery of Monopolar Radiofrequency and Targeted Ultrasound (TUS) through a single emitter.
• RF Operational Frequency: 4 MHz.
• Ultrasound Frequency Profile: High-frequency therapeutic mechanical waves tuned specifically to stimulate deeper fibroblastic layers.
• Cooling System (Body Handpiece Only): Built-in thermoelectric contact skin cooling, adjustable to protect the epidermis while targeting subcutaneous fat layers.

Emfemme 360 (Intimate Health):

• Energy Modality: Volumetric Monopolar Radiofrequency.
• Energy Distribution: 360-degree homogeneous, continuous heating profile.
• Treatment Duration: Hardcoded efficient 8-minute auto-timer protocol.
• Safety Sensing: Real-time automatic power shut-off if skin contact is broken.
